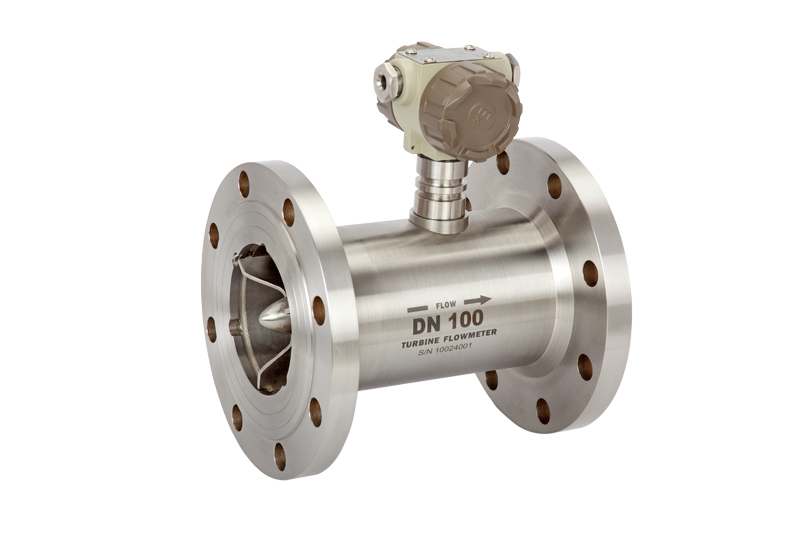

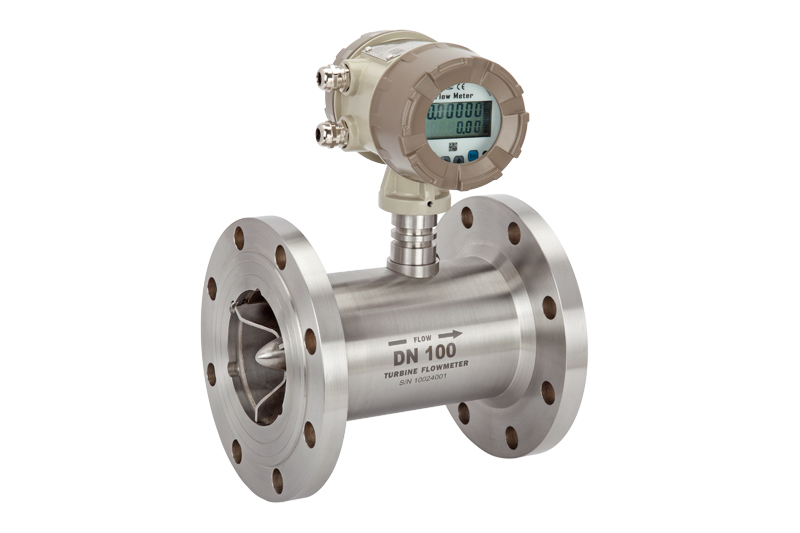

Turbine Flowmeter
This turbine flowmeter measures water or pure water within a diameter range of 4mm-200mm. It features a SS304 body material with LCD display, 4-20mA/pulse and RS485 output.
Technical Specifications
Product Overview
Precision Turbine Flow Measurement
This turbine flowmeter is a high-accuracy instrument engineered for reliable flow rate monitoring across diverse industrial applications. Utilizing a robust rotor mechanism that rotates proportionally to fluid velocity, it provides precise measurement of clean liquids including water, chemicals, and petroleum products. Designed for durability in harsh environments, it features corrosion-resistant construction and versatile signal output options for seamless control system integration.
Operational Specifications
- Operating Temperature
- -20°C to +110°C
Electrical & Connectivity
Power Supply & Output Types
| Model Type | Power Supply | Output |
|---|---|---|
| LWGY-N | 12-24V DC | Pulse Output |
| LWGY-A | 24V DC | 2-wire 4-20 mA |
| LWGY-B | 3.2V Lithium Battery | None |
| LWGY-C | 24V DC | 4-20mA, RS485 or HART |
Battery Performance
3 Years
Battery Life
10 AH
Battery Capacity
Compliance & Options
- Optional Features
- Explosion ProofField DisplayRS485 CommunicationHART Protocol
