Tunnel Gantry Crane for Rail Transit
This tunnel gantry crane is designed for subway track-laying and other rail transit engineering tasks. It can operate independently or in tandem with another unit to lay 25m tracks.
Technical Specifications
Product Overview
Tunnel Gantry Crane Solution

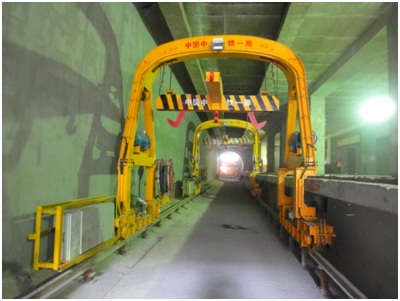

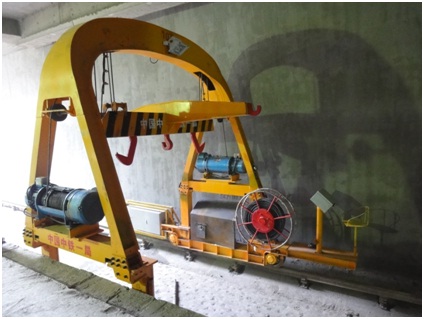

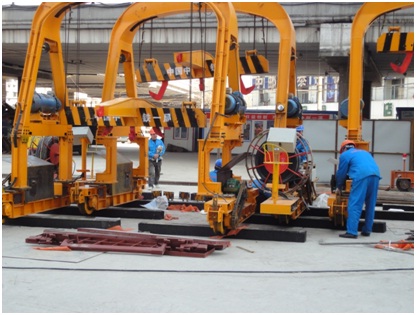

The DP10 Tunnel Gantry Crane is a specialized lifting and transport solution engineered specifically for rail transit construction within tunnel environments. Designed for versatility, this unit can operate independently or in tandem with another machine to facilitate 25m track laying. Its robust, compact design is optimized for confined spaces, featuring advanced speed regulation and reliable braking systems for safe operation on steep ramps.
Technical Specifications
Operational Capabilities
- Independent or tandem operation
- Supports 25m track laying
- Material shifting and transfer
- Variable frequency speed regulation
- Safety & Control
- Hydraulic braking50‰ Ramp braking capabilityCable drum power supplyEmergency stop mechanismsLoad limiters
Design & Construction
Key Design Features
25 m
Track Laying Capacity
50 ‰
Max Ramp Grade
Construction Details
- Compact dimensions for subway restrictions
- Rail-mounted system
- Dual-hook lifting system
- Gantry structure for tunnel width spanning
