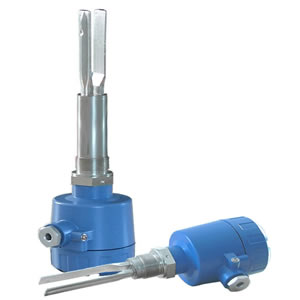

Tuning Fork Level Switch
This level switch accurately detects levels even in difficult conditions, including turbulence and foam. The tuning fork design ensures reliable point level detection in liquids and solids.
Technical Specifications
Overview
Reliable Level Detection
The Tuning Fork Level Switch provides precise and reliable point level detection for a wide variety of liquids and solids. Designed to be virtually unaffected by the physical or chemical properties of the medium, it ensures consistent performance in diverse industrial settings. With a robust construction and adjustable sensitivity, this switch is an ideal, cost-effective solution for monitoring tanks, silos, and hoppers.
Technical Specifications
Output Delay
- 0.3s
- 1s (factory standard)
- 3s
- 10s
- 30s
Relay Output Ratings
220 V
AC Voltage
5 A
AC Current
28 V
DC Voltage
10 A
DC Current
- Power Supply
- DC 24VAC 220V
- Power Consumption
- 1.5 W
Operating Conditions
Operating Temperatures
| Environment | Range |
|---|---|
| Working Temperature | -40 to 150°C |
| Environment Temperature | -20 to 70°C |
- Max Process Pressure
- 2 MPa
- Minimum Material Density
- 0.6 g/cm³
Installation & Compliance
Protection Rating
IP65
Process Connection
- 1" NPT thread (standard)
- BSPT (optional)
- Flange installation (optional)
- Explosion-Proof Grade
- Ex d Ⅱ CT4
- Electrical Interface
- G1/2" (female)
