Product Overview
Professional Tile Ridge Cap Solution

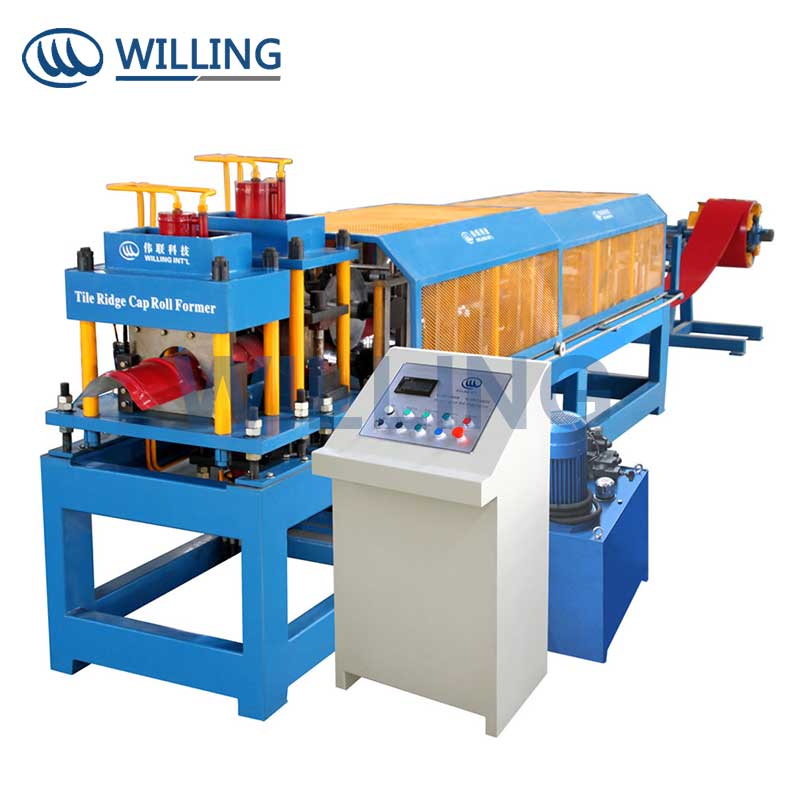

The Tile Ridge Cap Forming Machine is a robust, automated production solution designed for high-precision manufacturing of various ridge cap profiles. It features a complete workflow from uncoiling to automated shearing, ensuring consistent output for construction materials. Engineered with a PLC-based control system and heavy-duty components, this machine provides the efficiency required for modern industrial metal roofing production.
Technical Specifications
- Max Forming Speed
- 15 m/min
- Compatible Sheet Thickness
- 0.7 mm
- Yield Stress
- 300 Mpa
- Total Weight
- 3000 kg
Performance Metrics
Power Requirements
4 KW
Main Motor Power
3 KW
Hydraulic Motor Power
7 KW
Total Power
System Configuration
Included Components
- Uncoiler and base
- Infeed guides
- Fixed position driven forming stations
- Shearing device
- Hydraulic station
- PLC control console
Technical Configuration
| Parameter | Detail |
|---|---|
| Roller Material | 45# steel with chrome |
| Drive Type | Chain transmission |
| Hydraulic Pressure | 12 Mpa |
| Controller | PLC with Touch Screen |
Capabilities
- Supported Profiles
- Straight Ridge CapStep Tile Ridge Cap
