Glazed Tile Roof Sheet Forming Machine

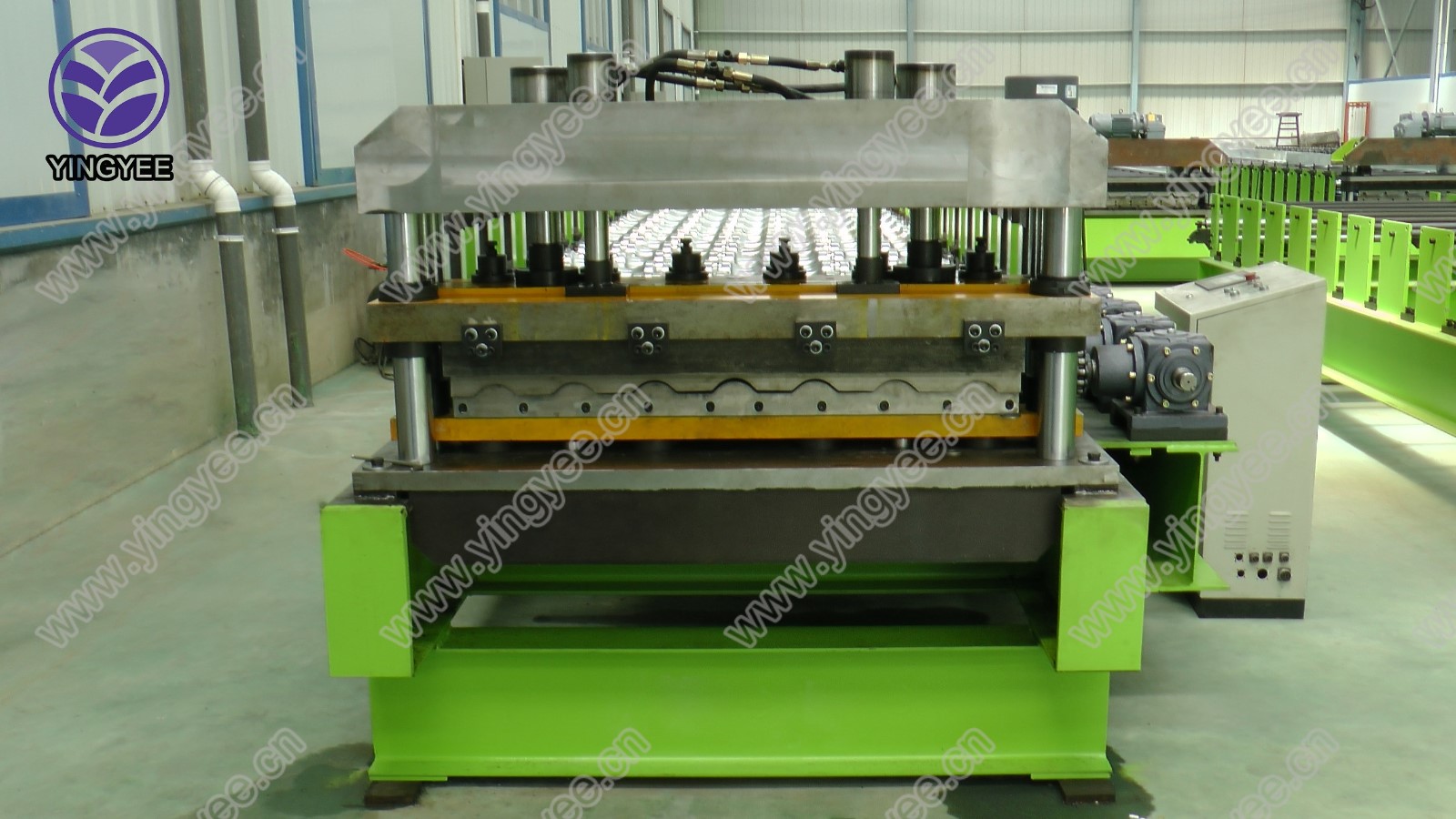

This machine is designed for efficient and precise manufacturing of glazed roofing tiles. It features multiple forming stations and a hydraulic pressing system to ensure consistent tile profiles.
Technical Specifications
Overview
High-Efficiency Glazed Tile Production
This industrial roll forming machine is engineered for the precise manufacturing of glazed tile roof sheets. Featuring a robust steel frame and a sophisticated hydraulic pressing system, it ensures consistent, high-quality profiles for various roofing applications. The integrated automated control system allows for streamlined operation and precise parameter adjustments, making it an ideal solution for high-volume production environments.
Technical Specifications
Production Speed
3 m/min
Speed
- Material Thickness Range
- 0.8 mm
- Cutting Tolerance
- 10m ± 1.5mm
Mechanical Components

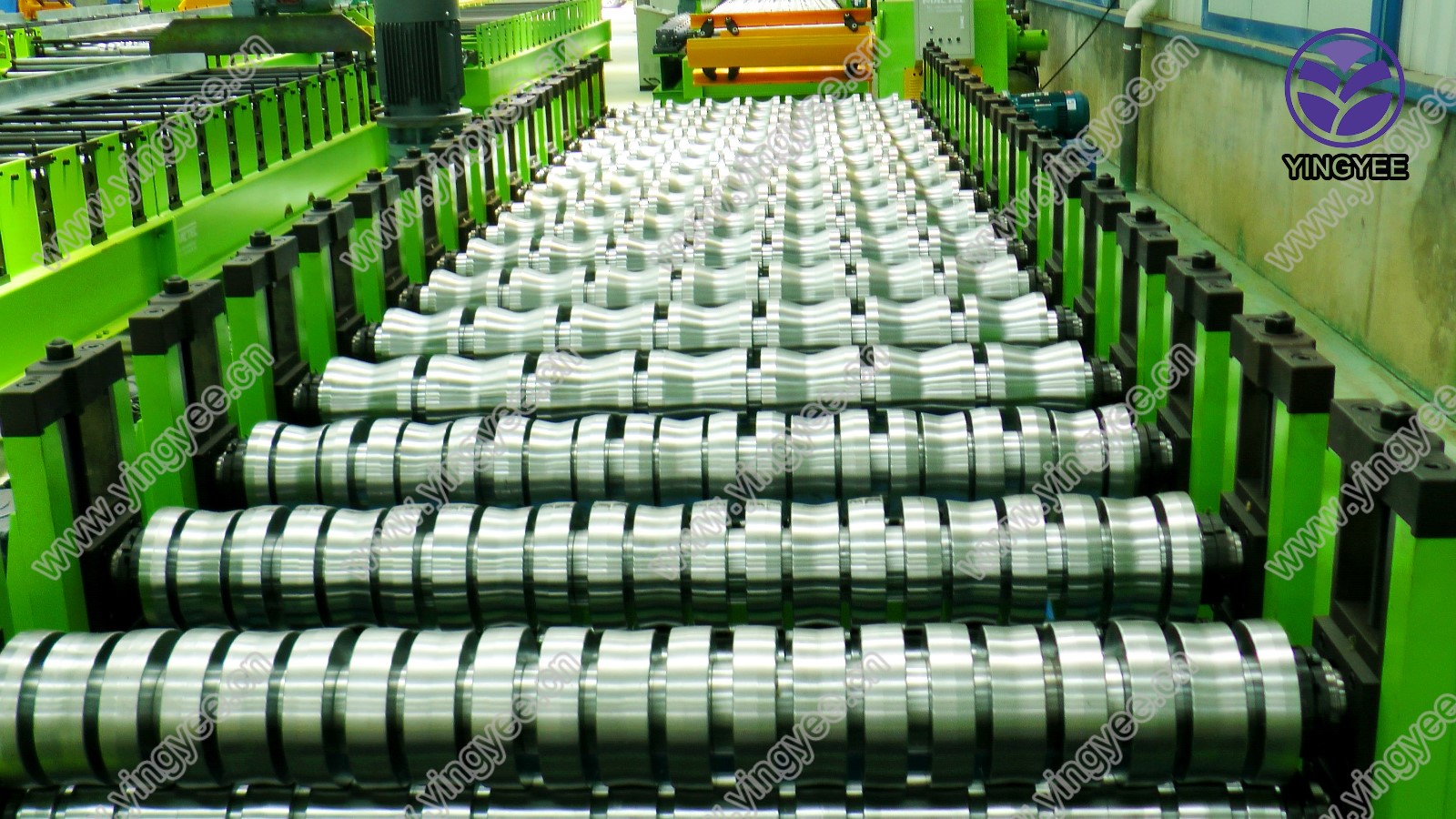

- Quantity of Rollers
- 14
- Roller Material
- 45# steel with chrome plating
- Shaft Specifications
- 75mm diameter, 45# forged steel
- Cutter Blade Material
- Cr12 mould steel (quenched 58-62°C)
Power & Control
Drive Mechanism
ChainGearbox
- Main Motor Power
- 5.5 kW
- Hydraulic Station Power
- 4 kW
- Control System
- PLC
Construction
- Machine Body Frame
- 350H Steel
