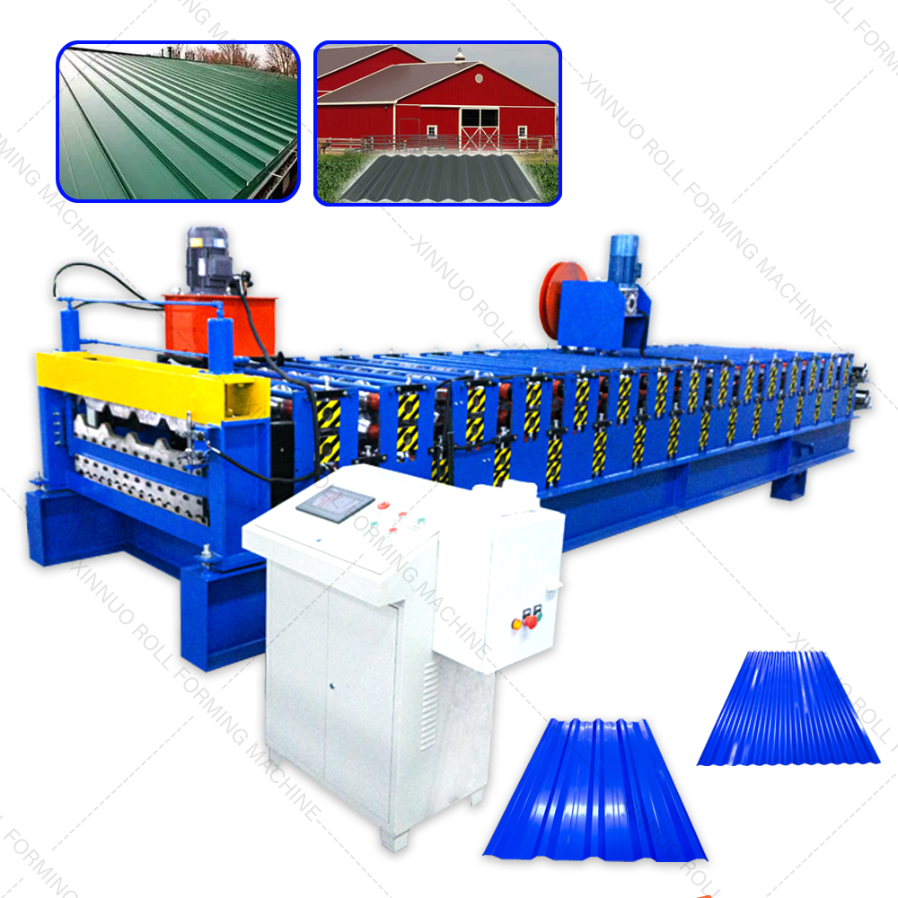

Double Layer Metal Sheet Roll Forming Machine
This double layer roll forming machine forms two sections, optimizing limited site areas. It combines two models of devices into one for efficient product transformation and improved output.
Technical Specifications
Product Overview
High-Efficiency Double Layer Roll Forming
This double layer roll forming machine is designed to maximize production efficiency by combining two forming models into a single, space-saving unit. It allows for rapid product transformation and shorter plate replacement times, significantly improving output rates for wall panels and tiles. Ideal for limited site areas, it provides a versatile and affordable solution for high-volume metal sheet manufacturing.
Key Performance Metrics
Key Performance Metrics
5,000 kg
Un-coiler Capacity
5.5 kW
Main Motor Power
4 kW
Hydraulic Power
1,220 mm
Max Feeding Width

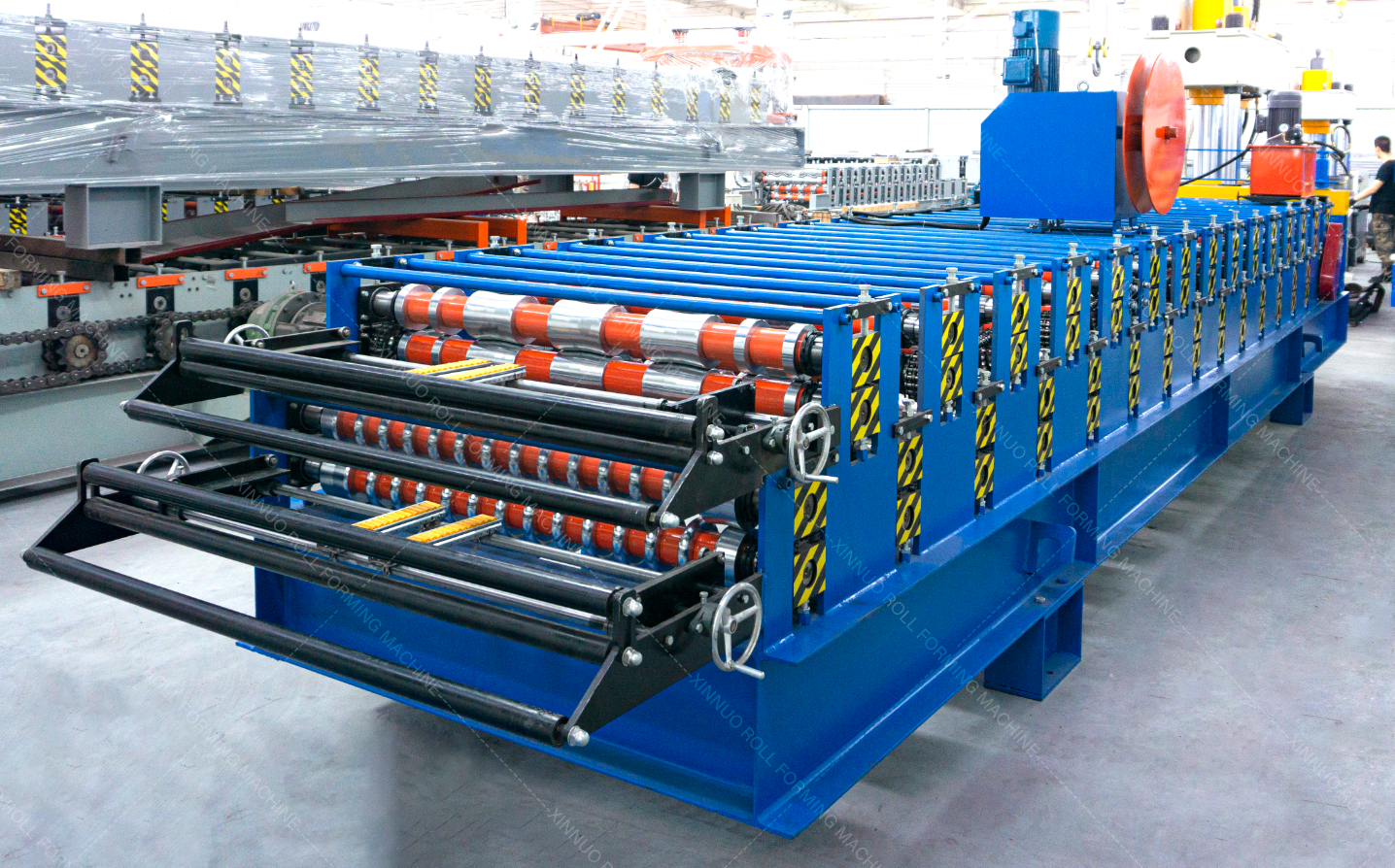

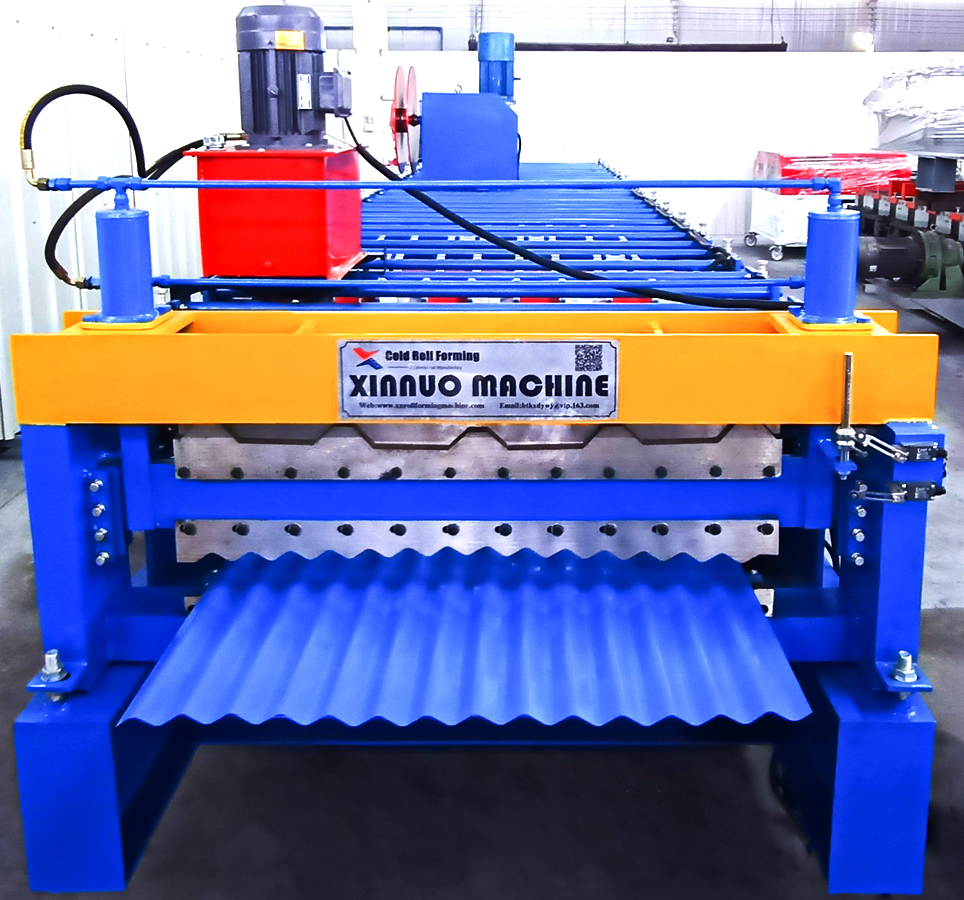

Main Forming System
Forming Specifications
| Feature | Specification |
|---|---|
| Product Width | 1000 mm & 1020 mm |
| Sheet Thickness | 0.2 - 1.0 mm |
| Roller Material | C45 Steel |
| Shaft Diameter | 95 mm (Upper & Down) |
| Forming Stations | 12 Stations (Upper & Down) |
| Base Frame | 360 H steel welded |

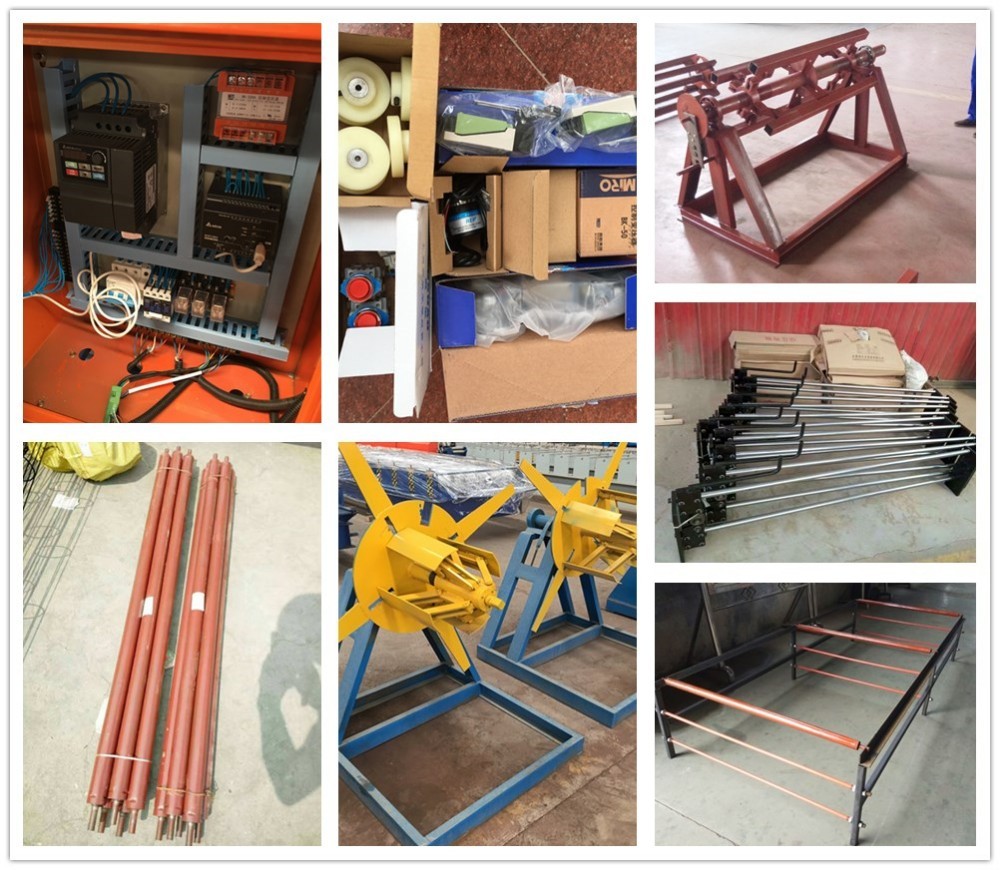

Processing Workflow
Production Flow
- Manual decoiler
- Material feeding
- Roll forming
- Length measurement
- Hydraulic cutting
- Finished product output

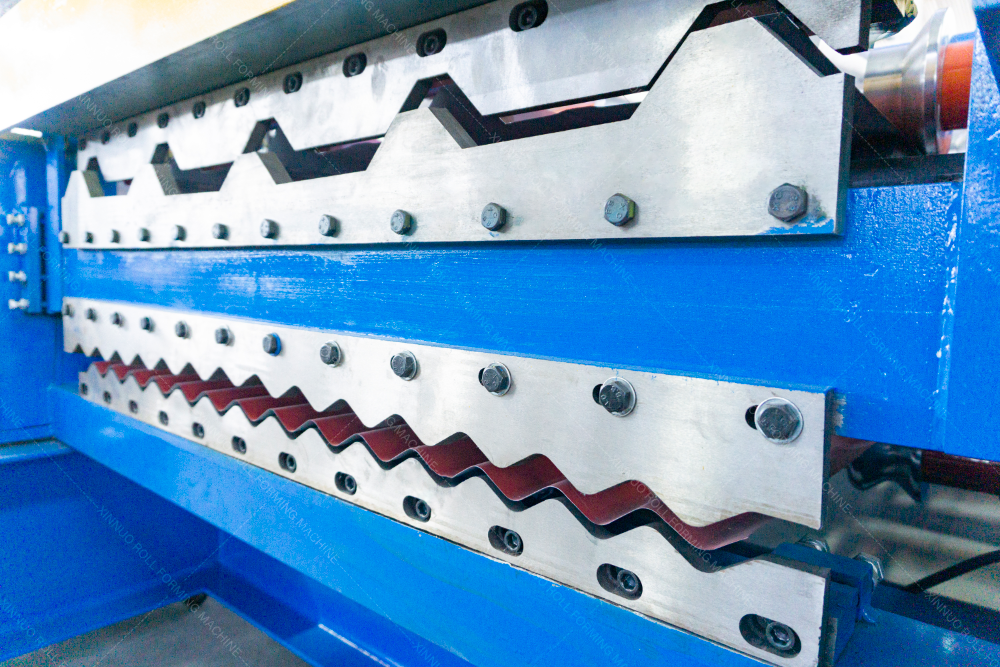

Hydraulic Cutting System
Cutting Details
| Component | Details |
|---|---|
| Cutting Method | Pause to cut |
| Blade Material | CR12 with heat treatment |
| Blade Hardness | HRC60-62 |
| Pump Station | 1 set included |
Electrical Control
- Control System
- HMI & PLC Control Panel
- Power Supply
- 440V 50Hz (Customizable per local requirement)
Material Compatibility
- Compatible Materials
- Galvanized SteelAluminumPre-painted SteelColor Steel
Certifications
Compliance & Quality
ISO 9001:2015EN 60204-1:2018CE Compliant
Un-coiler & Leveling
- Inner Diameter of Coil
- 400-600 mm
- Leveling Features
- Adjustable width to ensure material level and straightness
