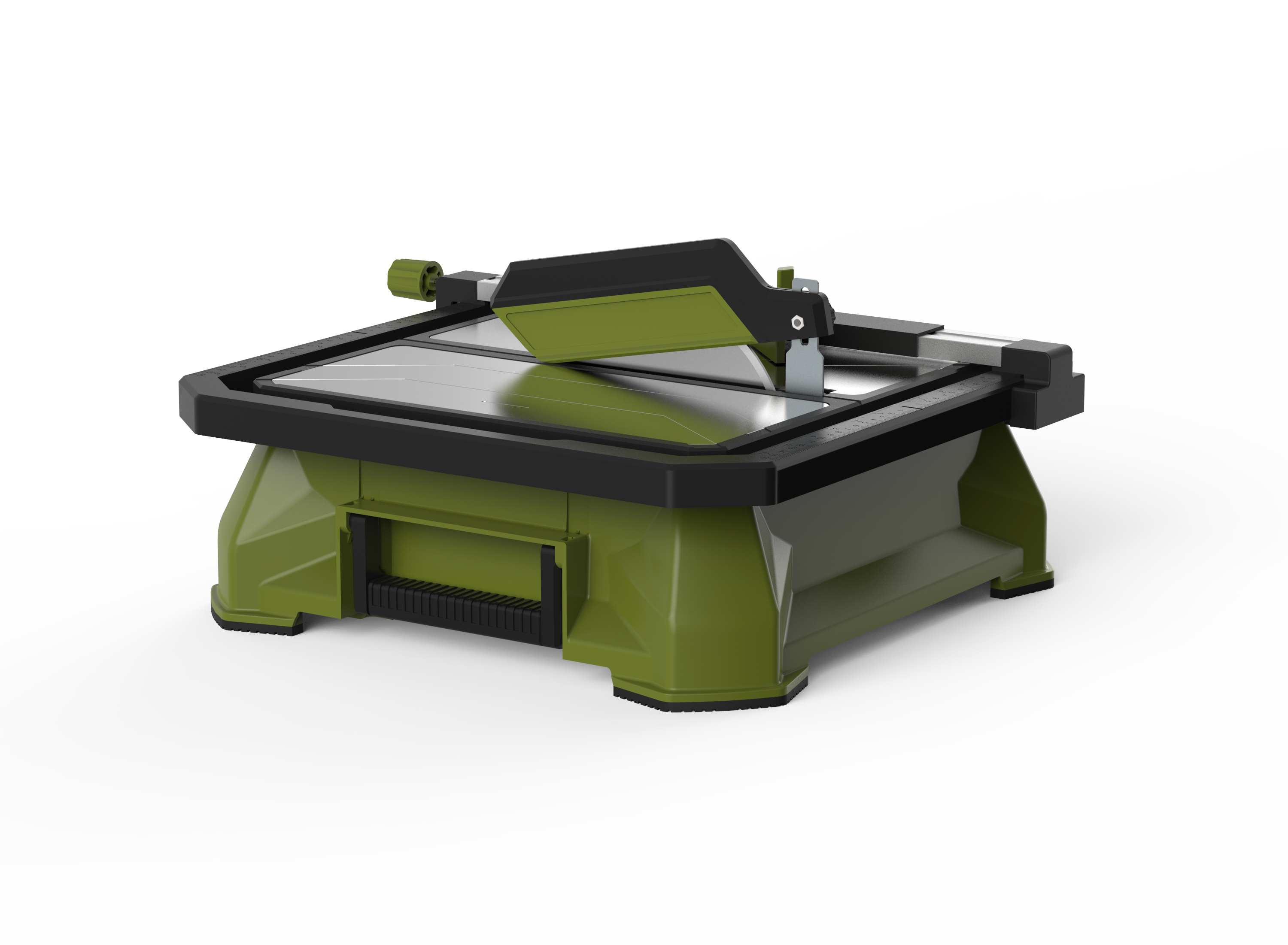

Tile Cutting Machine
This tile cutter is a specialized power tool designed for precisely cutting tiles. It is equipped with a diamond blade and a water bath to keep the blade cool and reduce dust.
Technical Specifications
Overview
Professional Tile Cutting Precision
This electric tile cutting machine is engineered for high-precision ceramic and porcelain tile processing. Equipped with a 650W motor and an integrated water cooling system, it ensures clean, dust-free cuts while maintaining blade longevity. Designed with a robust stainless steel table and adjustable angle capabilities, it offers the stability required for both professional workshops and demanding site projects.
Technical Specifications
Performance Metrics
650 W
Input Power
2,950 /min
No-load Speed
- Electrical Requirements
- 230V, 50Hz
Cutting Capability
Cutting Depth Table
| Angle | Max Depth |
|---|---|
| 0° | 46mm |
| 45° | 30mm |
- Blade Size
- φ180 × φ22.2 × 2.2mm
Physical Properties
Weight
7.9 kg
Net Weight
8.8 kg
Gross Weight
- Main Table Size
- 345 × 345mm (Stainless Steel)
Logistics
Container Load Capacity
- 20GP: 800 pcs
- 40GP: 1580 pcs
- 40HQ: 1890 pcs
