Technical Specifications
Product Overview

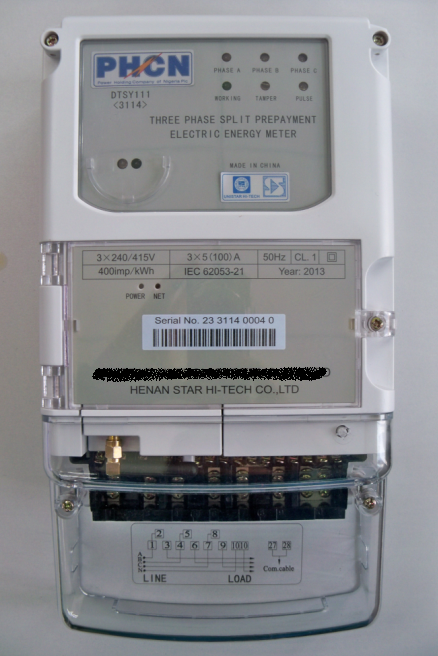

Three-Phase Split Prepayment Metering Solution

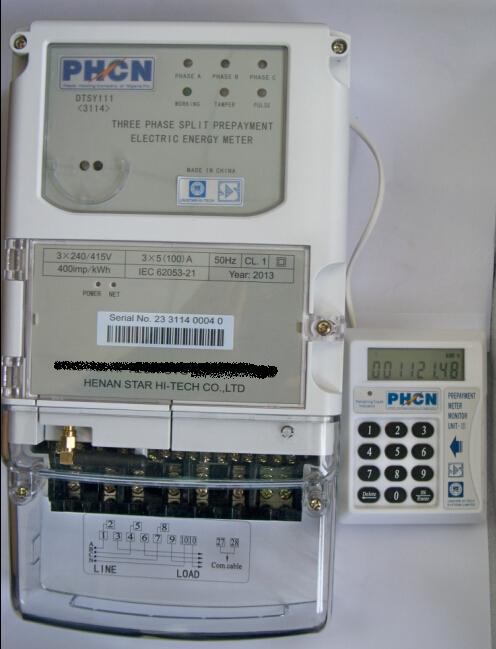

The DTSY111 is a robust three-phase split prepayment electric energy meter engineered for both residential and commercial applications. This system features a remote monitor unit with a digital interface and keypad for seamless customer interaction and recharge code entry. Built for high accuracy and security, it ensures reliable energy management for utilities.
Technical Specifications
Core Electrical Metrics
415 V
Rated Voltage
100 A
Max Current
50 Hz
Frequency
- Accuracy Class
- Class 1
- Impulse Rate
- 400 imp/kWh
Compliance and Standards
- International Standards
- IEC 62053-21
System Features
Status Indicators
- Phase A
- Phase B
- Phase C
- Working Status
- Tamper Detection
- Pulse Output
Meter Configuration
Three-PhaseSplit PrepaymentDigital Display
