Three Phase Smart Energy Meter with LCD Display
This three-phase smart energy meter is equipped with a large LCD display for convenient on-site data viewing. It supports multi-tariff functionality and real-time data transmission to a master station.
Technical Specifications
Product Overview
Smart Energy Management

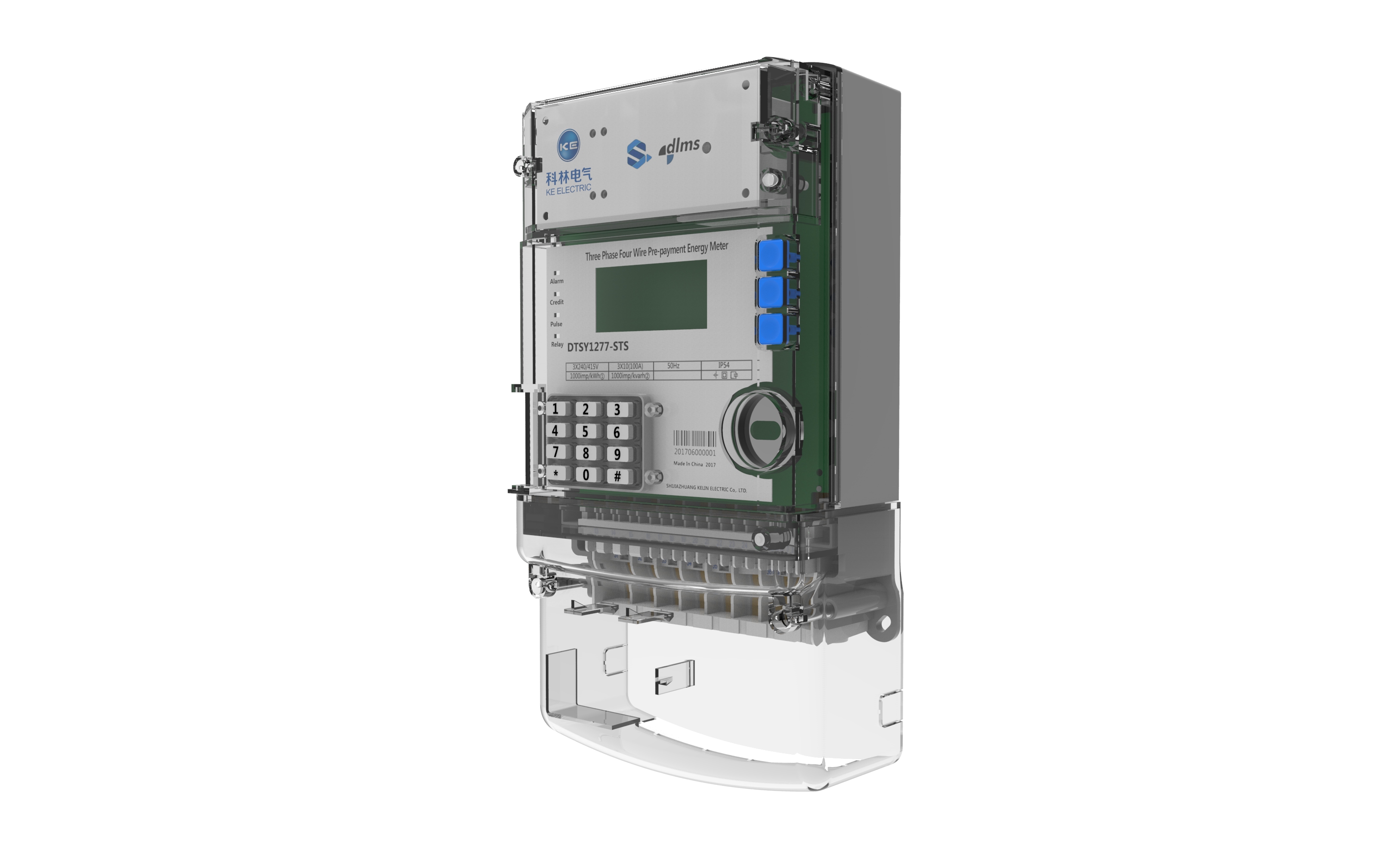

The DTZY1277 is an advanced three-phase, four-wire smart energy meter designed for high-precision utility monitoring. Featuring a large-size LCD display and an integrated keypad, it allows for seamless on-site energy data inquiry and management. With built-in network connectivity and large-capacity historical data storage, it provides real-time reporting to master stations and ensures full traceability of power consumption for both residential and industrial applications.
Electrical Specifications
Nominal Voltage
400 V
Nominal Voltage
Current Range
5 A
Nominal Current
100 A
Maximum Current
20 mA
Starting Current
Accuracy Class
| Energy Type | Class |
|---|---|
| Active Energy | Class 1 |
| Reactive Energy | Class 2 |
System Compatibility
- Compliance Standards
- IEC62052-11IEC62053-21IEC62053-23IEC62056-21IEC62056-41IEC62056-61
Operational Conditions
Internal Power Consumption
- Voltage Circuit: ≤2W (or 10VA)
- Current Circuit: ≤1VA
- Operating Temperature
- -40°C to +70°C
