Three-Phase Multifunction Ethernet Panel Meter

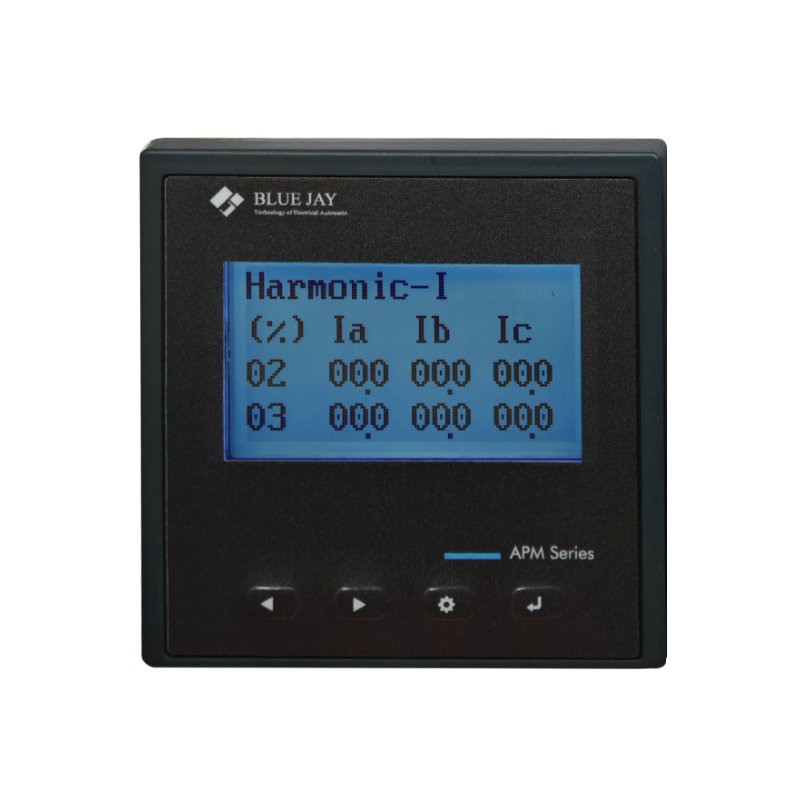

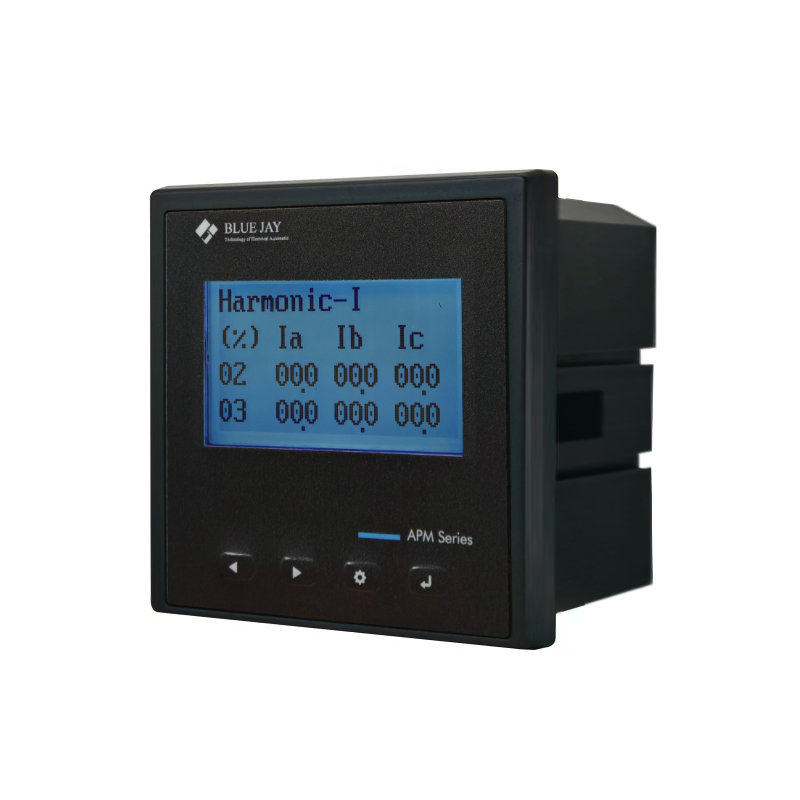

This three-phase multifunction meter is a smart power monitoring device with high precision. It features direct access keys, a backlit LCD display, and advanced measurement parameters such as individual harmonic readings.
Technical Specifications
Overview
High-Performance Power Monitoring
The APM-96J is a high-end multifunction power meter designed for precise monitoring and measurement of three-phase power systems. It replaces multiple traditional analog instruments, improving system reliability while simplifying on-site wiring and reducing overall costs. With advanced harmonic analysis and event logging, it provides a comprehensive solution for distributed detection, automatic control systems, and online monitoring.
Measurement Capabilities
- Measured Parameters
- VoltageCurrentFrequencyActive PowerReactive PowerApparent PowerEnergyPower FactorHarmonicsTHD
- Accuracy Class
- 0.2
- Current Input Range
- .../5 or .../1 A
Technical Specifications
Communication Protocols
- RS-485 Modbus/RTU
- Ethernet (TCP)
- Power Supply
- 85-265VAC/DC
- Display
- Backlit LCD
Advanced Features
Advanced Electrical Metrics
Max DemandUnbalanceCrest FactorK-Factor
- Event Logging Capacity
- 50 events
- Harmonic Analysis
- 2nd to 31st order
Connectivity & Expansion
Expansion Modules
| Interface Type | Configuration |
|---|---|
| Relay Output (DO) | 2-channel |
| Switch Input (DI) | 4-channel |
| Analog Output (AO) | 2-channel |
| Pulse Output (PO) | 2-channel |
