Three-Phase Multi-Circuit Energy Meter
The MCM263T branch circuit power meter is a high-performance energy measurement device designed for industrial systems or equipment. This multi-circuit energy meter takes measurements from 6 channels of three-phase circuits or 18 channels of single-phase circuits.
Technical Specifications
Overview
High-Density Multi-Circuit Metering

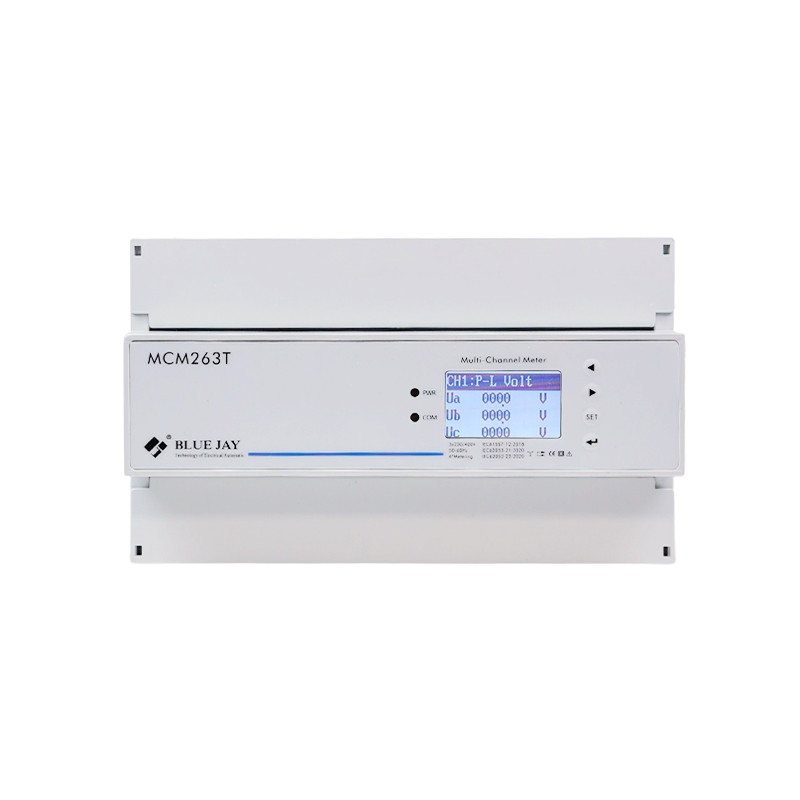

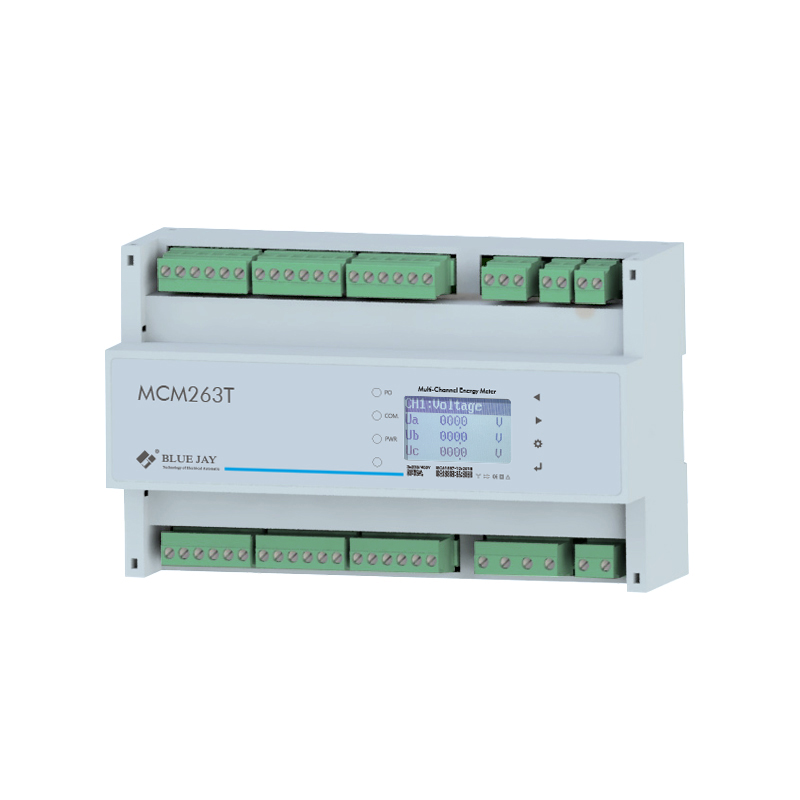

The MCM263T is a compact, high-performance energy metering solution capable of integrating up to six three-phase energy meters in a single unit. Designed for commercial and industrial electrical management, it features independent MCU processing for high-accuracy billing and supports both 3P3W and 3P4W configurations. Its space-saving design and DIN rail mounting make it an ideal choice for complex building energy metering projects where hardware footprint must be minimized.
Technical Specifications
Metering Capabilities
- 6 channels three-phase metering
- Supports 3P3W and 3P4W configurations
- Class 0.2/0.5 basic parameter accuracy
- Class 0.5 active energy accuracy
Measurement Range
9,999 A
Current Measurement Range
520 VAC
Voltage Measurement Range (L-L)
I/O Ports
| Port Type | Quantity |
|---|---|
| Digital Input (DI) | 6 |
| Digital Output (DO) | 2 |
Connectivity
Supported Baud Rates
- 4,800
- 9,600
- 12,800
- 19,200
- Communication
- RS-485MODBUS-RTU
Physical & Power
- Mounting Type
- Standard 35mm DIN rail (13 module width)
- Auxiliary Power Supply
- 85~265 VAC/DC ± 10%
- Display
- 1.6 inch dot matrix LCD
