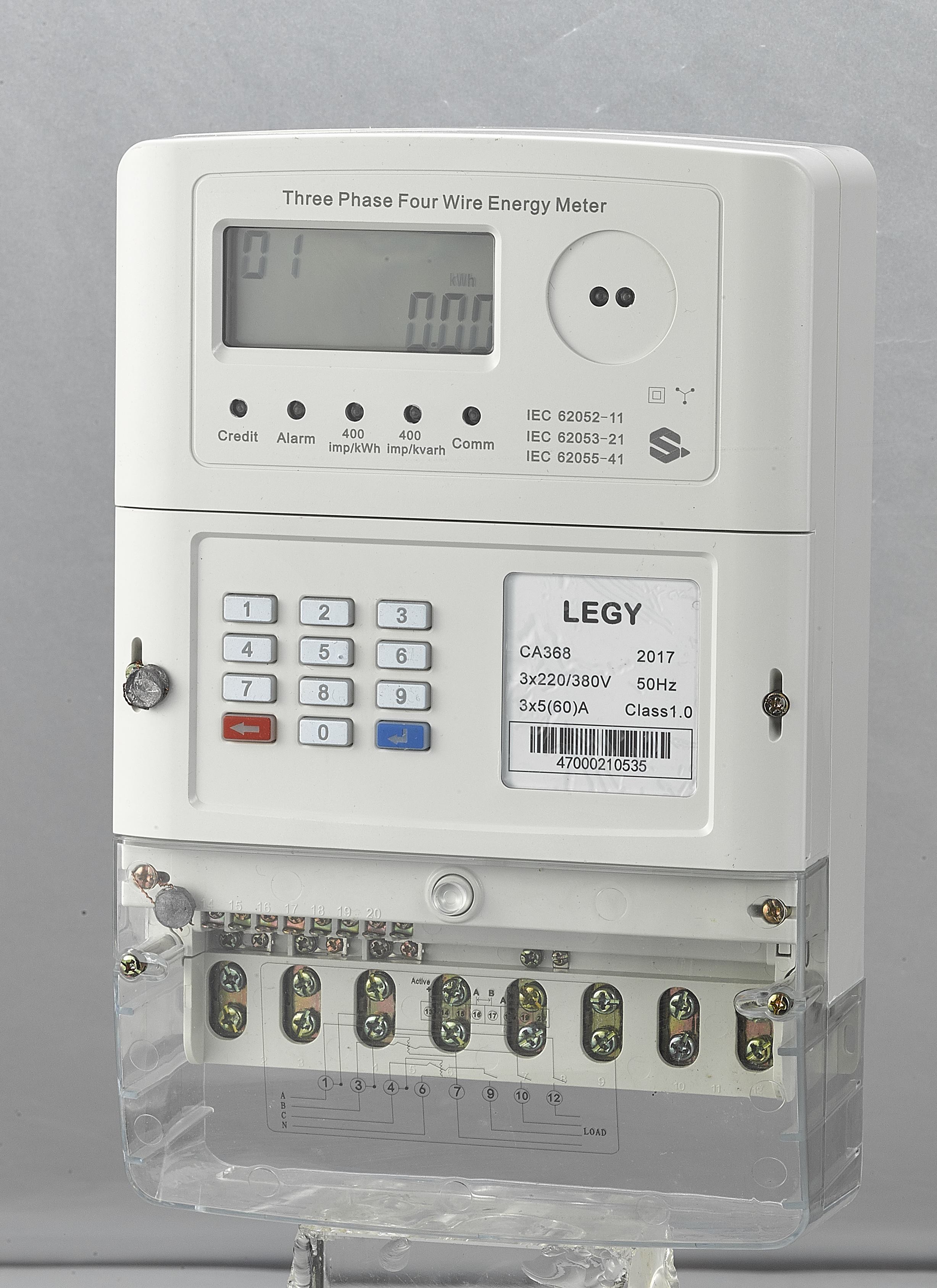

Three-Phase Keypad Prepayment Energy Meter
This three-phase, four-wire energy meter is designed for prepayment applications. It features a keypad interface for entering recharge tokens and programming parameters.
Technical Specifications
Product Overview
Professional Prepayment Energy Solution
This three-phase, four-wire prepayment energy meter is engineered for precise electricity monitoring and management in professional B2B environments. It incorporates a user-friendly keypad interface for seamless token entry and credit management. Compliant with international IEC standards, it provides high-accuracy energy measurement and reliable operation for commercial and industrial applications.
Technical Specifications
Impulse Rate
400 imp/kWh
Active Energy
400 imp/kvarh
Reactive Energy
- Voltage Rating
- 380 V
- Current Range
- 3x5(60)A
- Operating Frequency
- 50 Hz
- Accuracy Class
- Class 1.0
Compliance and Standards
- IEC Standards
- IEC 62052-11IEC 62053-21IEC 62055-41
Display and Monitoring
System Indicators
- Credit Status
- Alarm Indicator
- Communication Status
- Total Units Counter
- Total Recharge Counter
- Current Credit Register
