Technical Specifications
Product Overview
Advanced Prepayment Metering

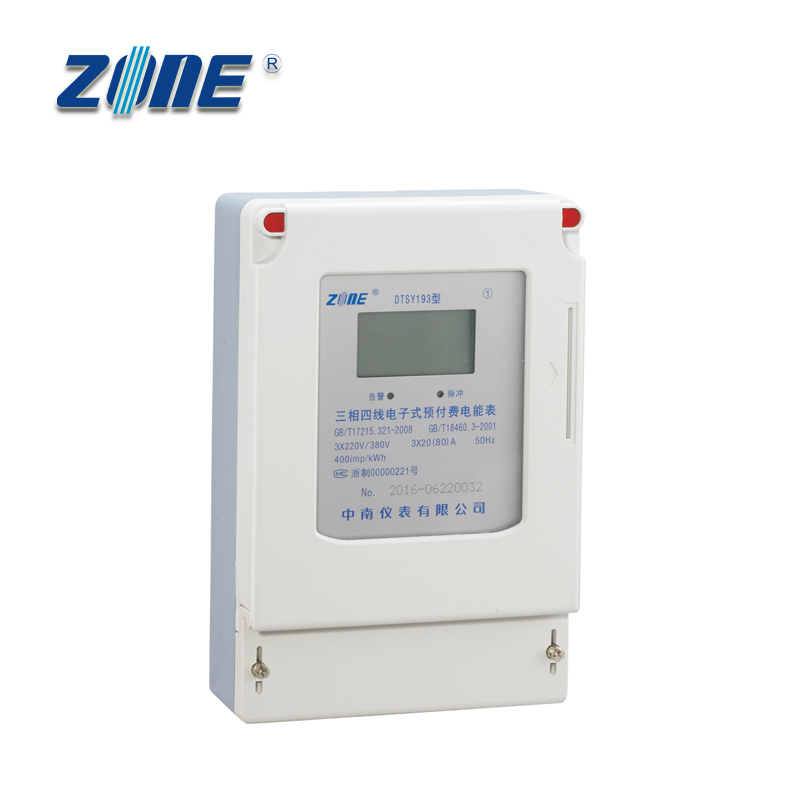

The DTSY193 is a high-precision three-phase four-wire electronic energy meter designed to modernize power consumption management. By implementing a prepayment system, it significantly enhances collection efficiency for utility providers while reducing labor costs. This robust device supports accurate measurement of both positive and negative active power, ensuring reliable performance across residential and commercial applications.
Technical Specifications
Accuracy Class
Class 1Class 2
Available Current Ratings
- 1.5(6)A
- 3(6)A
- 5(20)A
- 5(30)A
- 10(40)A
- 10(60)A
- 15(60)A
- 15(90)A
- 20(80)A
- Compliance Standards
- GB/T 17215.321GB/T 18460.3
- Rated Voltage
- 3x220V/380V
- Reference Frequency
- 50 Hz
Operating Environment
Operating Temperature
| Condition | Range |
|---|---|
| Specified | -25°C to +55°C |
| Limiting | -40°C to +70°C |
Operating Voltage Range
0.9 Un
Specified Min
1.1 Un
Specified Max

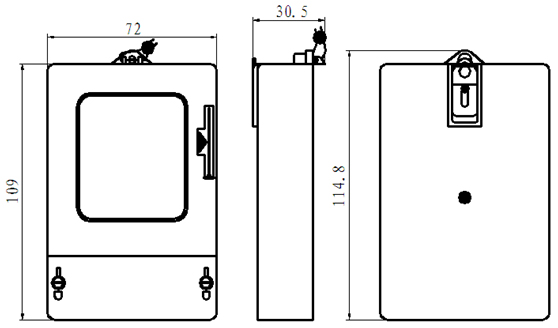

Physical Dimensions
- Dimensions
- 114.8mm x 72mm x 30.5mm
Power Consumption
Power Dissipation
| Circuit | Max Consumption |
|---|---|
| Voltage Circuit | ≤2W/10VA |
| Current Circuit | ≤4VA |
