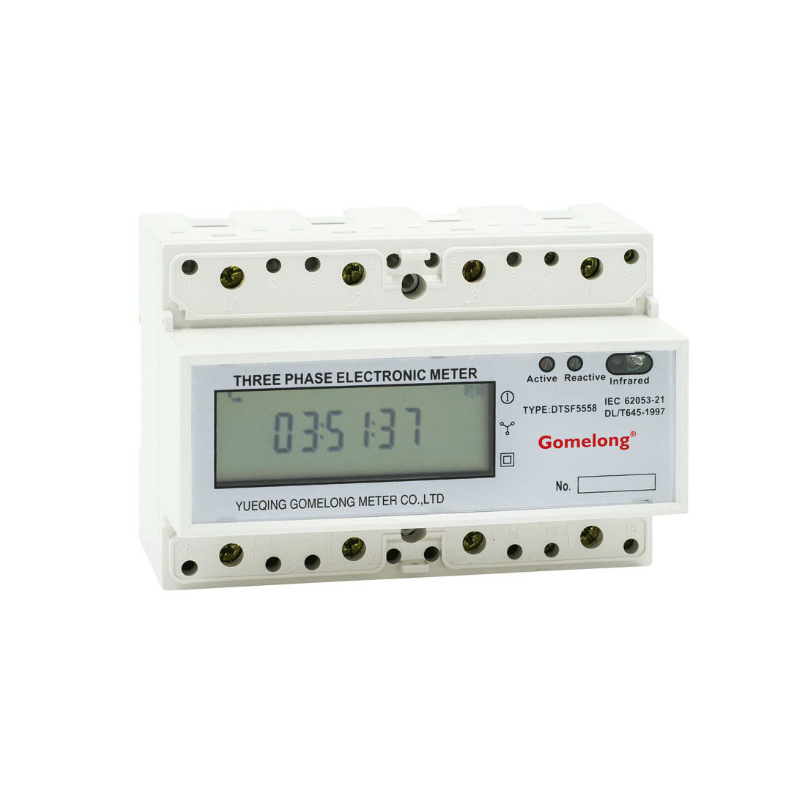

Three-Phase Electronic Energy Meter
This three-phase electronic energy meter is designed for precise measurement of active and reactive energy consumption. It complies with IEC 62053-21 and DL/T645-1997 standards and includes an infrared communication port for data access.
Technical Specifications
Product Overview

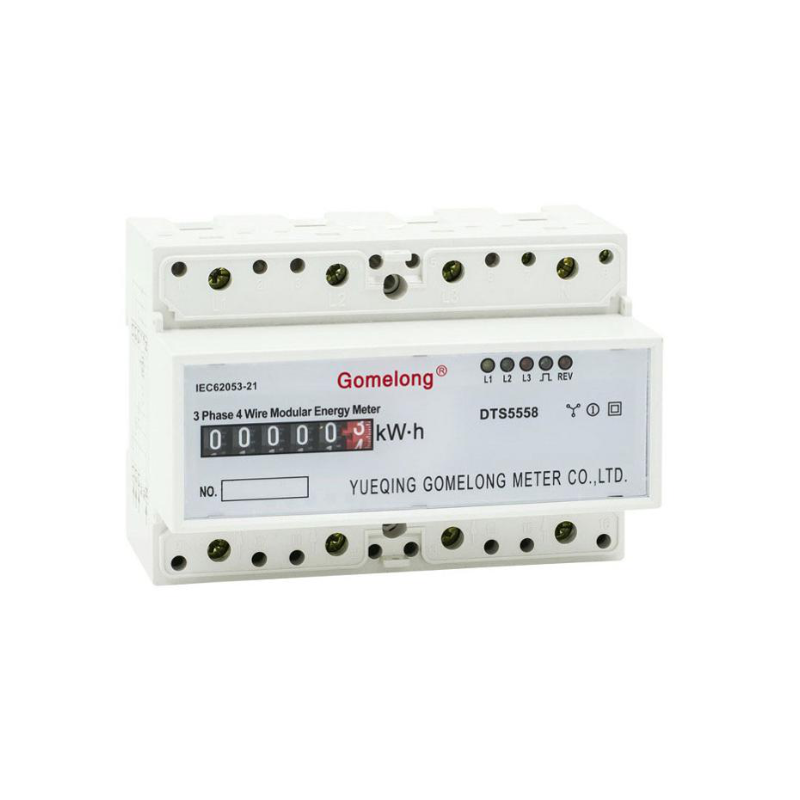

Three-Phase Electronic Energy Meter
This three-phase four-wire active energy meter utilizes advanced micro-electronics and large-scale integrated circuit technology to ensure precise measurement. Designed for reliability and ease of use, it features a compact DIN rail-mounted modular design suitable for distribution boards and load centers. It provides comprehensive monitoring capabilities, including phase loss detection and reverse direction indication, making it an ideal solution for industrial and commercial energy management.
Technical Specifications
- Standards Compliance
- IEC 62053-21DL/T645-1997
- Voltage Rating
- 3x230/400V
- Current Rating
- 3x10(100)A
- Frequency
- 50 Hz
- Pulse Constant
- 400 imp/kWh
Features & Indicators
LED Indicators
- Phase Loss (L1, L2, L3)
- Pulse Output
- Reverse Direction (REV)
Mounting
DIN Rail MountedModular
Applications
Typical Applications
- Electrical fire monitor and control
- Transformer and generator detection
- Capacitor and electric motor monitoring
- SCADA, EMS, DCS integration
- Medium and low pressure systems
