Technical Specifications
Overview
Intelligent Energy Monitoring

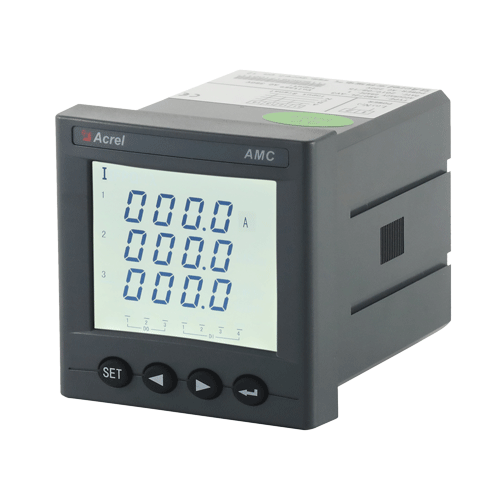

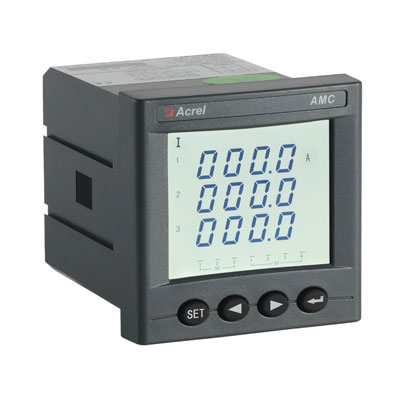

This programmable intelligent three-phase meter utilizes advanced AC sampling technology to provide precise measurements of current and voltage within three-phase grids. Designed for industrial control systems, it features a clear LCD display for local monitoring and supports integration with control devices. Its compact, panel-mountable design ensures it fits seamlessly into energy management setups.
Technical Specifications
Power Consumption
0.5 VA
Current Circuit
5 VA
Auxiliary Power
Switch Relay Ratings
| Type | Voltage | Current |
|---|---|---|
| DC | 30V | 3 |
| AC | 220V | 3 |
- AC Current Input
- 1A5A
- Accuracy Class
- Class 0.5
- Starting Current
- 0.3 %
- Auxiliary Power Supply
- AC 220V
Physical Dimensions
Device Dimensions
| Component | Dimensions (mm) |
|---|---|
| Panel Size | 75 x 75 |
| Cutout Size | 67 x 67 |
| Housing | 66 x 66 x 94.3 |
Features
Key Capabilities
- Programmable parameter settings
- Four-key interface for communication
- Three-phase current and voltage measurement
- LCD display for real-time monitoring
