Three-Phase Digital Multifunction Panel Meter with Ethernet
This multifunction power meter is a three-phase device for electrical network power quality detection. It provides data on energy consumption, generation, total harmonic distortion, and individual harmonics.
Technical Specifications
Overview
Advanced Electrical Monitoring

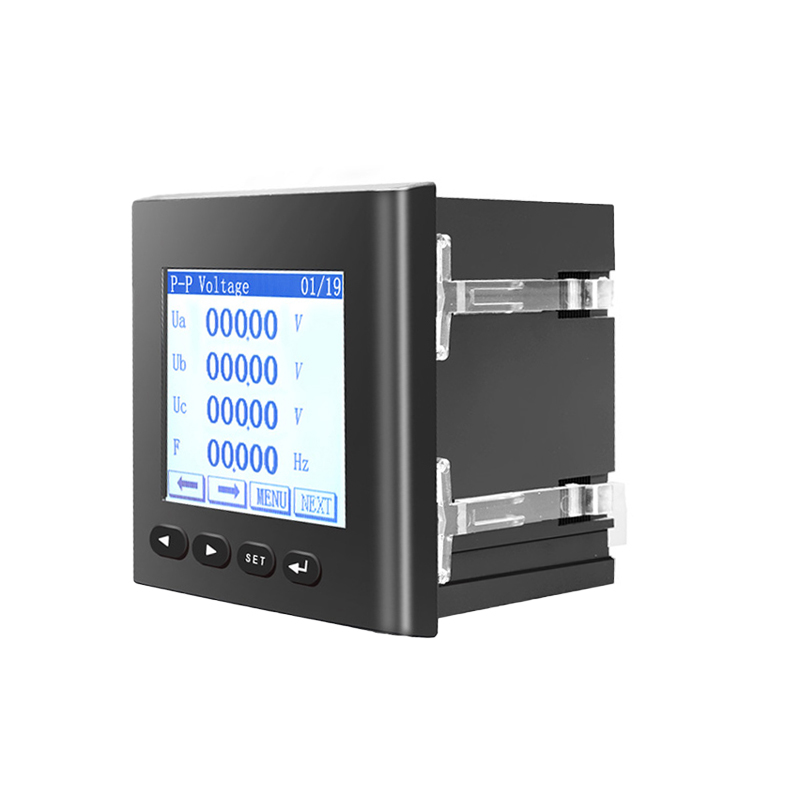

The APM-96Y is a high-precision multifunction power meter designed for comprehensive monitoring of 3P4W or 3P3W electrical systems. It provides essential data for transformers, generators, and industrial motors, offering advanced features like harmonic analysis, multi-tariff recording, and waveform snapshots. With versatile connectivity options including RS-485 and Ethernet, it integrates seamlessly into automated energy management systems.
Measurement Capabilities
Accuracy Class
Class 0.2
- Measured Parameters
- VoltageCurrentFrequencyActive PowerReactive PowerApparent PowerEnergy (Active/Reactive)Power FactorHarmonics (1-15)THD%
- Current Input
- .../5 A or .../1 A
Technical Specifications
- Power Supply Range
- 85-265 VAC/DC
- Communication
- RS-485Modbus/RTUEthernet
- Galvanic Insulation
- Yes

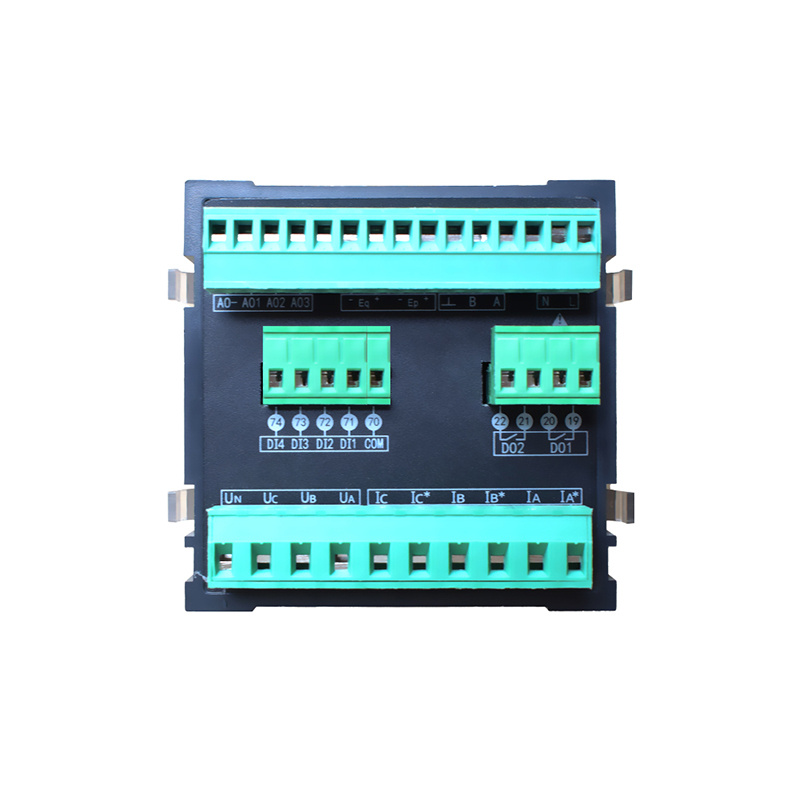

I/O and Expansion
Expansion Modules
- 2-Channel Relay Output (2DO)
- 4-Channel Switch Input (4DI)
- 2-Channel Analog Output (2AO)
Data and Analytics
Event and Data Records
| Feature | Capacity |
|---|---|
| Multi-tariff (TOU) Record | 3 Months |
| SOE Records | 100 Events |
| Waveform Snapshot | 1KHz (1s duration) |
- Virtual Alarm Triggers
- 5
