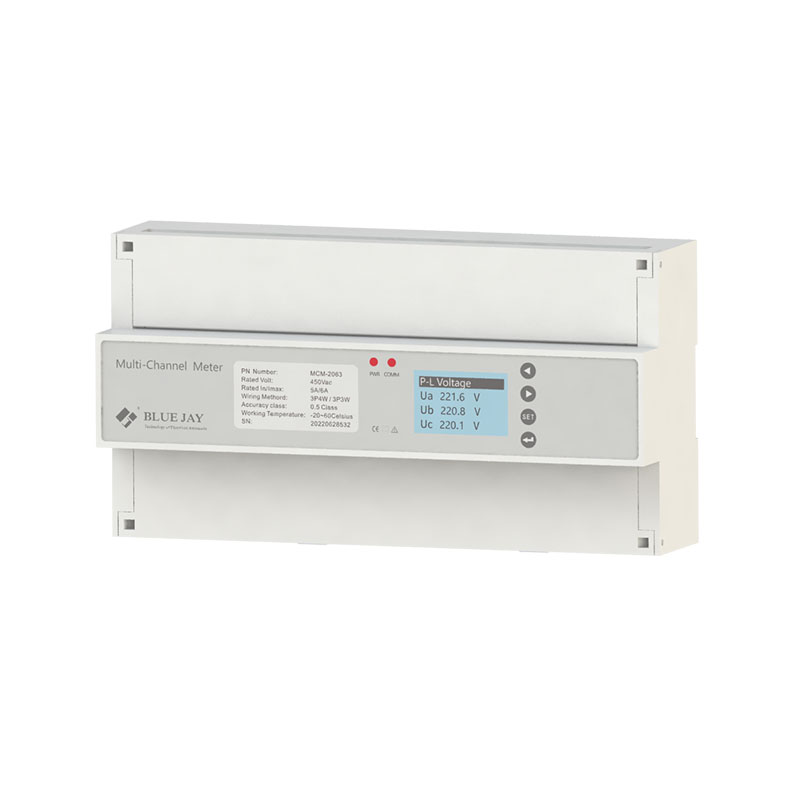

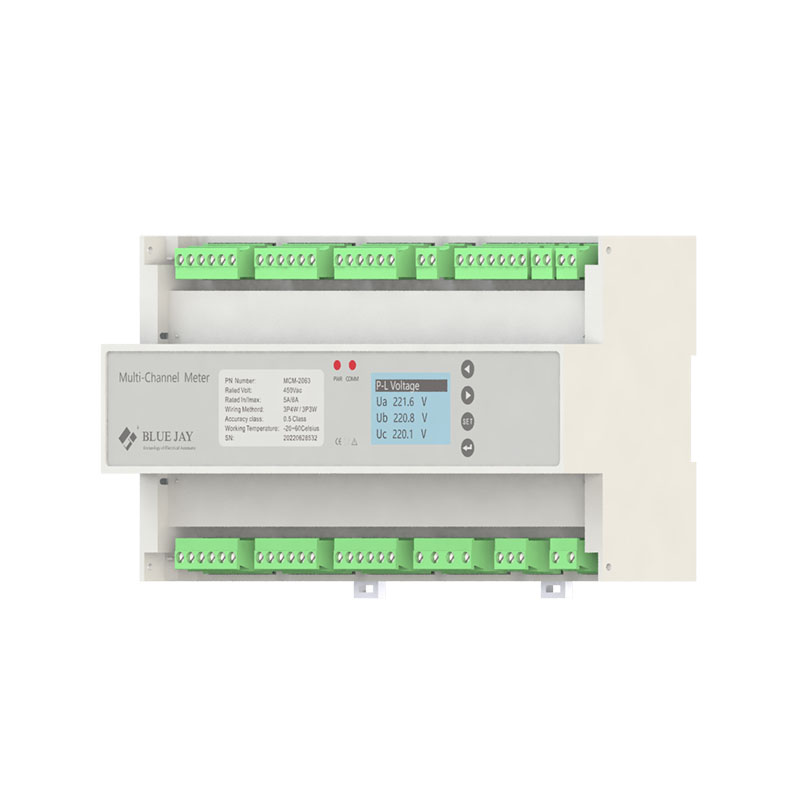

Three-Phase Digital Energy Meter
This energy meter is designed for accurate and reliable measurement of electrical energy consumption in residential and light commercial applications. It provides three-phase power measurement with a digital display for clear and precise readings.
Technical Specifications
Product Overview
Advanced Multi-Channel Power Metering
The MCM series is a high-precision metering device engineered for monitoring feeder loops and branch circuits. Designed for efficiency, it provides real-time electrical parameter measurement for both three-phase and single-phase systems, making it an ideal solution for distribution feeders, transformers, and industrial power quality analysis. With a 0.5 accuracy class and compact DIN-rail installation, it helps reduce equipment investment while significantly improving reliability and maintenance costs.
Measurement Capabilities
Accuracy Class
Current Measurement
- Metering Channels
- 6 channels
- Wiring Methods
- 3P4W3P3W
Electrical Specifications
- Voltage Measurement Range
- 18 - 520 VAC (L-L)
- Auxiliary Power Supply
- 85-265 VAC/DC, 50/60 Hz
- Frequency Range
- 45 - 65 Hz
I/O and Communication
Digital I/O Ports
| Port Type | Quantity |
|---|---|
| Digital Input (DI) | 6 |
| Digital Output (DO) | 2 |
- Communication
- RS485Modbus RTU
Physical and Installation
- Mounting
- Standard DIN-rail
- Display Interface
- 1.6-inch dot matrix LCD
- Operating Temperature
- -20°C to 60°C
