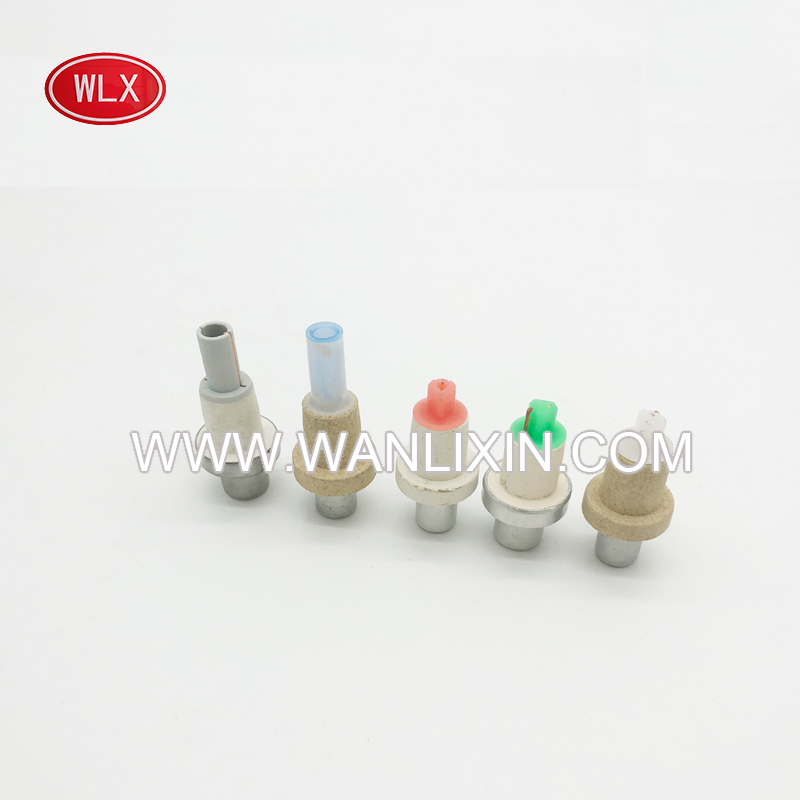

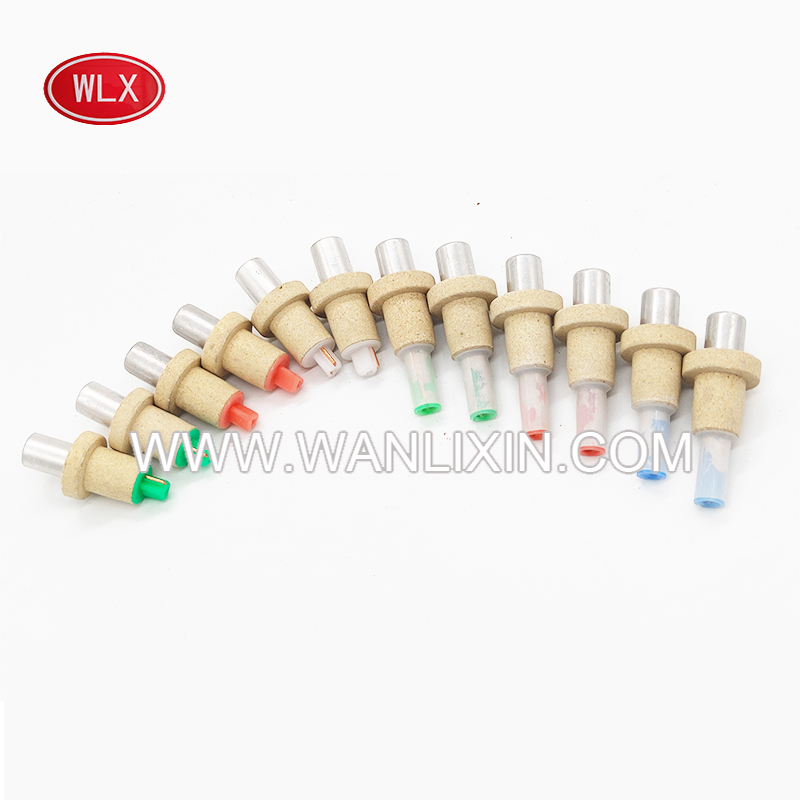

Thermocouple Temperature Sensor Tip
These high-precision thermocouple tips are designed for accurate temperature sensing in demanding environments. The robust sensors feature ceramic insulation and a durable metal housing, making them suitable for furnaces, kilns, and other high-heat applications.
Technical Specifications
Product Overview
Industrial High-Temperature Sensing
This disposable thermocouple sensor is engineered specifically for high-precision temperature measurement in molten steel and other extreme molten metal environments. Utilizing the thermoelectric effect, the probe provides rapid, accurate readings within seconds. The design features a robust construction with quartz-protected thermo-wires and a fire-resistant filler to ensure stable performance under intense thermal stress.
Technical Specifications
Key Performance Metrics
4 s
Min Response Time
6 s
Max Response Time
1,800 °C
Max Temperature
Model Specifications
| Type | Model | Tolerance | Range (°C) |
|---|---|---|---|
| B | KB-602/604 | ±3℃ | 1500-1700 |
| S | KS-602/604 | ±3℃ | 1500-1700 |
| R | KR-602/604 | ±3℃ | 1500-1700 |
| W | KW-602/604 | ±5℃ | 1500-1700 |
Usage Guidelines
Best Practices
- Recommended insertion depth: 300-400mm
- Avoid contact with furnace walls or scum
- Soak time in molten metal should be under 6 seconds
- Allow cooling period between measurements
- Store in low humidity (<80%) environments
Product Features
- Design Features
- Disposable DesignQuartz ProtectedFire-Resistant FillerHigh Temperature ResistantPaper Tube Support
