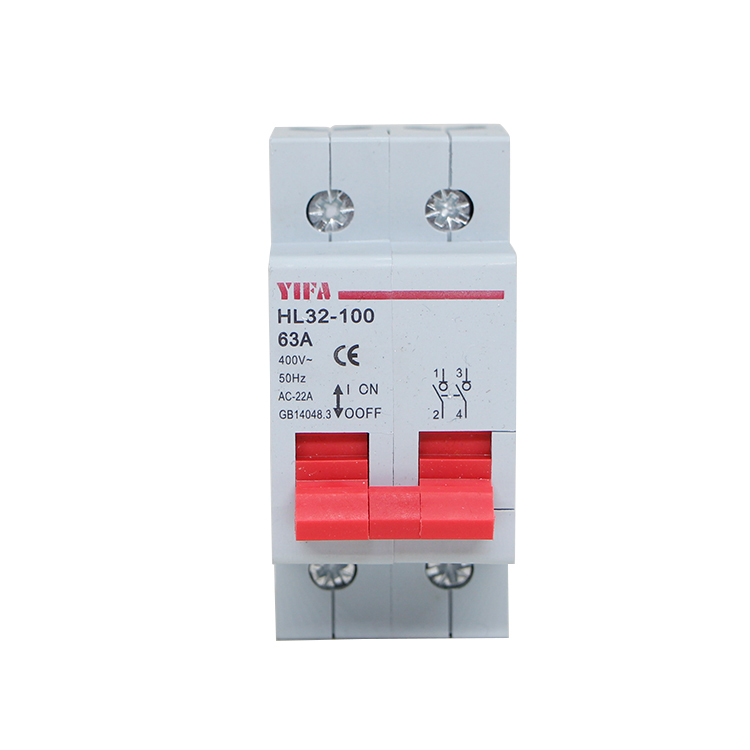

Terminal Low Voltage Disconnector Circuit Breaker
This disconnector circuit breaker is suitable for distribution and control loops of AC 50/60Hz with a rated working voltage of 230V or 400V. It is mainly used as a main switch for terminal electrical appliances, and can also be applied to various motors, low power electrical equipment, and lighting.
Technical Specifications
Product Overview
Professional Terminal Disconnector
This low voltage disconnector circuit breaker is engineered for reliable distribution and control in AC50/60Hz electrical systems. It serves as an essential main switch for terminal electrical appliances, motors, and lighting equipment. Designed for high operational safety and efficiency, the unit provides robust circuit isolation in a compact footprint suitable for diverse industrial and commercial applications.
Technical Specifications
Voltage Ratings
660 V
Insulation Voltage
400 V
Max Operating Voltage
6 kV
Impulse Withstand
Operational Performance
| Parameter | Value |
|---|---|
| Service Type | AC-22 |
| Short-time Withstand Current | 1.2kA |
| Makebreak Capacity | 2kA |
| Mechanical Life | 10000 cycles |
- Rated Operating Current
- 16A32A63A100A
Installation and Standards
Certified Standards
IEC60947-3GB14048.3

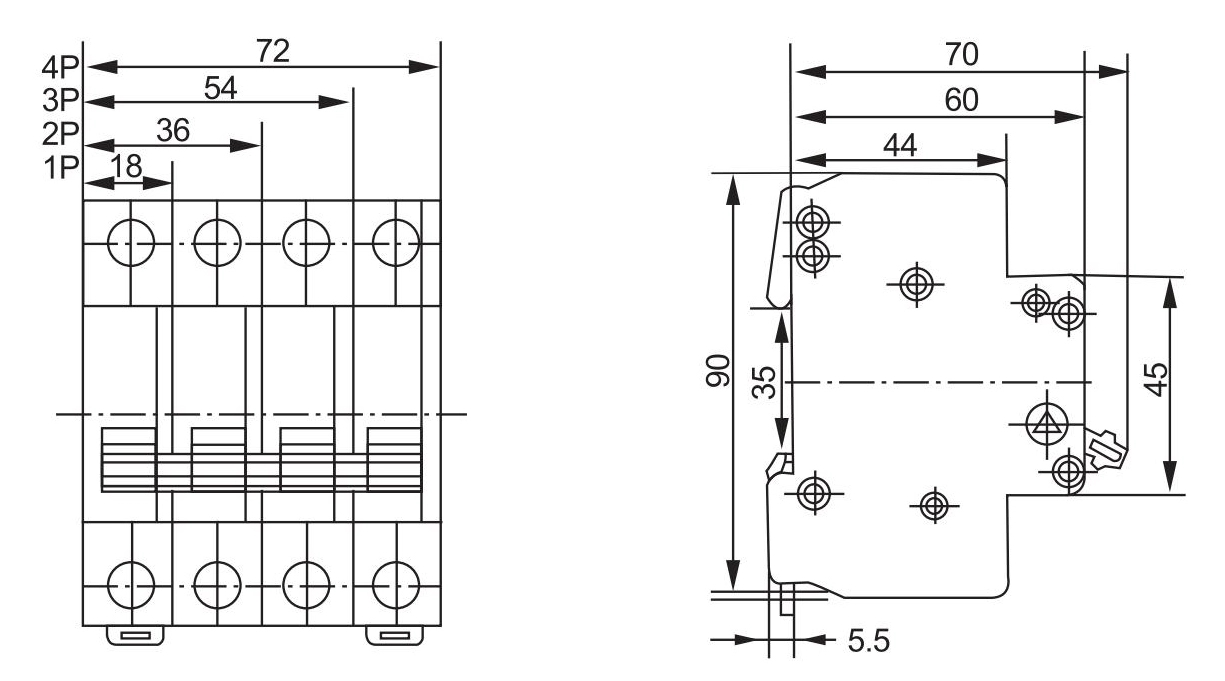

- Installation Requirements
- Compatible with TH35-7.5 steel mounting rails
