Temperature Sensor for Refrigeration Equipment
This temperature sensor is designed for use in refrigeration equipment. It features excellent low-temperature performance and a low annual drift rate.
Technical Specifications
Product Overview
Professional Refrigeration Temperature Sensors
These high-precision temperature sensors are engineered specifically for demanding refrigeration environments, including refrigerators, freezers, and industrial cooling machinery. Designed for rapid response times of 15 to 30 seconds, they ensure optimal energy efficiency and precise temperature monitoring. The construction features excellent low-temperature performance and a low annual drift rate, guaranteeing long-term stability and reliability in diverse cold storage applications.
Key Features
Performance Metrics
15 s
Min Time Constant
30 s
Max Time Constant
- Performance Characteristics
- Low Annual DriftExcellent Low-Temp PerformanceHigh Response Speed
Technical Specifications

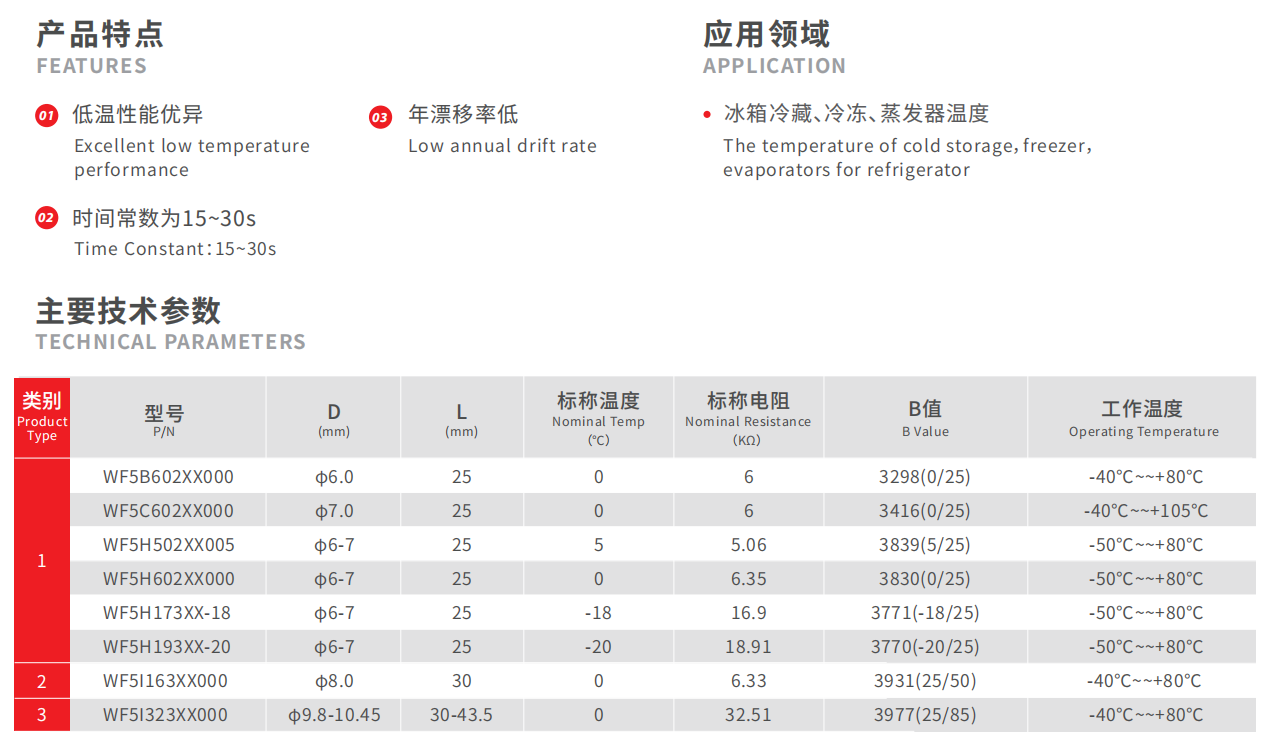

Sensor Model Specifications
| Model | Nominal Temp (°C) | Nominal Resistance (kΩ) | B Value | Operating Range (°C) |
|---|---|---|---|---|
| WF5B602XX000 | 0 | 6 | 3298(0/25) | -40 to +80 |
| WF5C602XX000 | 0 | 6 | 3416(0/25) | -40 to +105 |
| WF5H502XX005 | 5 | 5.06 | 3839(5/25) | -50 to +80 |
| WF5H602XX000 | 0 | 6.35 | 3830(0/25) | -50 to +80 |
| WF5H173XX-18 | -18 | 16.9 | 3771(-18/25) | -50 to +80 |
| WF5H193XX-20 | -20 | 18.91 | 3770(-20/25) | -50 to +80 |
| WF5I163XX000 | 0 | 6.33 | 3931(25/50) | -40 to +80 |
| WF5I323XX000 | 0 | 32.51 | 3977(25/85) | -40 to +80 |

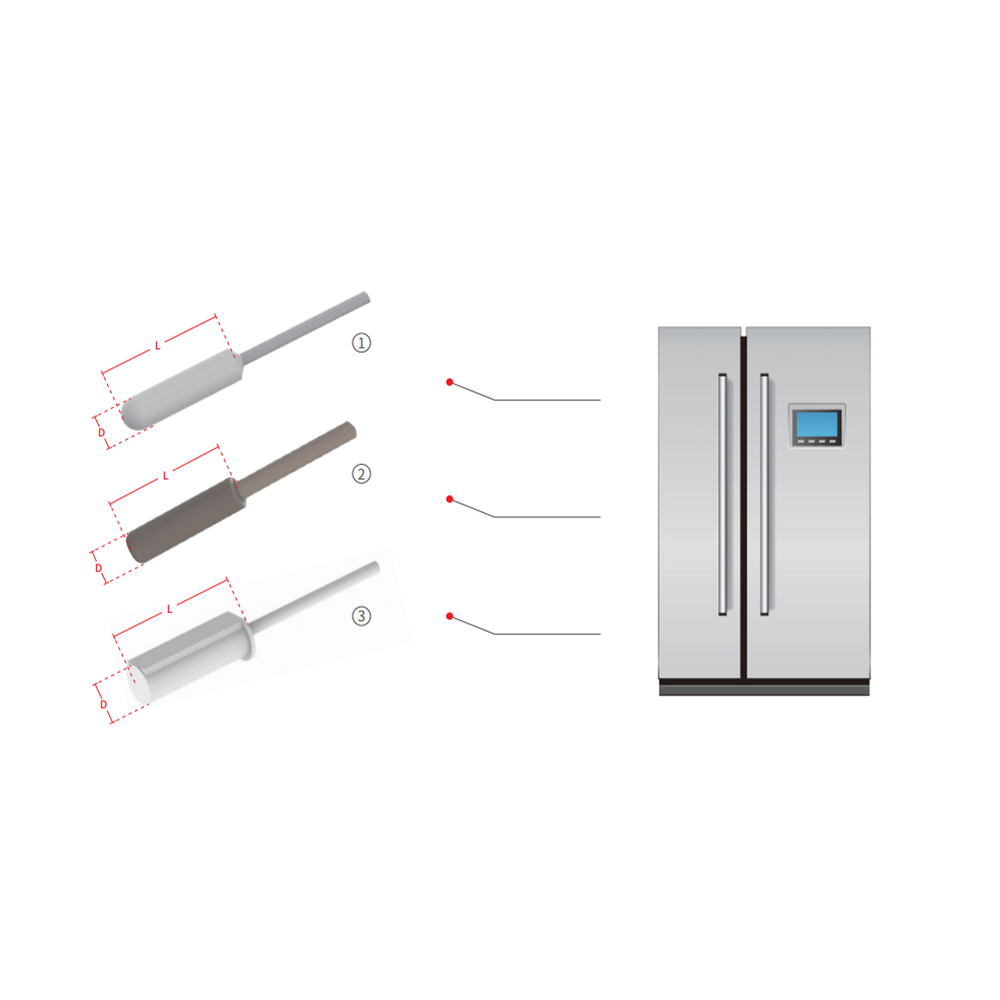

Applications
Primary Applications
- Household Refrigerators
- Freezer units
- Evaporator temperature monitoring
- Industrial cold storage systems
