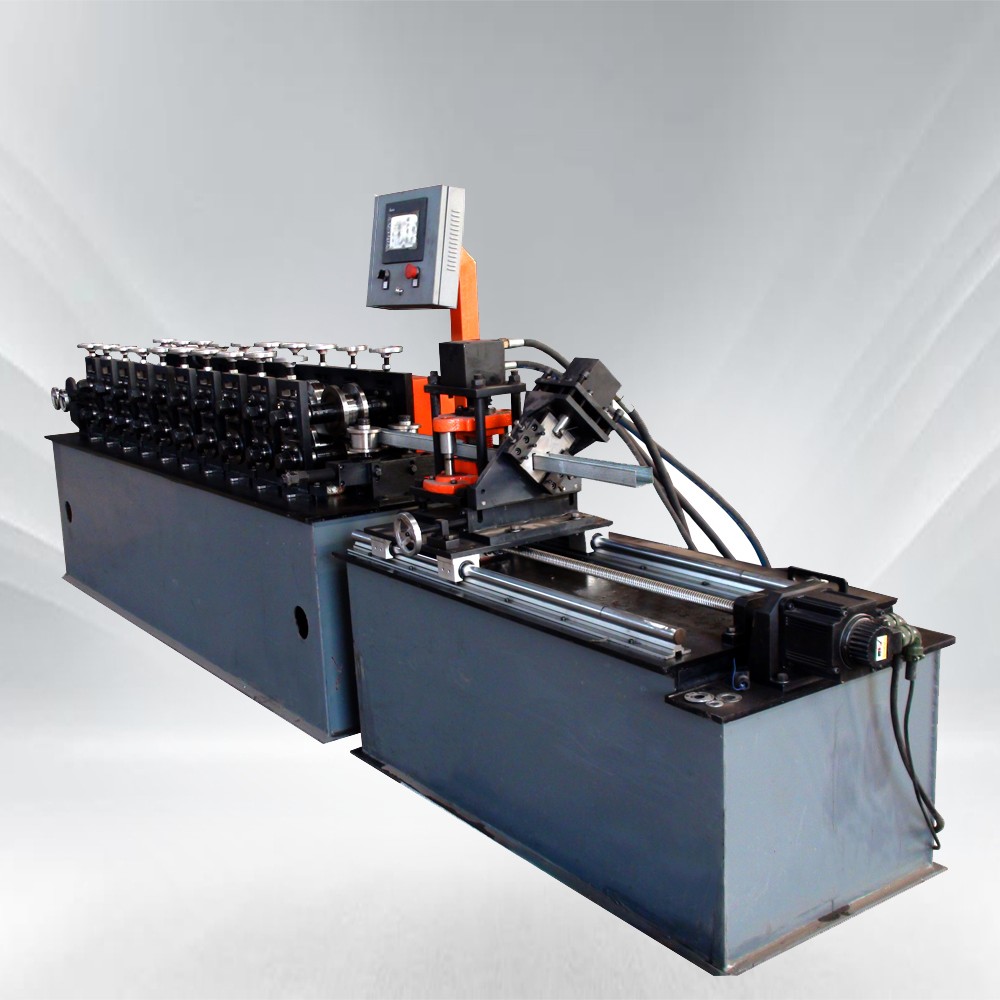

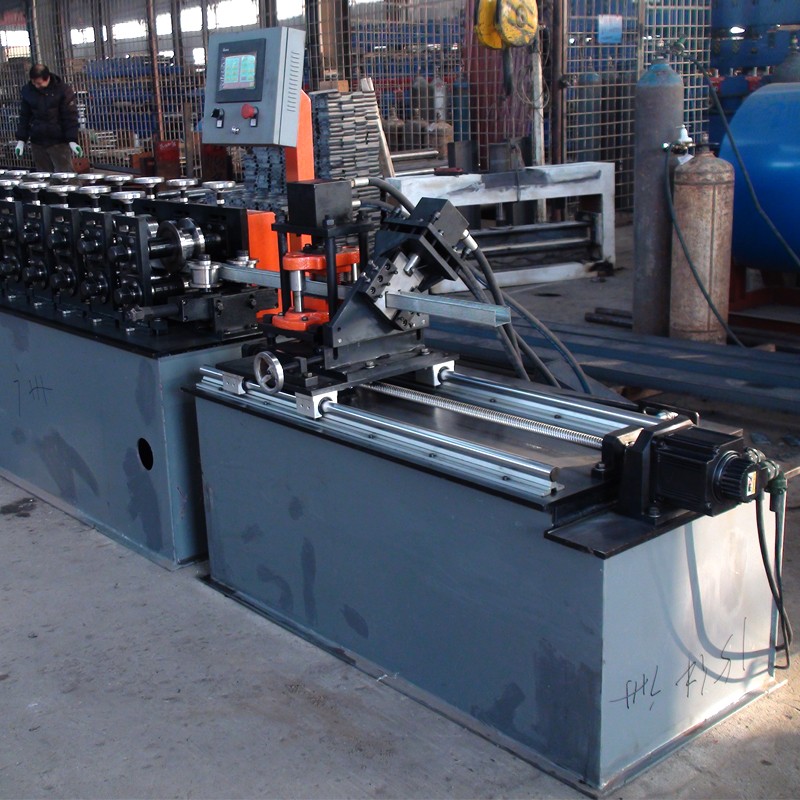

Stud and Track Roll Forming Machine
This roll forming machine produces metal studs and tracks. It efficiently forms sheet metal into precise stud track profiles used in wall framing and ceiling systems.
Technical Specifications
Product Overview
Industrial Stud and Track Roll Forming Machine

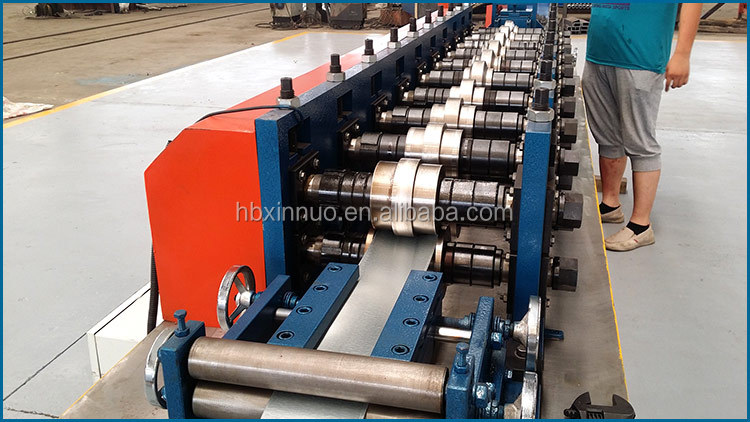

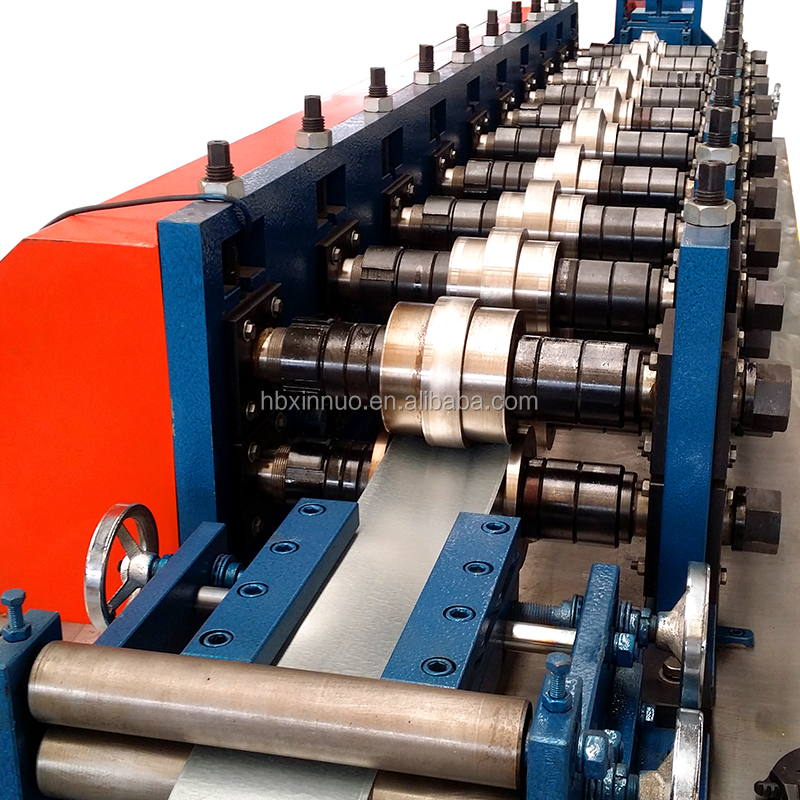

This high-performance roll forming machine is engineered for the efficient, large-scale production of metal stud and track profiles used in modern building construction. Featuring a precision-driven PLC control system and robust forged steel rollers, it delivers consistent dimensional accuracy for high-quality structural framing components. The machine is designed for versatility, handling various materials such as galvanized steel and aluminum, while offering adjustable speed and cutting parameters for demanding industrial requirements.
Technical Specifications
- Roller Stations
- 10 rows
- Feeding Material Thickness
- 0.3-1.5 mm
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coils
Operational Metrics
Working Speed
15 m/min
Maximum Speed
- Manual Uncoiler Capacity
- 5 T
Control and System
Operation Modes
AutomaticManual
System Languages
- English
- Chinese
- Spanish
- Russian
- Interface
- PLC Colored Touch Screen
Hydraulic System
- Working Pressure
- 12-16 Mpa
- Hydraulic Power
- 4 kW
