Technical Specifications
Product Overview

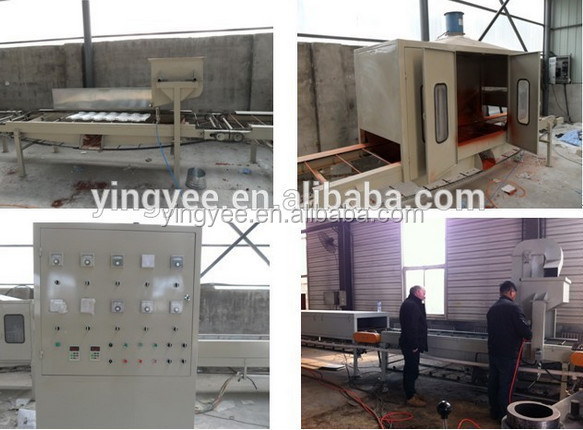

Stone Coated Tile Production Line
This automated production line is designed for the efficient manufacturing of stone-coated metal roofing tiles. The system integrates multiple stages including decoiling, precision forming, automated coating application, temperature-controlled curing, and hydraulic cutting. Engineered for high-volume industrial use, this line ensures consistent quality and minimal material waste for durable and aesthetically pleasing roof solutions.
Tile Composition
Roofing Tile Composition
- Clear Acrylic Over-Glaze Protective Coating
- Roofing Granule Coating
- Adhesive Basecoat
- Protect Surface Coating
- Aluminum Zinc Coating
- Commercial Grade Steel Core
- Aluminum Zinc Coating
- Protect Surface Coating
Production Capacity

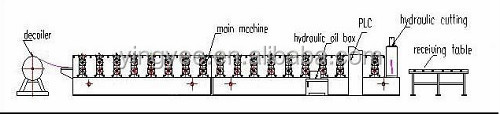

- Line Components
- DecoilerMain Forming MachineHydraulic Oil BoxPLC Control SystemHydraulic Cutting UnitDrying OvenReceiving Table
Granule Specifications

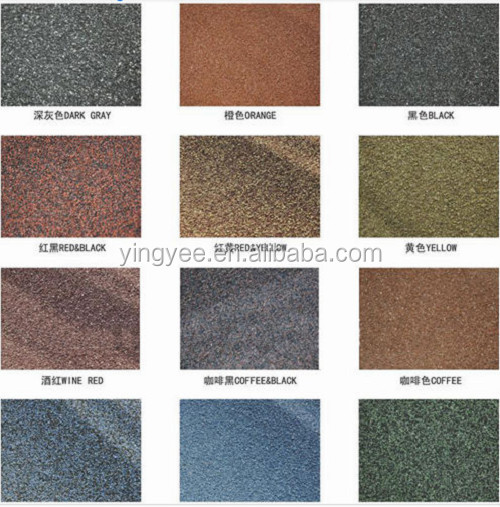

Available Color Options
Dark GrayOrangeBlackRed & BlackRed & YellowYellowWine RedCoffee & BlackCoffee

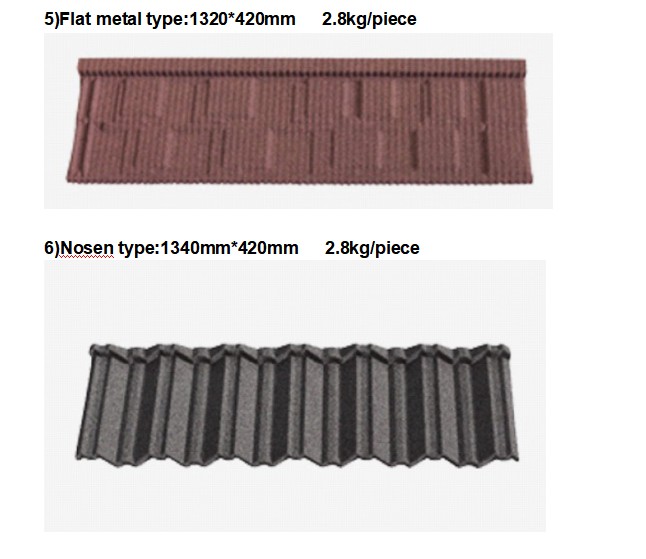

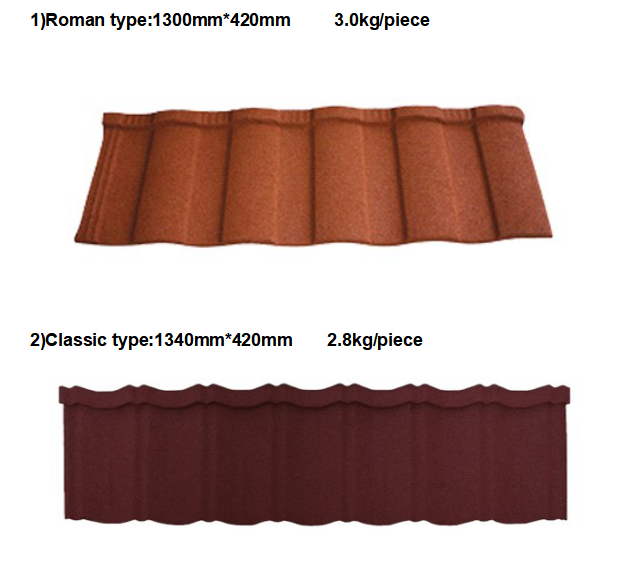

Product Specifications
Standard Tile Metrics
| Length (mm) | Width (mm) | Tiles/m² (pcs) |
|---|---|---|
| 1,170 | 420 | 2.3 |
| 1,330 | 420 | 2 |
| 1,500 | 420 | 1.84 |
| 1,640 | 420 | 1.66 |
