Step Tile Roof Roll Forming Machine
The step tile roof roll forming machine produces roofing sheets with precision. Metal sheets are shaped through a series of rollers to achieve the desired tile profile.
Technical Specifications
Overview
High-Efficiency Step Tile Roofing Production

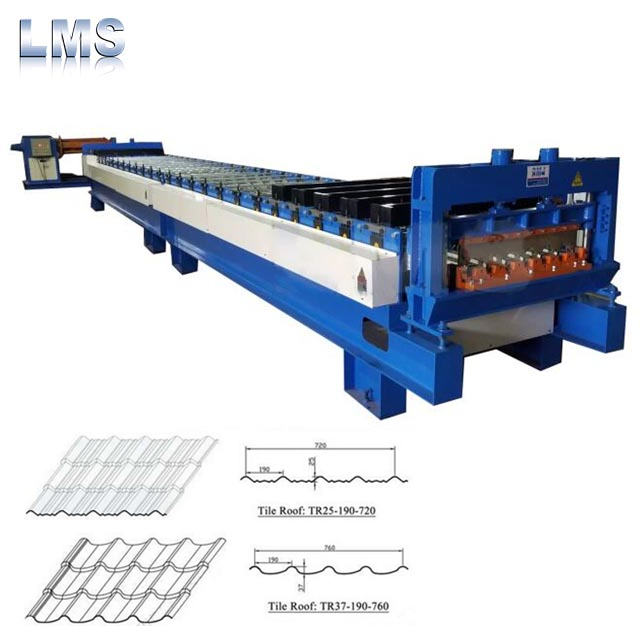

This industrial roll forming machine is engineered for the precise and automated production of step tile roofing sheets. It integrates advanced hydraulic decoiling, servo-driven length control, and robust roll forming stations to ensure consistent profile strength and material efficiency. Designed for high-volume manufacturing, the system handles various metal coils, including PPGI and embossed aluminum, providing a reliable solution for modern roofing fabrication.
Technical Parameters
Material Dimensions
- 914
- 1,000
- 1,220
- 1,250
- Compatible Materials
- PPGI CoilEmbossed Aluminium Coil
- Processing Thickness
- 0.40 - 0.80 mm
Performance Metrics
Key Performance Metrics
10 tons
Decoiler Capacity
10 tons
Step Forming Pressure
10 m/min
Max Forming Speed
Forming Station Configuration
| Component | Specification |
|---|---|
| Roller Stations | 18 - 24 |
| Main Shaft Diameter | 80 mm |
| Sidewall Thickness | 22 - 25 mm |
| Forming Motor | 5 kW Servo |
Control & Automation
Control System Features
PLC Controller5.7-inch TouchscreenServo-Motor Length ControlFrequency ConverterHydraulic Decoiler
