Steel Tube Arch Bridge
A steel tube arch bridge is designed to span waterways and roadways. The bridge features a curved arch made from steel tubes to provide structural support.
Technical Specifications
Overview
Engineering Excellence in Steel Arch Bridges
The Steel Tube Arch Bridge provides a robust and aesthetically striking solution for spanning waterways and infrastructure gaps. Utilizing high-strength tubular steel, the arch design ensures superior structural integrity and load-bearing capacity while maintaining a slender, elegant profile. This multi-span bridge system is engineered for long-term durability and seamless integration into both natural environments and urban landscapes.
Design and Structure
- Arch Configuration
- Steel TubeArch BridgeMulti-span
- Primary Construction Material
- Structural Grade Steel
Performance
Bridge Capacity Metrics
1 System
Deck Support
2 Arch
Structure Style
Construction Features
Key Structural Features

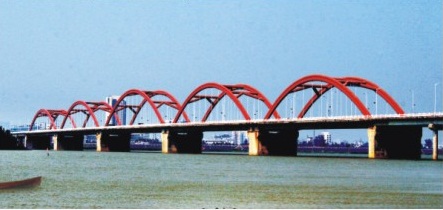

- Red-finished protective steel coating
- Reinforced concrete deck integration
- Heavy-duty marine-grade piers
- Engineered for multi-lane traffic flow
