Technical Specifications

Product Overview

Professional Roofing Tile Production

This steel roofing tile roll forming machine is engineered for high-precision manufacturing, offering robust construction for industrial-scale operations. It supports automated control via PLC and touch-screen interfaces, ensuring consistent quality and high output. Designed for ease of use, it also features remote control capabilities and dedicated support services.

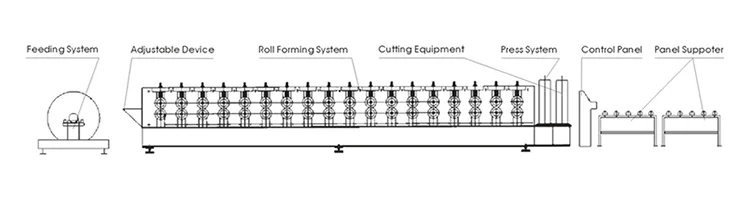

Machine components breakdown — Overview of integrated feeding, forming, and cutting systems.

Technical Parameters

Material Specifications

Property	Value
Type	Pre-painted & galvanized steel coil
Thickness	0.3-0.6mm
Yield Stress	Q235-345 Mpa

Performance Metrics

5.5 KW

Main Motor Power

12 Mpa

Hydraulic Pressure

5.5 KW

Hydraulic Motor Power

Forming Speed: 2-3; 5-6 m/min

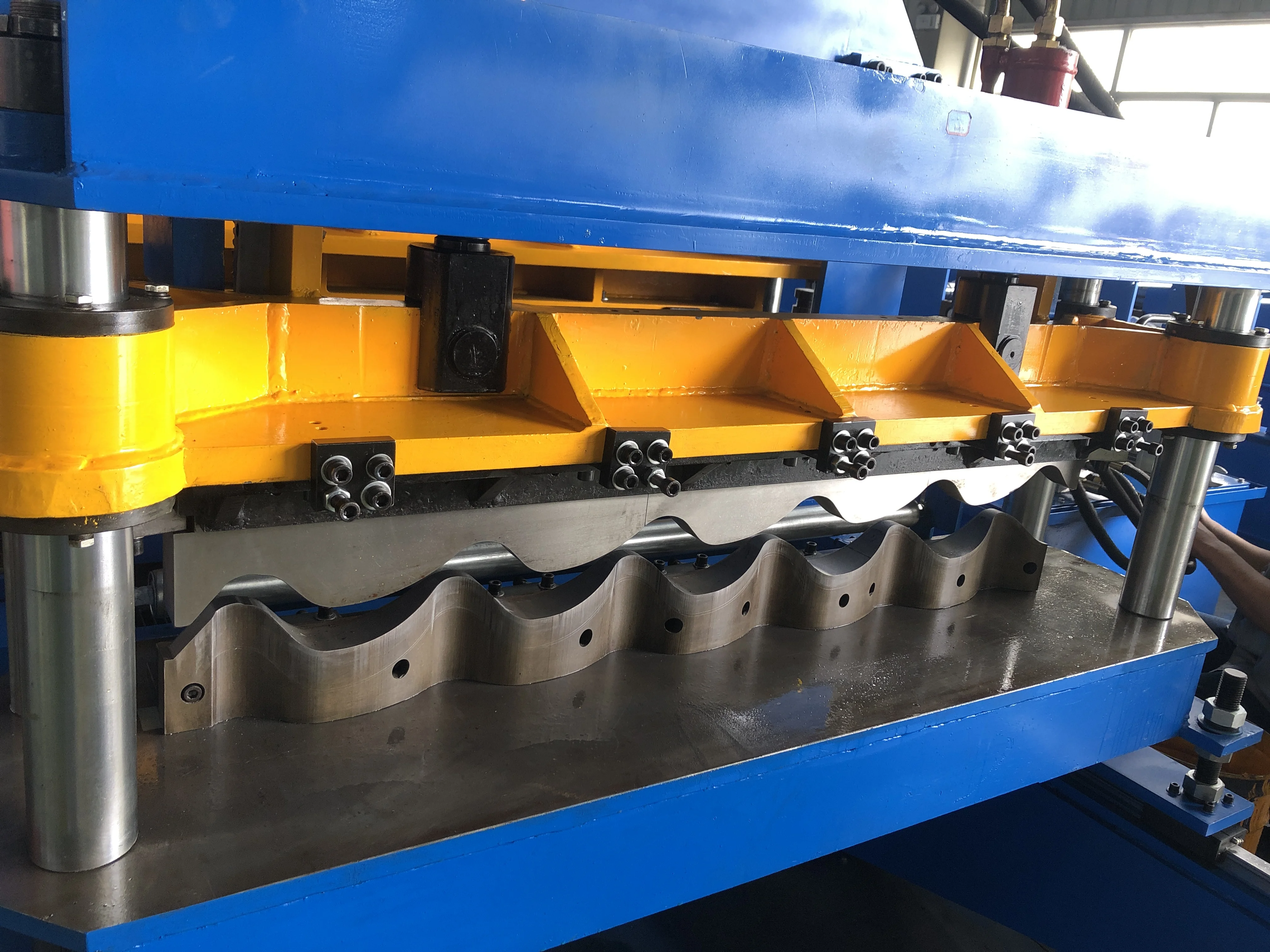

Hydraulic forming station — Hydraulic cylinders provide precise control during the metal forming process.

Mechanical Construction

Roller Specifications: #45 steel with hard chrome treatment
Transmission: Chain transmission

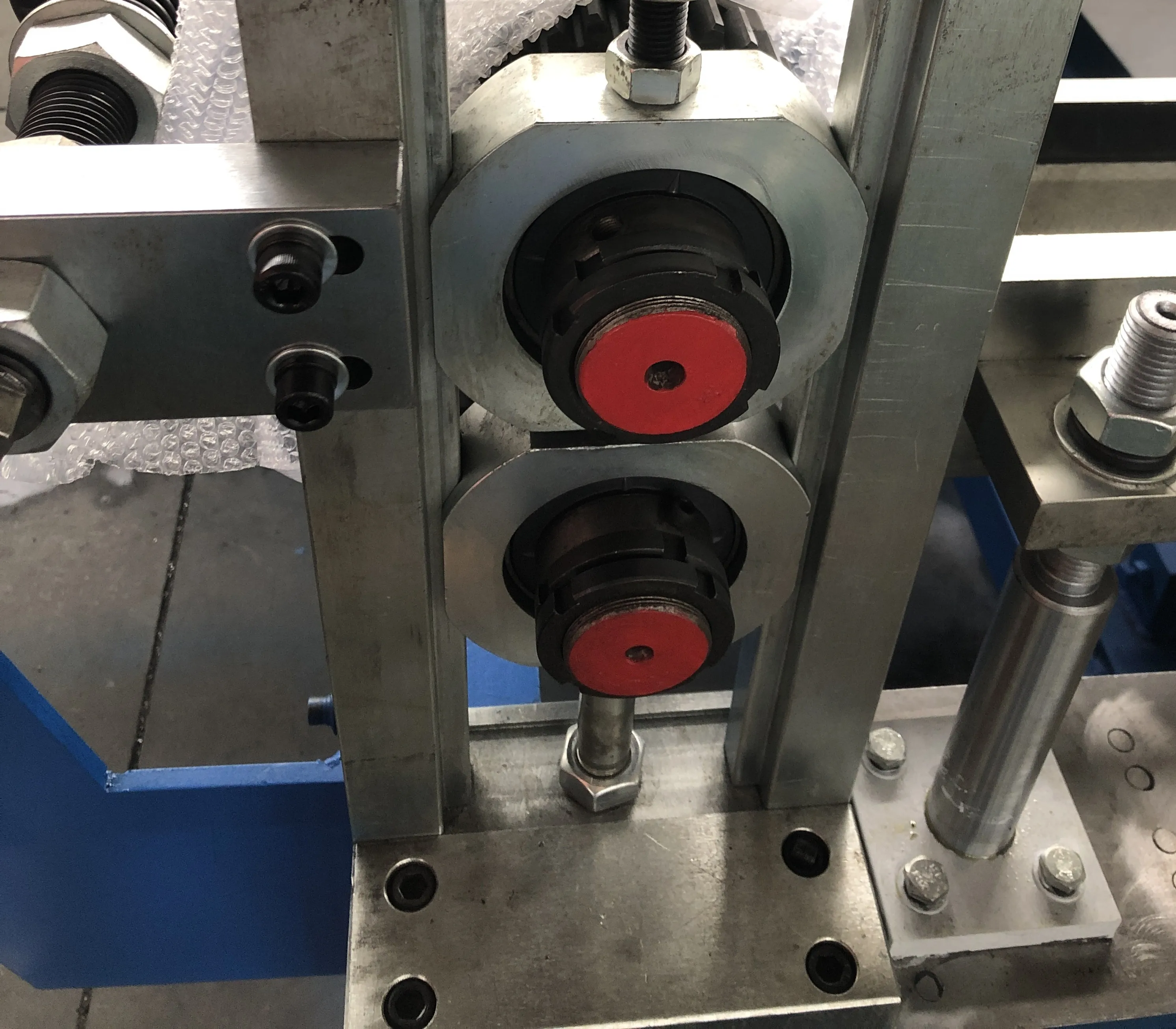

Precision machine structure — Precision engineered frame and rollers for durable tile production.

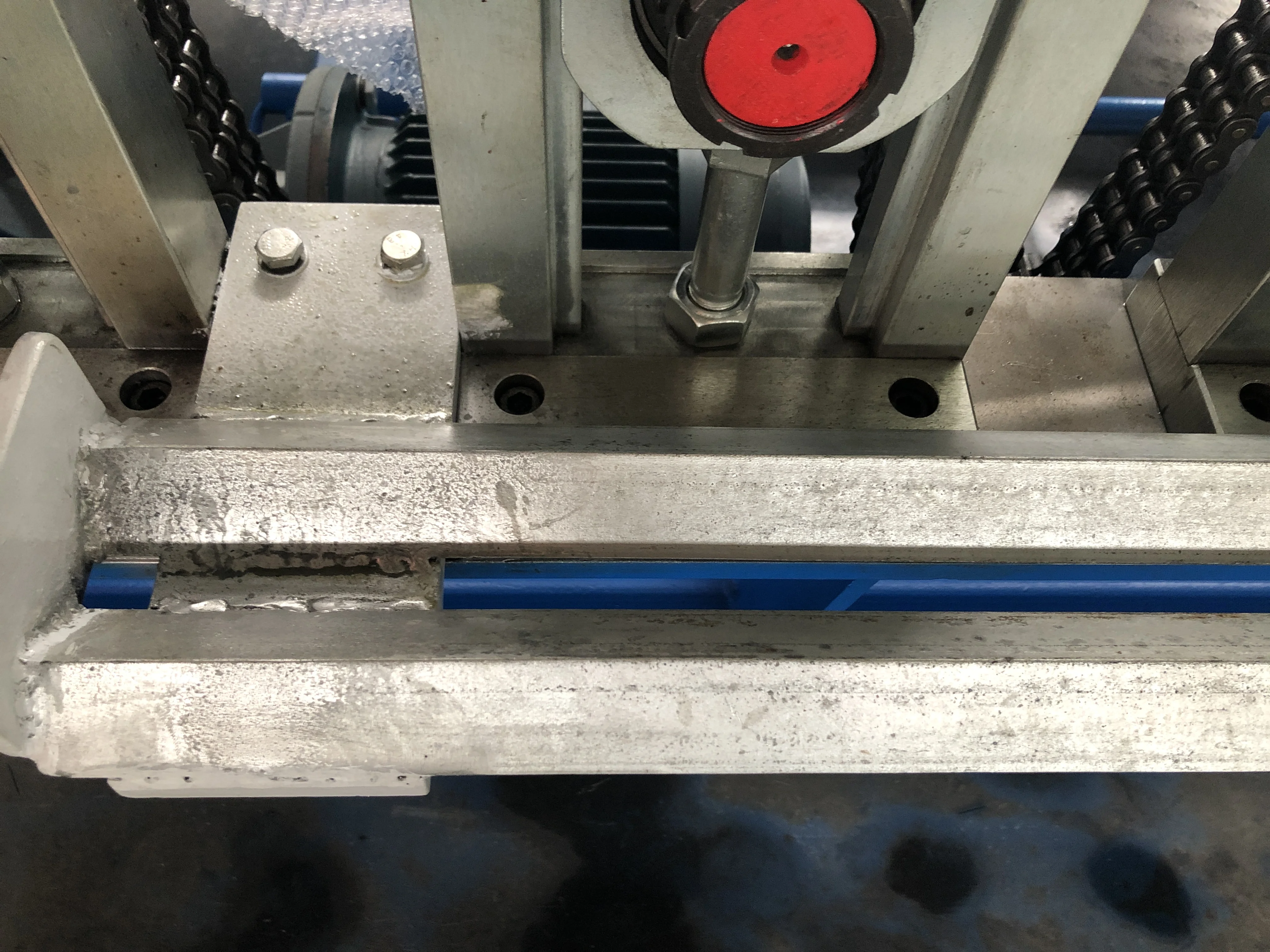

Close-up of drive system — Detail of the chain drive system and heavy-duty support structure.

Automation & Control

Control System: PLC
Interface: Touch screen and button

Logistics

Dimensions: 8000 x 1500 x 1500 mm
Weight: 8000 KG

Compliance

Certifications: CESGS

Quality and packaging check — Ensuring quality compliance and secure preparation for shipping.
