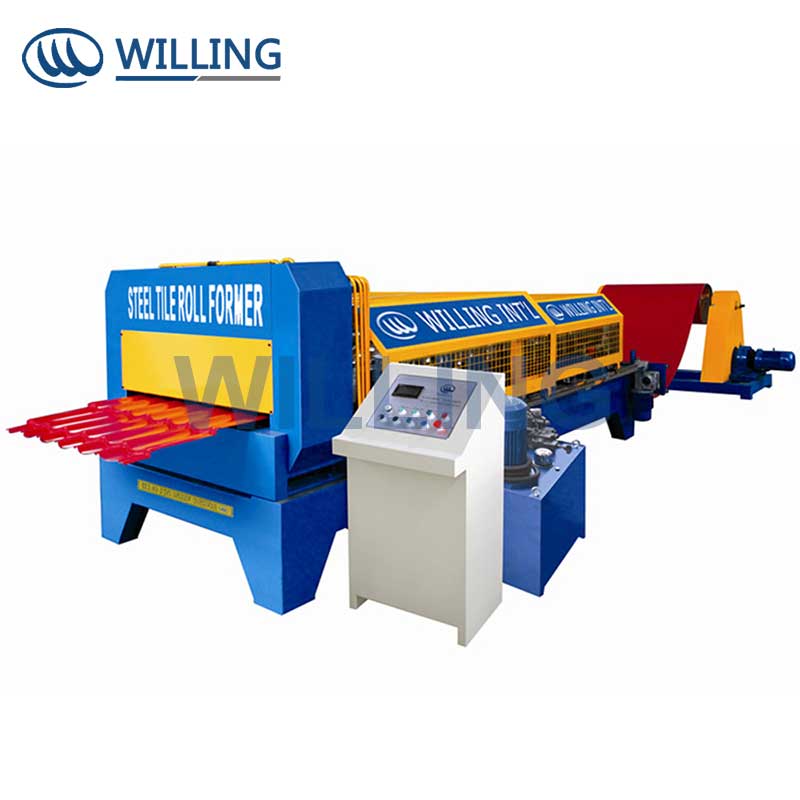

Steel Roofing Tile Roll Forming Machine
This specialized machine efficiently produces steel tiles with consistent quality. It integrates forming rollers, a hydraulic cutting system, and a PLC for automated operation.
Technical Specifications
Overview
High-Precision Steel Tile Forming
The WLTM series modular tile sheet roll forming machine is engineered for creating elegant, archaistic tile profiles used in premium architectural projects. This robust system integrates automated uncoiling, precision roll forming, and hydraulic shearing to deliver consistent, high-quality roofing materials. Designed for versatility, the machine supports a wide array of profile models and is ideal for constructing garden-style factories, luxury villas, and scenic resorts.
Technical Specifications
Key Performance Metrics
6 m/min
Max Forming Speed
11 KW
Total Power
6,000 Kg
Total Weight
Processing Capabilities
| Parameter | Specification |
|---|---|
| Material Type | Color steel sheet |
| Thickness | 0.3-0.6 mm |
| Yield Stress | 230-350 Mpa |
Operational Features
Core Components
- Uncoiler and base
- Infeed guides
- Fixed position driven forming stations
- Pressing die
- Shearing device
- Hydraulic station
- PLC control console
- Automation & Drive
- PLC ControlTouch Screen InterfaceChain Transmission45# Steel Rollers
