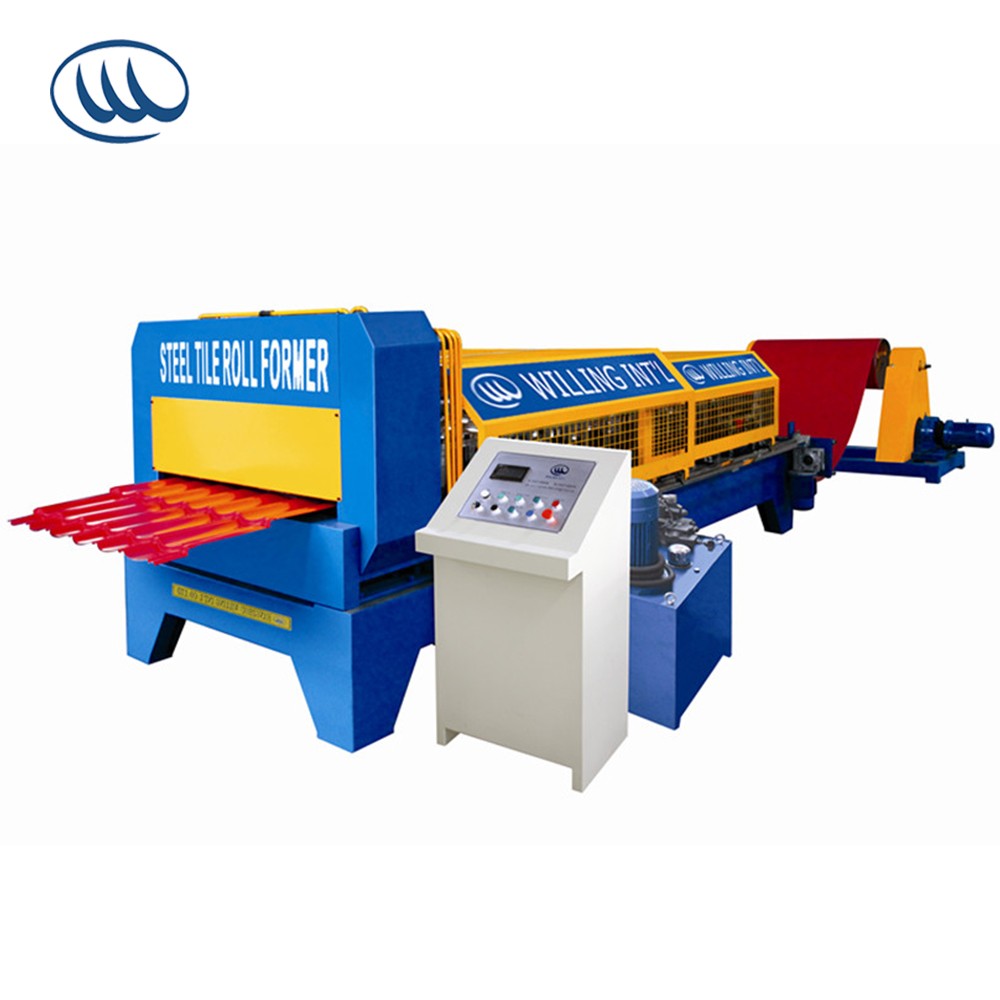

Steel Roof Tile Forming Machine

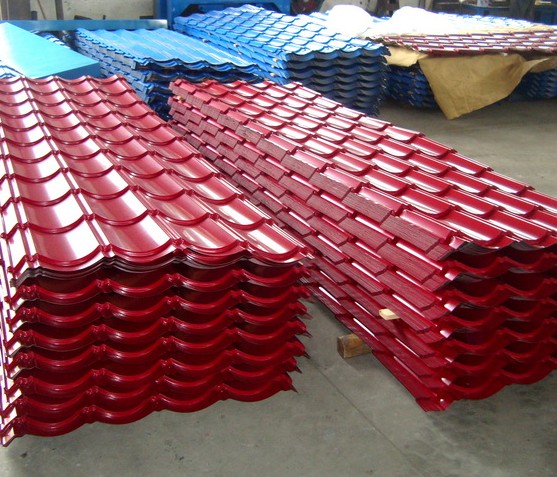

This steel roof tile forming machine is easy to operate and provides lifetime video technical support. It is designed for manufacturing durable roofing tiles from pre-painted and galvanized steel.
Technical Specifications
Product Overview
Professional Steel Roof Tile Forming
This high-performance steel roof tile forming machine is designed for efficient, consistent, and precise metal roofing production. It features robust construction with a user-friendly PLC interface and hydraulic systems for high-volume manufacturing. Built for durability, it supports pre-painted and galvanized steel coils, ensuring high-quality outputs for industrial building material applications.
Technical Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Compatible Material | Pre-painted & galvanized steel coil |
| Thickness | 0.3-0.6 mm |
| Yield Stress | Q235-345 Mpa |
Performance Metrics
6 m/min
Max Forming Speed
5.5 KW
Main Motor Power
12 Mpa
Hydraulic Pressure

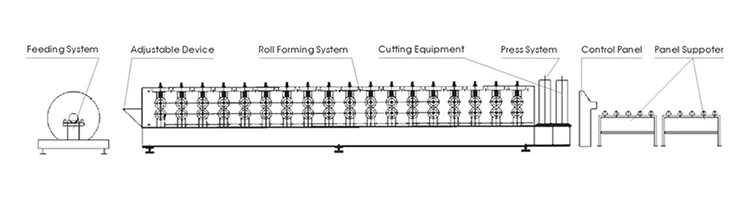

Construction & Control

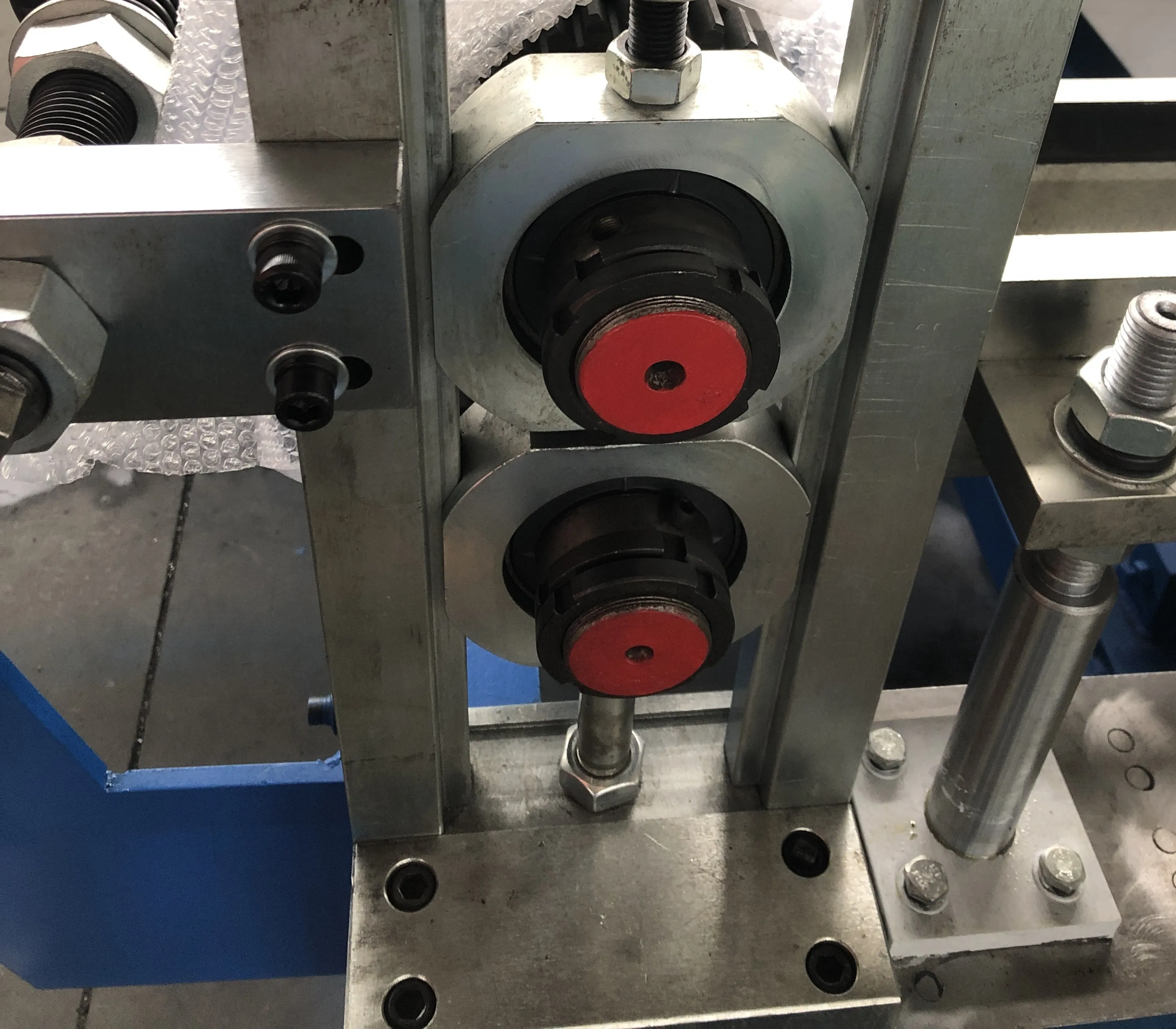

Roller Specifications
- Material: #45 steel
- Treatment: Hard chrome treatment
- Transmission: Chain transmission
- Control System
- PLC ControllerTouch ScreenButton Operation
Physical Dimensions
Dimensions & Weight
- L*W*H: 8000*1500*1500 mm
- Approximate Weight: 8000 KG
