Steel Roof Panel Roll Forming Machine

This rolling mill forms steel roof panels with a hidden joint design, suitable for large-span construction. The machine creates durable and aesthetically pleasing roofing solutions through precise metal forming.

Request a QuotePDF

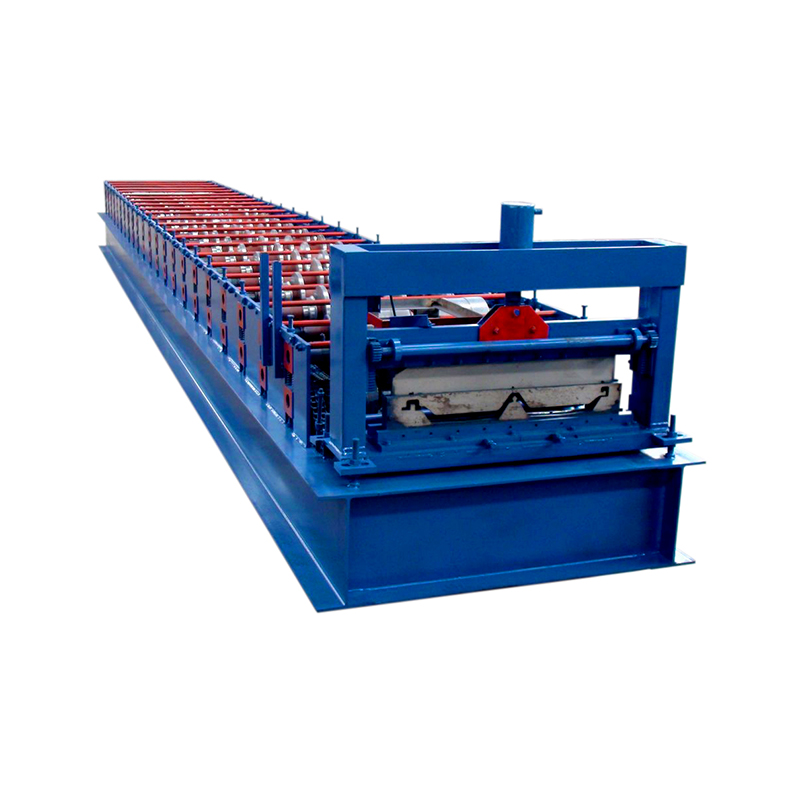

join-hidden steel metal roof machine Joint-hidden type big span Steel Roof panel construct - Image 1

Technical Specifications

Overview

High-Efficiency Roof Panel Production

This automatic roll forming machine is engineered for the precise manufacturing of joint-hidden steel roof panels, specifically designed for large-span construction projects. It features a robust, industrial-grade construction with precision rollers that ensure consistent panel quality and a weather-tight fit. Equipped with an advanced automated control system and a powerful hydraulic unit, this machine offers reliable performance, ease of operation, and high-volume production capabilities for demanding roofing applications.

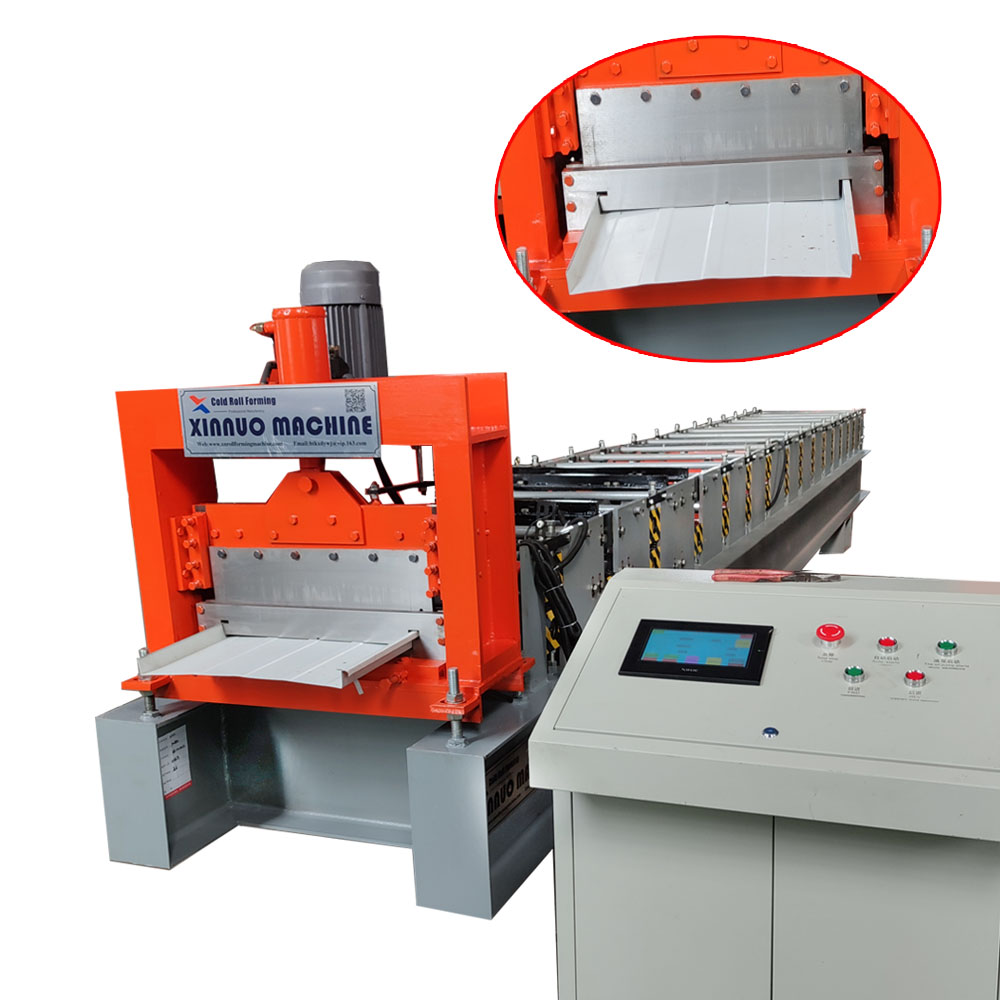

Front view of the automatic roof panel roll forming machine
The machine features a robust build designed for simple operation and consistent quality.

Technical Specifications

Motor Power
3 kW
Voltage
380V
Current Rating
6.8 A
Rotational Speed
1420 r/min
Frequency
50 Hz
Motor Weight
38 kg
Insulation Class
B

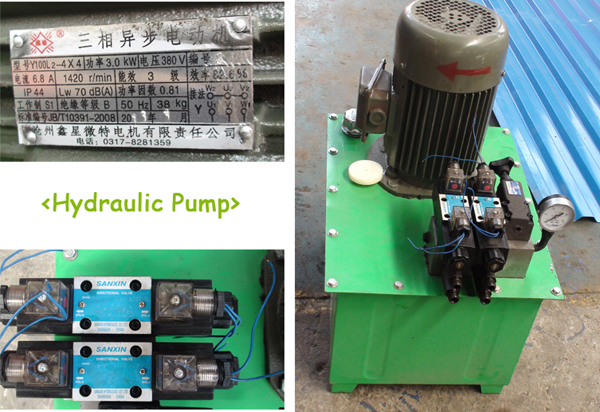

Hydraulic power unit with motor and pump
The hydraulic power unit is equipped with a three-phase asynchronous motor for reliable operation.

Key Features

Capabilities
Automated ControlCold Roll FormingHydraulic Power SystemPrecision FormingHigh-Volume Production

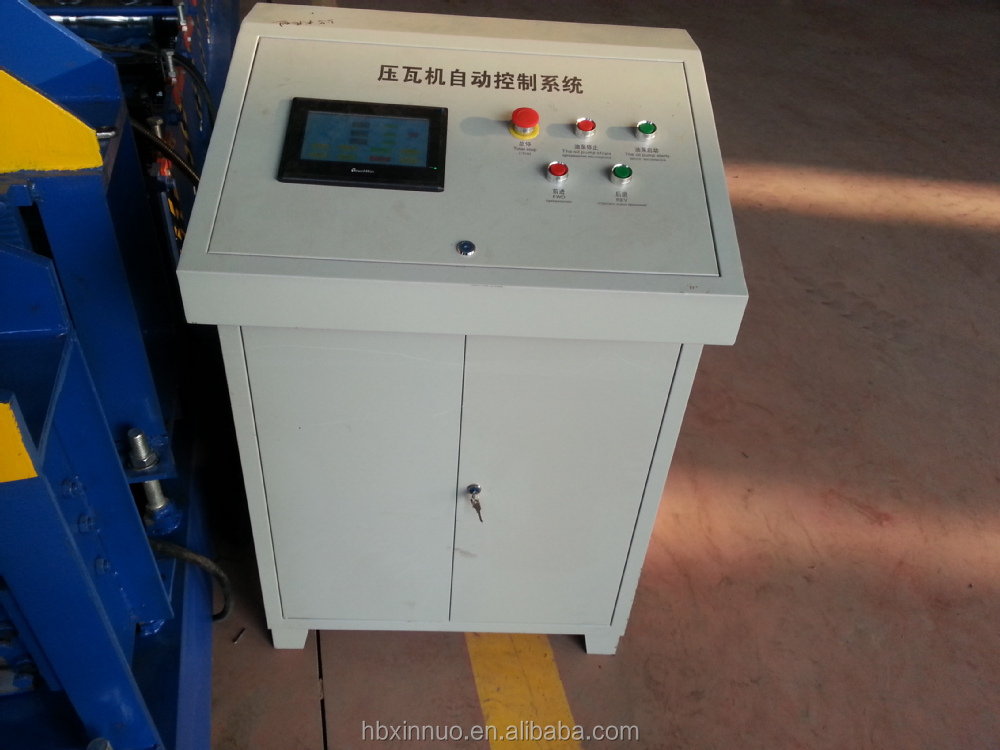

Close up of the automated control system interface
The automated control system provides a user-friendly interface for managing production parameters.

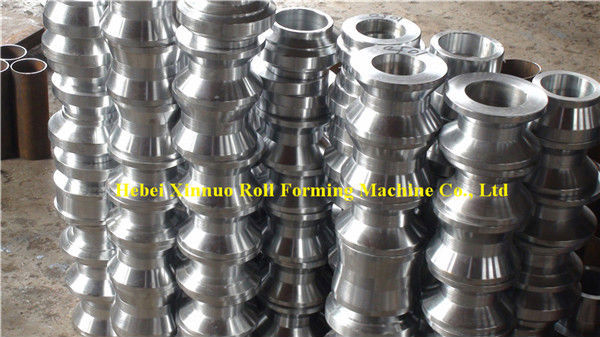

Side profile of the high-precision rolling mill
Precision rolling mill station designed for forming durable, joint-hidden roofing panels.

Applications

Intended Use
Large-Span RoofingIndustrial ConstructionCommercial RoofingJoint-Hidden Panels
