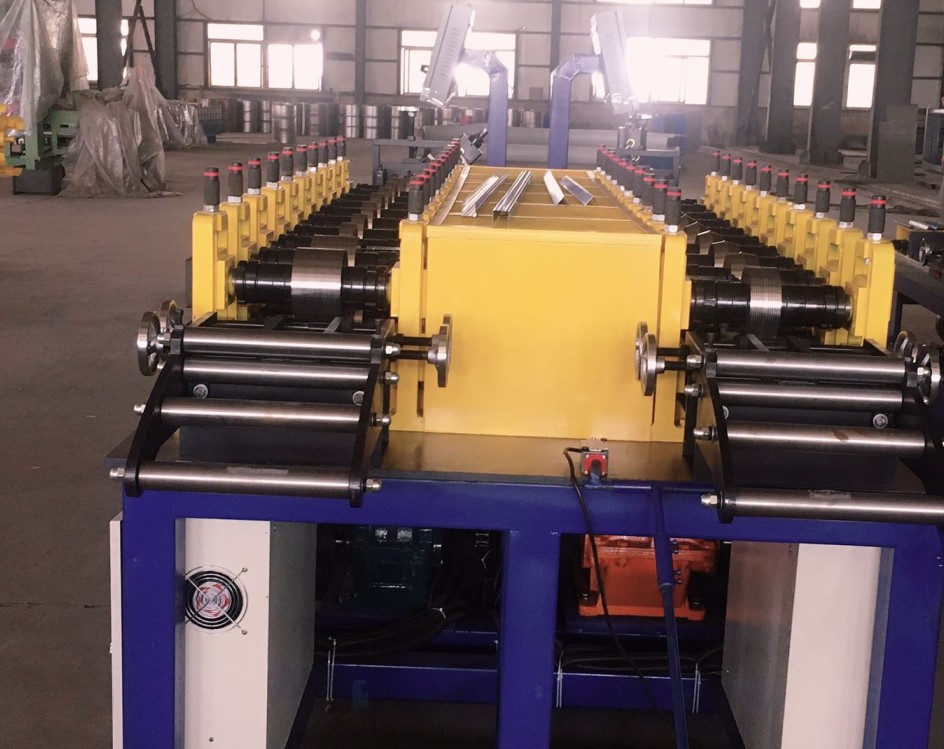

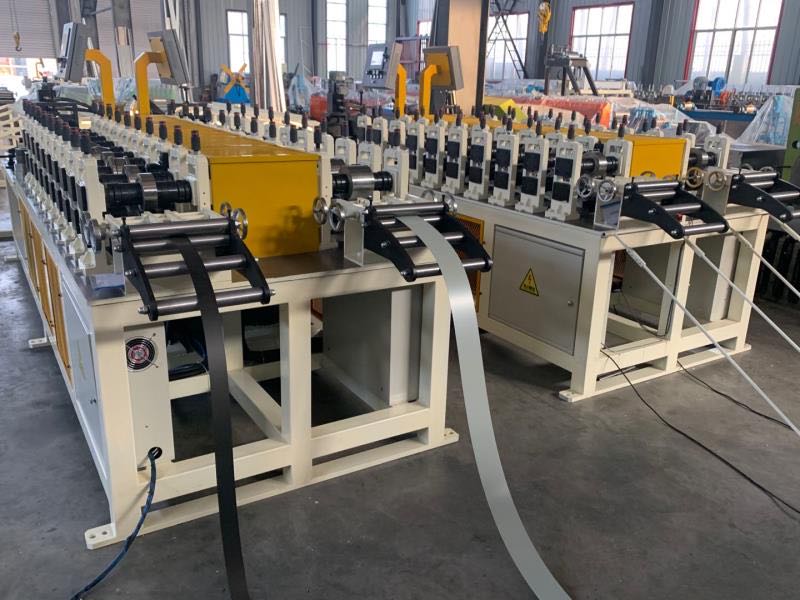

Steel Purlin Roll Forming Machine
This machine is used for the efficient production of steel purlins with UCZ profiles. It shapes galvanized steel sheets using a series of rollers and features hydraulic cutting.
Technical Specifications
Overview
High-Efficiency UCZ Purlin Production
This automated roll forming machine is engineered for the high-precision manufacturing of UCZ-profile steel purlins used in diverse construction applications. Featuring an archway-type forming system and robust gear-drive transmission, the machine ensures consistent structural quality and high-speed output. It is an ideal solution for large-scale production of galvanized steel framing systems, roofing, and wall cladding components.
Technical Specifications
Performance Metrics
50 m/min
Max Forming Speed
5.5 KW
Main Motor Power
3 KW
Hydraulic Motor Power
Mechanical Details
| Feature | Specification |
|---|---|
| Frame Type | Completed square frame |
| Forming Type | Archway type |
| Rollers | 10-11 Steps with leveling |
| Transmission | Gear drive |
| Spindle Diameter | 50 mm |

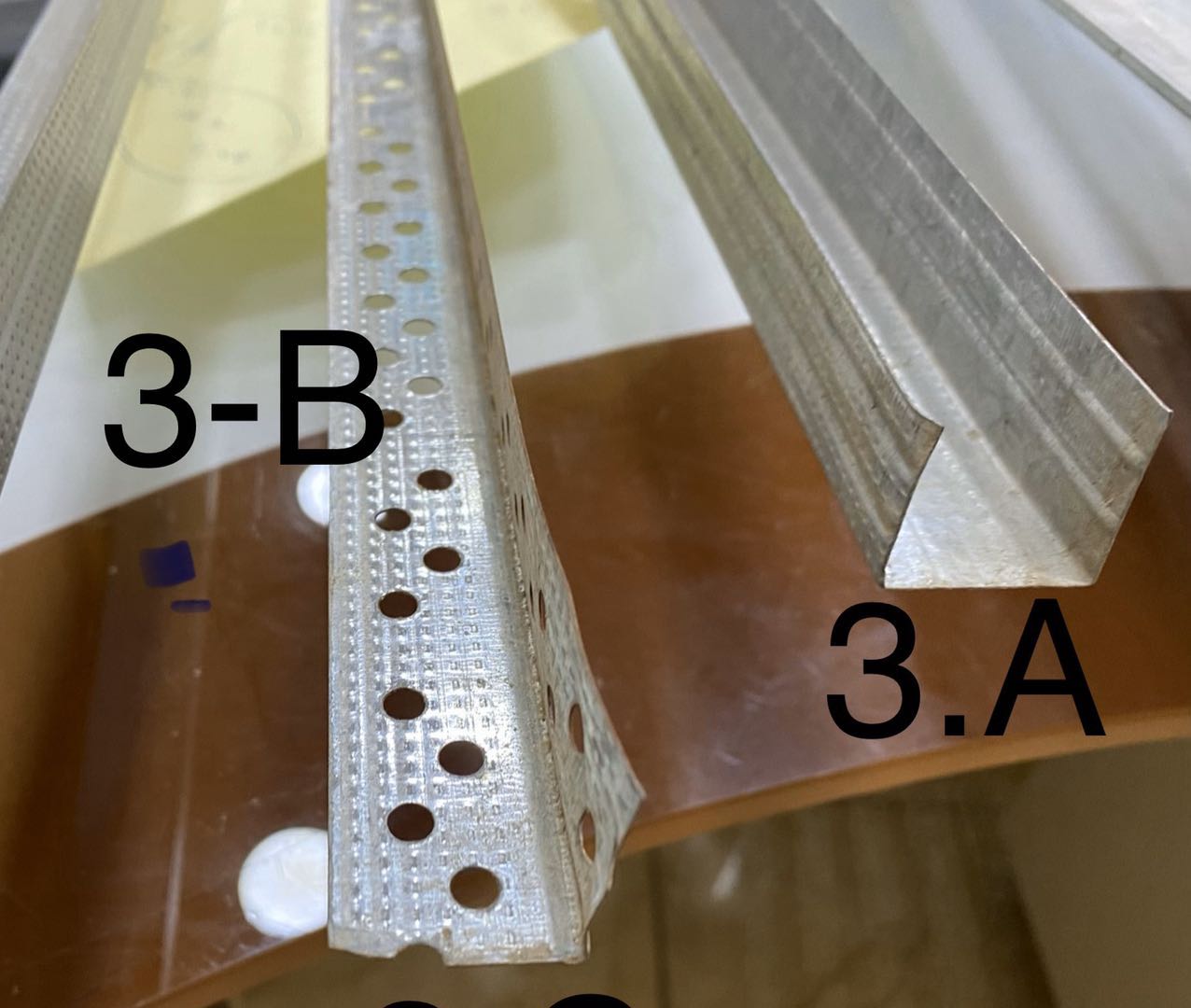

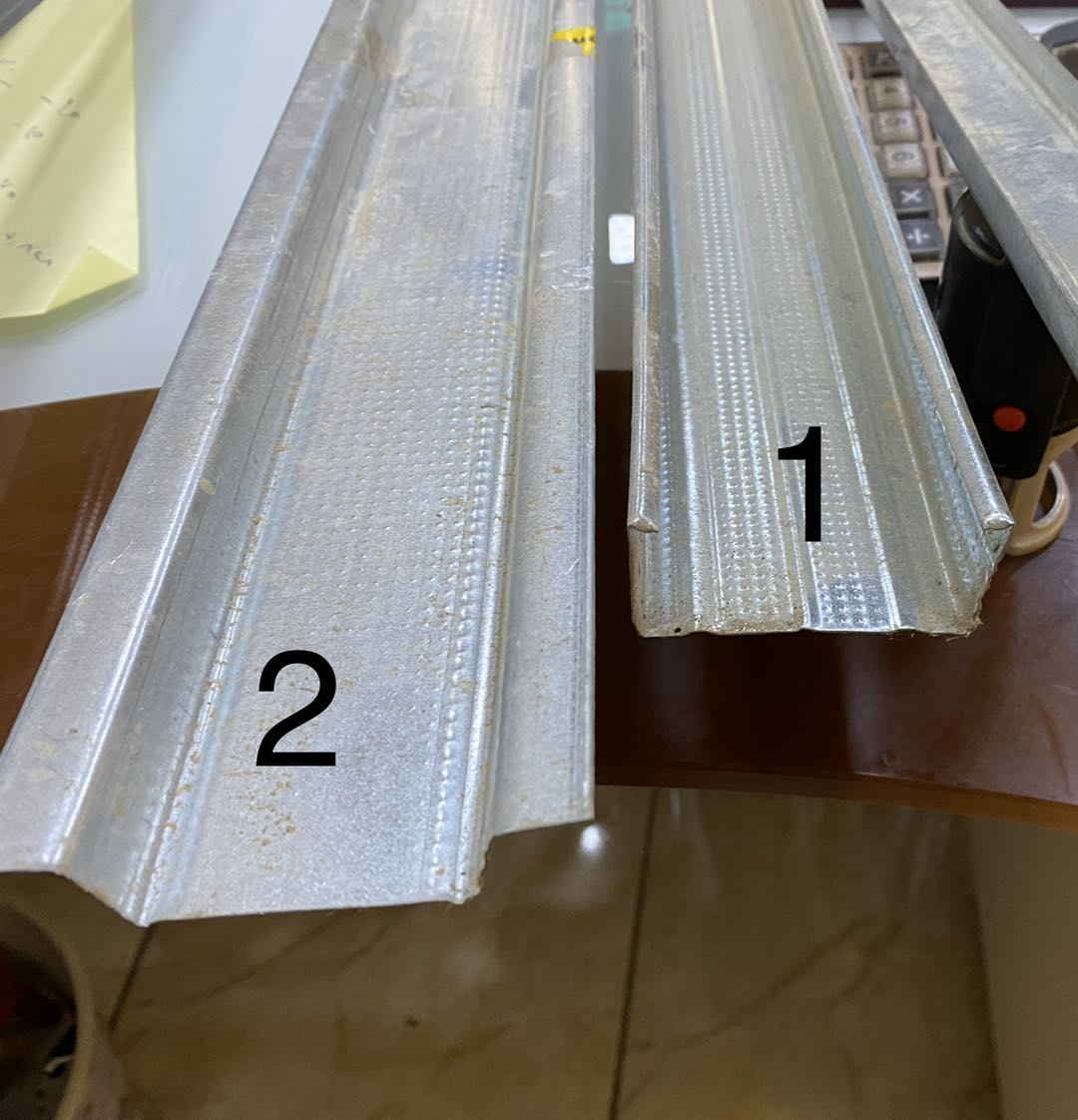

Material and Compatibility
- Material Standards
- Galvanized Steel Sheet45# Quality Steel Shafting
Compliance
Regulatory Compliance
CE CertifiedDirective 2006/42/ECSGS Verified
