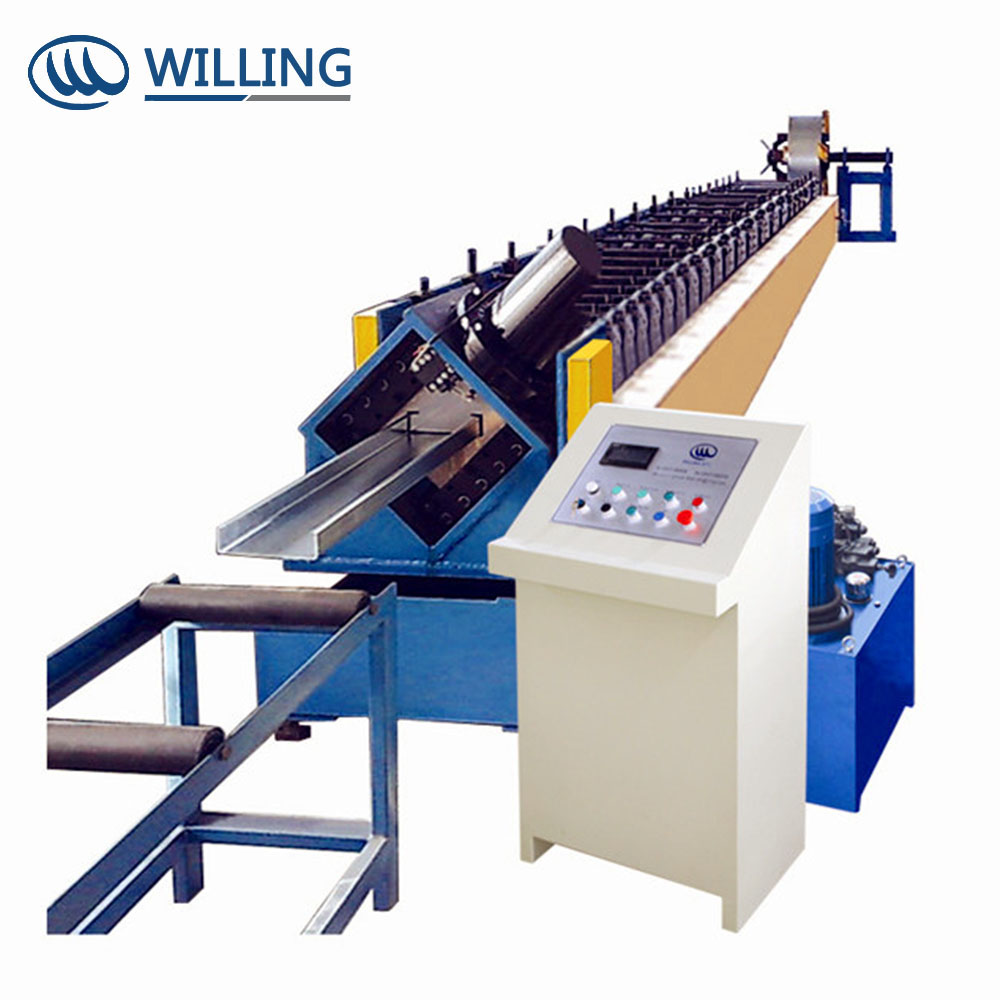

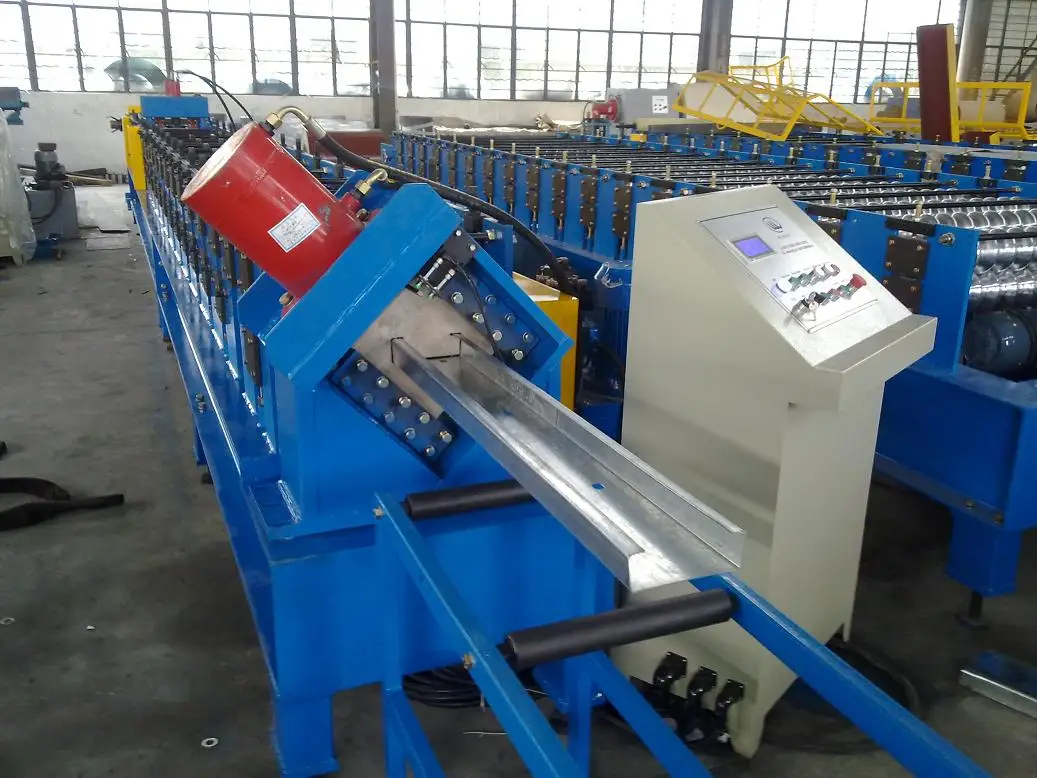

Steel Purlin Cold Roll Forming Machine
This steel purlin roll forming machine is easy to operate and includes remote control functionality. It offers lifetime video online service for support.
Technical Specifications
Overview
High-Efficiency Steel Purlin Production
This Steel Purlin Cold Roll Forming Machine is designed for the high-precision manufacturing of C, Z, and U-shaped profiles. It features a robust construction with an automated PLC control system and remote control capabilities for easy operation. Ideal for industrial construction applications, the system ensures consistent quality with a lifetime video online service for maintenance support.
Performance Metrics
Key Performance Metrics
15 m/min
Max Forming Speed
3 mm
Max Thickness
24 m
Total Line Length
Material Specifications
Compatible Materials
| Parameter | Specification |
|---|---|
| Material Type | Galvanized steel coil |
| Thickness Range | 1.5 - 3.0 mm |
| Yield Stress | Q235 - 345 Mpa |
Technical Configuration

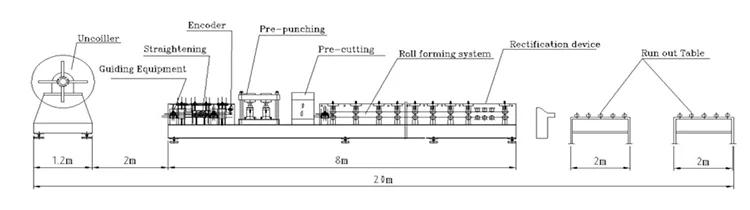

System Components
- Uncoiler (1.2m)
- Guiding & Straightening Equipment
- Encoder System
- Pre-punching & Pre-cutting Stations
- Roll Forming System
- Rectification Device

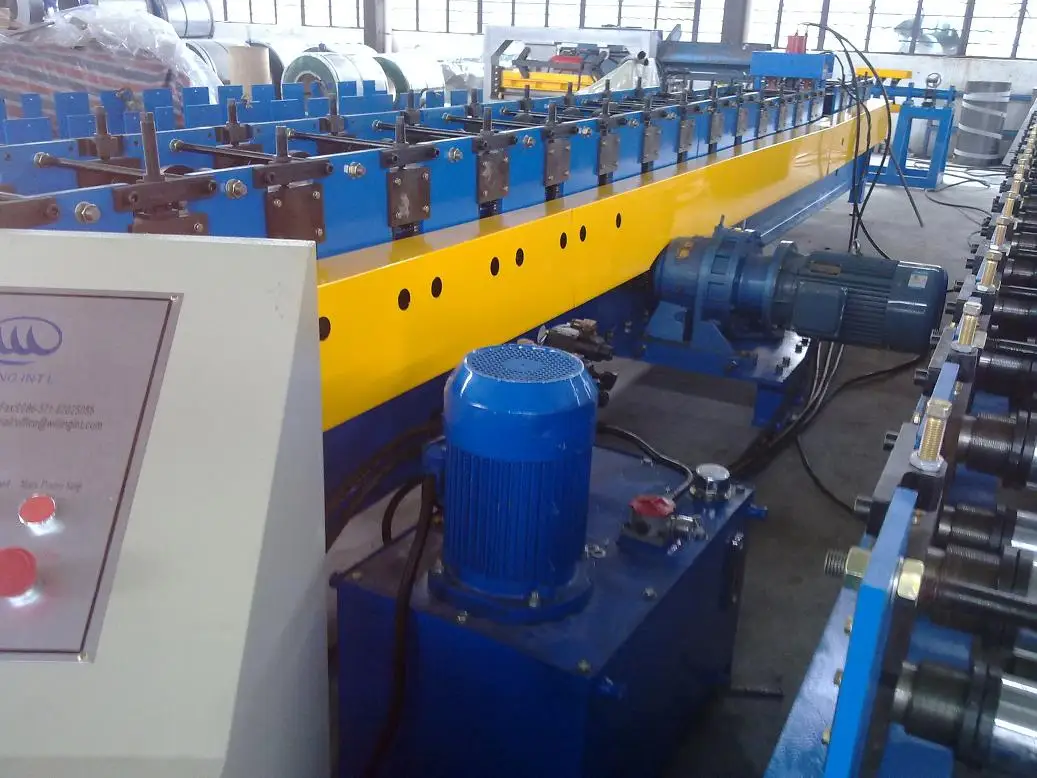

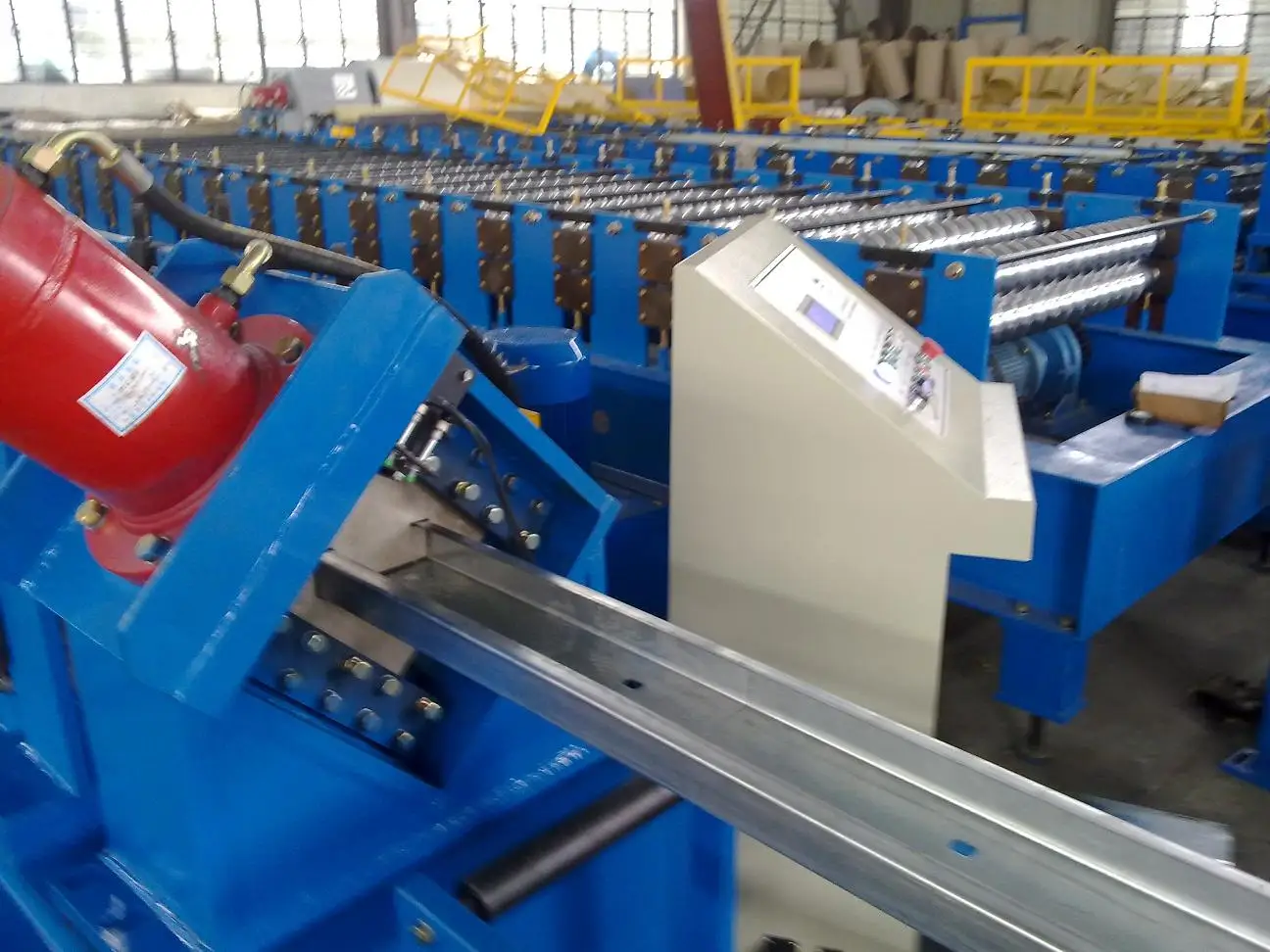

- Hydraulic Cutting System
- Run-out Table
- Roller Details
- Bearing steel GCr15 with chain transmission drive
Control & Operation

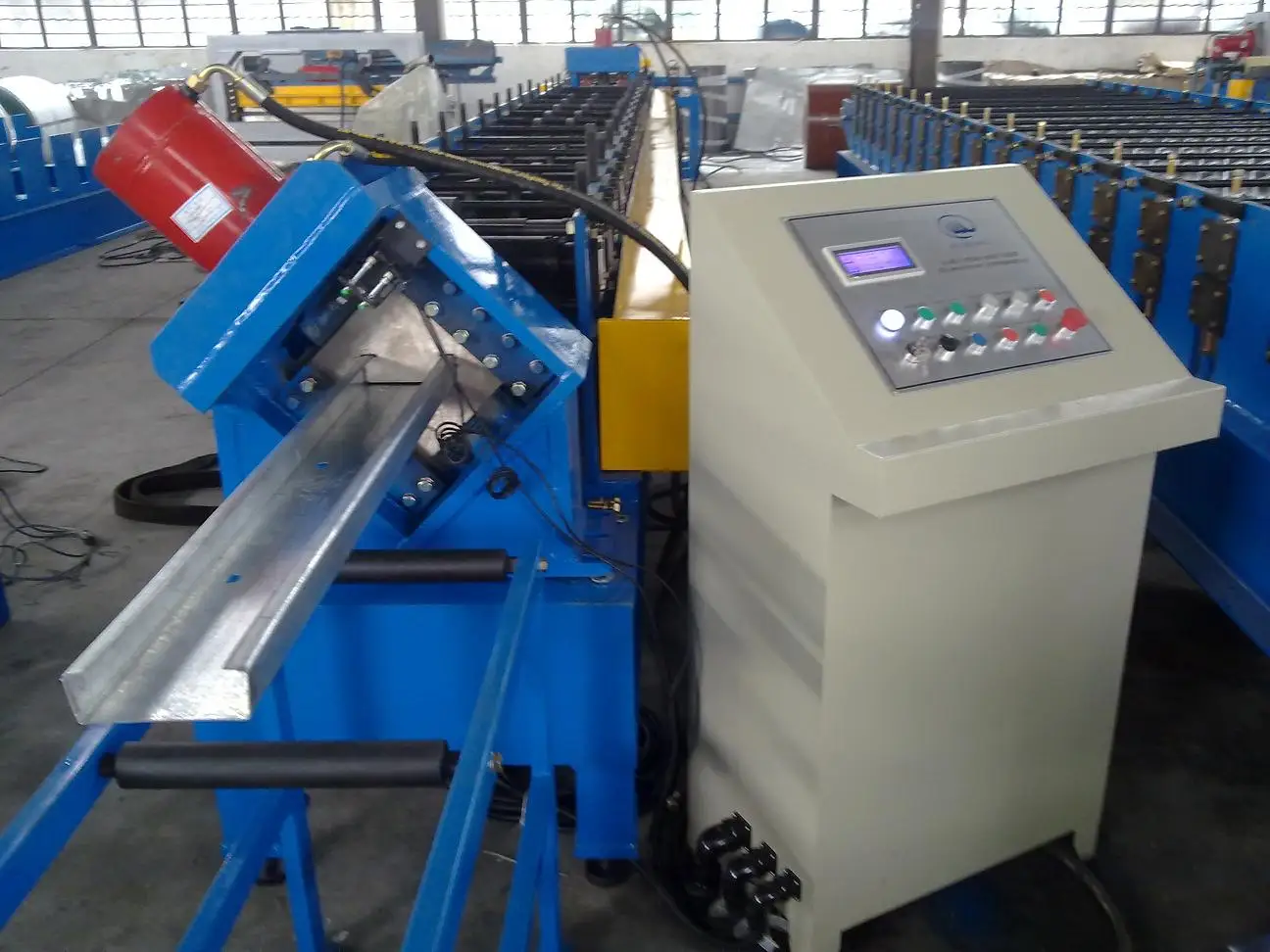

- Control System
- PLC Controller with Remote Control
- Operational Features
- Easy to OperateRemote ControlAutomated ProcessVideo Online Service
Output Profiles
Supported Profiles
C ShapeZ ShapeU Shape
Compliance
- Quality Standards
- CE CertifiedSGS AuditedISO 9001
