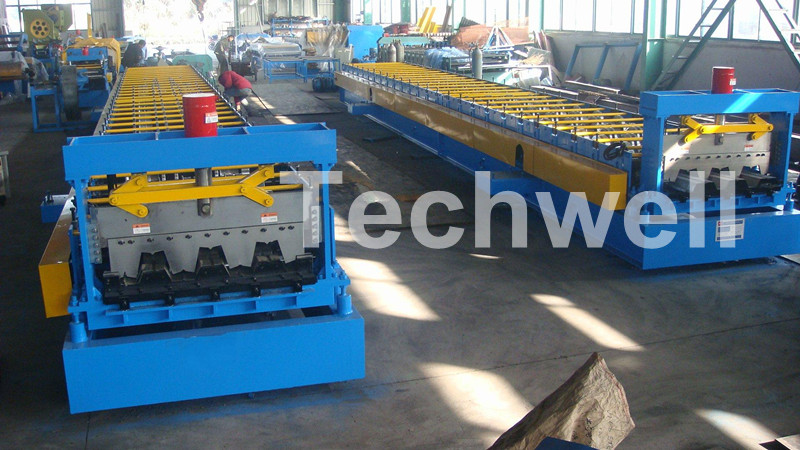

Steel Deck Roll Forming Machine
This steel deck roll forming machine is engineered for efficient production of steel and metal floor decking. The robust machine employs precise roll forming technology, ensuring consistent, high-quality output for diverse construction needs.
Technical Specifications
Overview
High-Efficiency Floor Decking Solution
This advanced roll forming machine is engineered for the precise production of galvanized steel floor decking panels. Designed for high-volume construction applications, it features a robust 24-stand forming line and an automated PLC control system to ensure consistent quality and dimensional accuracy. With its heavy-duty construction and integrated hydraulic cutting system, it offers a reliable, low-maintenance solution for manufacturing durable floor decking profiles.
Technical Specifications
Forming Speed
12 m/min
Maximum Speed
- Compatible Material Thickness
- 1.2 mm
- Main Motor Power
- 18.5 kW
- Hydraulic Station Power
- 3 kW
- Hydraulic Pressure
- 10-12 Mpa
- Forming Stands
- 24
- Total Machine Weight
- 1800 kg
Operational Features
- Control System
- PLC Automated Control
- Length Tolerance
- ±2mm per 10m
- Power Requirements
- 380V, 3 Phase, 60Hz
Equipment Included
Included Components
- Passive uncoiler
- Guiding equipment
- Roll forming equipment
- Main machine body
- Post-cut equipment
- Hydraulic station
- PLC controlling desk
- 2x Supporter tables
