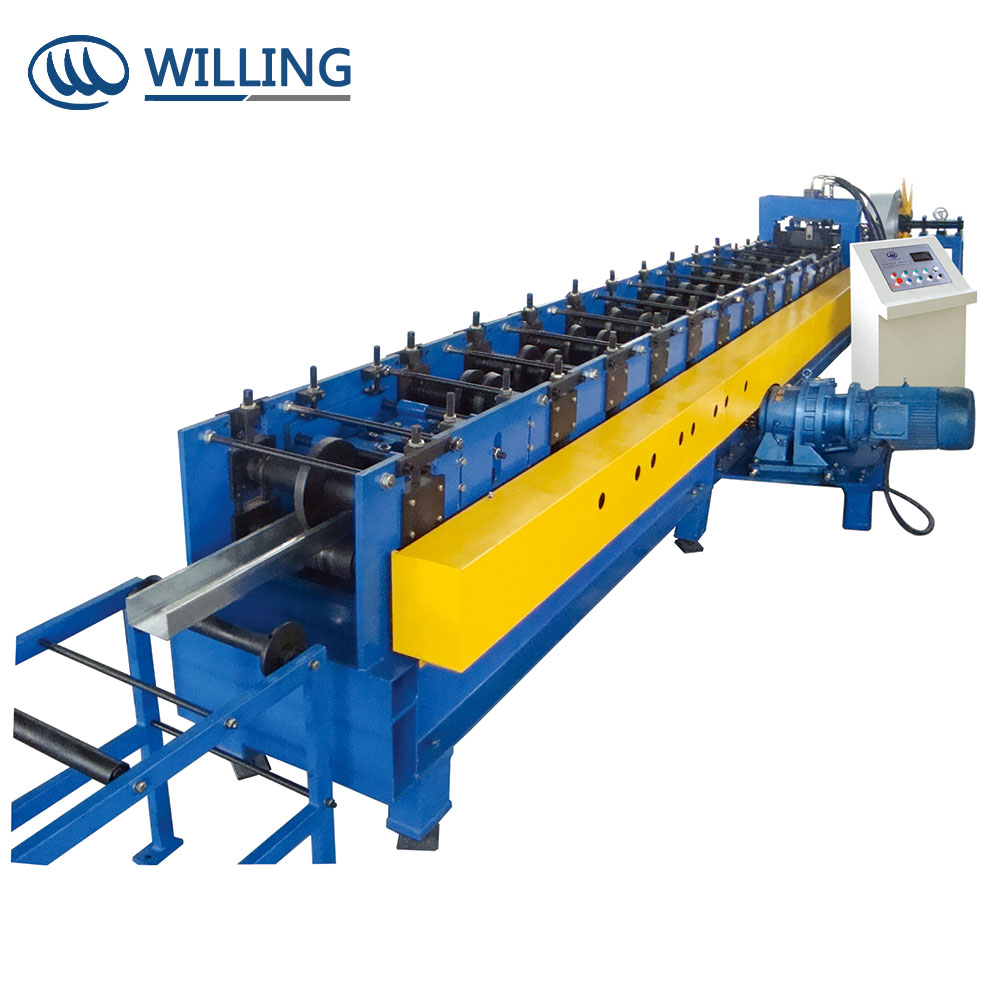

Steel C Purlin Roll Forming Machine
This steel C purlin roll forming machine produces C-shaped profiles for roofing structures. It is easy to operate and offers lifetime video online service.
Technical Specifications
Overview
High-Efficiency Steel Purlin Production
This Steel C Purlin Roll Forming Machine is engineered for the precise and efficient production of structural steel profiles including C, Z, and U shapes. Designed for ease of use, it features a remote control system and is supported by lifetime online video service to ensure continuous operation. This robust system is ideal for manufacturing high-quality purlins used in industrial roofing and wall cladding applications.
Key Features
Key Features
15 m/min
Max Forming Speed
3 mm
Max Thickness
20 m
Total Line Length
Material Specifications
- Input Material
- Galvanized steel coil
- Material Thickness Range
- 1.5 - 3.0mm
- Yield Stress
- Q235-345 Mpa
Technical Configuration
- Supported Profiles
- C shapeZ shapeU shape
- Roller Material
- Bearing steel GCr15
- Drive System
- Chain transmission

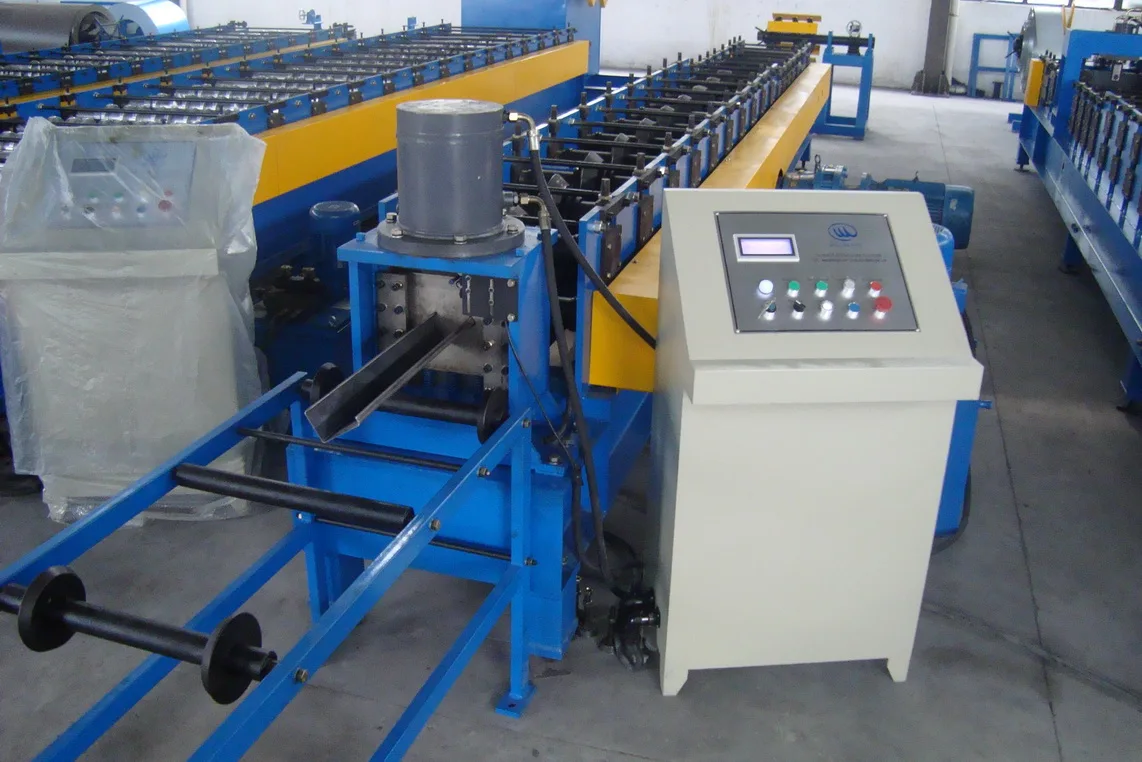

Control System
Controller Type
PLCRemote Control

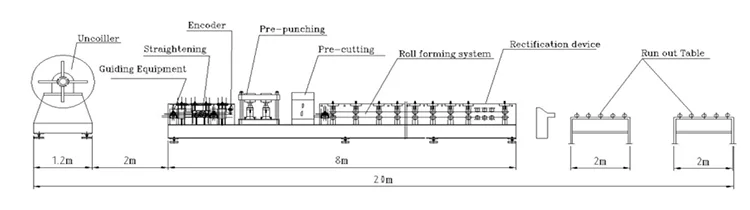

Production Line Layout
System Components
| Section | Length | Functions Included |
|---|---|---|
| Uncoiler Section | 1.2m | Material decoiling |
| Straightening & Guiding | 2.0m | Material alignment and flattening |
| Main Forming Section | 8.0m | Pre-punching, Pre-cutting, Roll forming |
| Output Section | 4.0m (2x2m) | Rectification and Run-out tables |
Compliance & Quality
- Certifications
- CEISO 9001SGS
