Stationary Concrete Batching Plant
This stationary concrete batching plant is designed for high-volume concrete production. It features automated operation and precise mixing for consistent output.
Technical Specifications
Overview
High-Efficiency Stationary Concrete Production

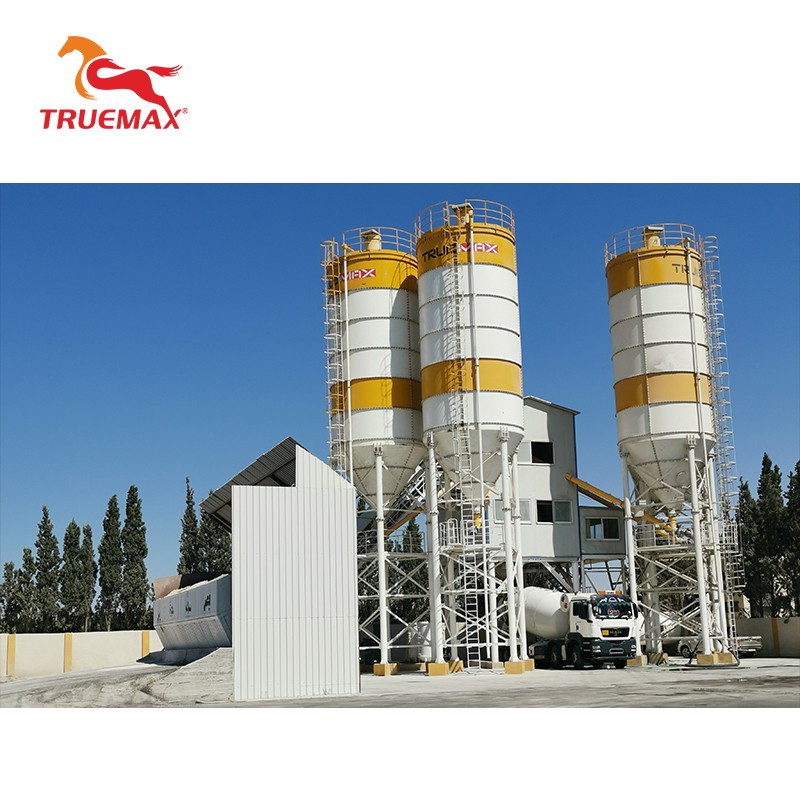

The CBP120S is a high-capacity stationary concrete batching plant designed for large-scale construction projects and ready-mix production. It features a theoretical productivity of 120 m³/h and utilizes a robust twin-shaft mixer to ensure consistent, high-quality output. Engineered for durability and environmental compliance, the plant incorporates a fully enclosed structure to minimize dust and noise pollution.
Performance Metrics
Key Performance Indicators
120 m³/h
Theoretical Productivity
60 s
Automatic Cycle Period
3,000 L
Mixer Nominal Capacity
130 kW
Total Power
Mixing System
Mixer Specifications
| Model | Dry Filling Capacity (L) | Compacted Yield (L) | Mixing Power (kW) | Weight (T) |
|---|---|---|---|---|
| JS1000 | 3,000 | 2,000 | 2x37 | 7.5 |
| JS2000 | 4,500 | 3,000 | 2x55 | 9.2 |
| JS3000 | 6,000 | 4,000 | 2x75 | 11.8 |
| JS4000 | 1,500 | 1,000 | 2x22 | 4.3 |

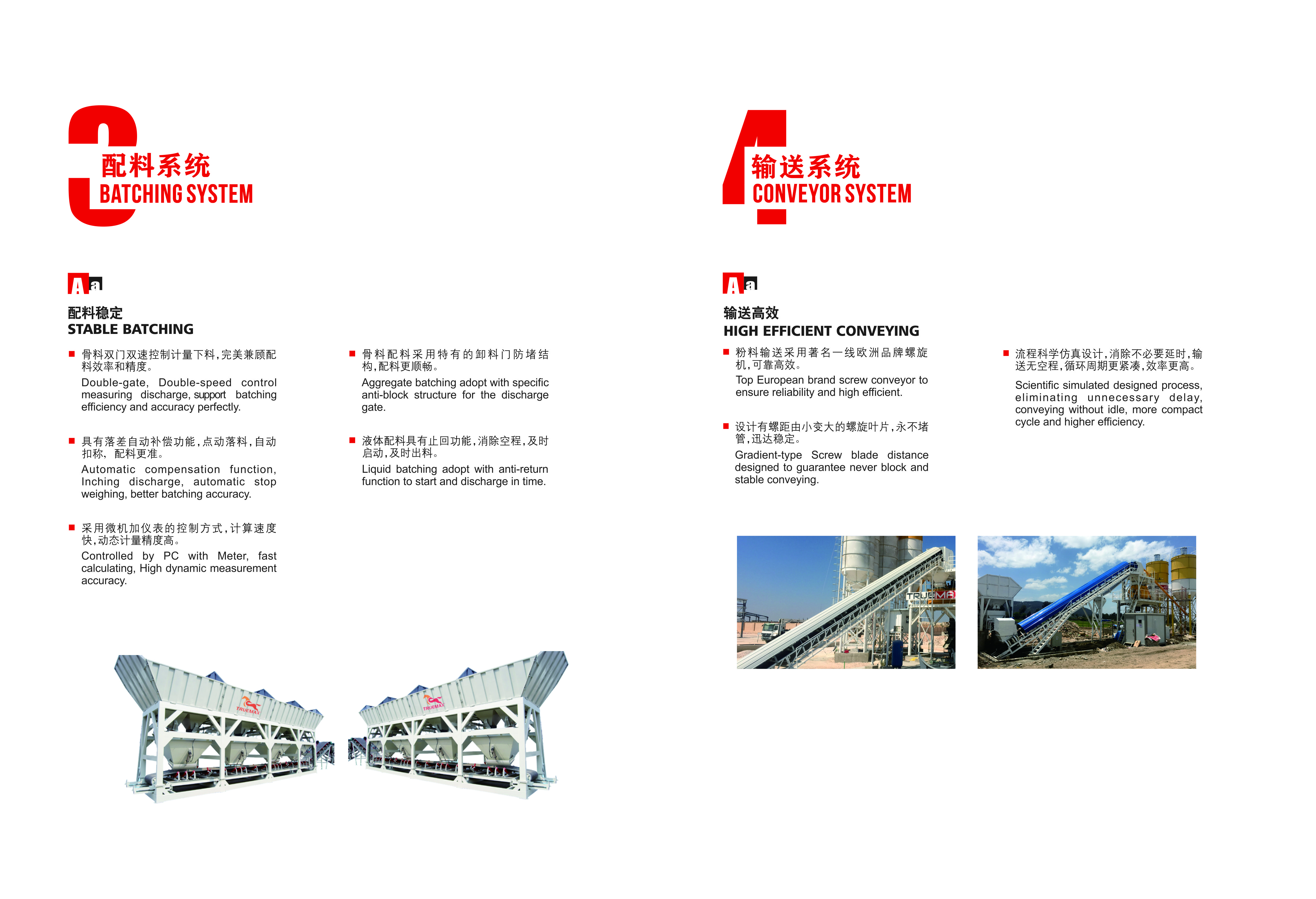

Batching & Weighing
Weighing Range & Accuracy
| Material | Range (kg) | Accuracy |
|---|---|---|
| Aggregate | 1666 - 5000 | ±2% |
| Cement | 400 - 1200 | ±1% |
| Water | 200 - 600 | ±1% |
| Additive | 2x(20 - 60) | ±1% |
Storage & Materials
- Aggregate Storage
- 4 x 20 m³ Bin Capacity
- Max Aggregate Size
- 60/80 mm (Crushed Stone/Pebble)

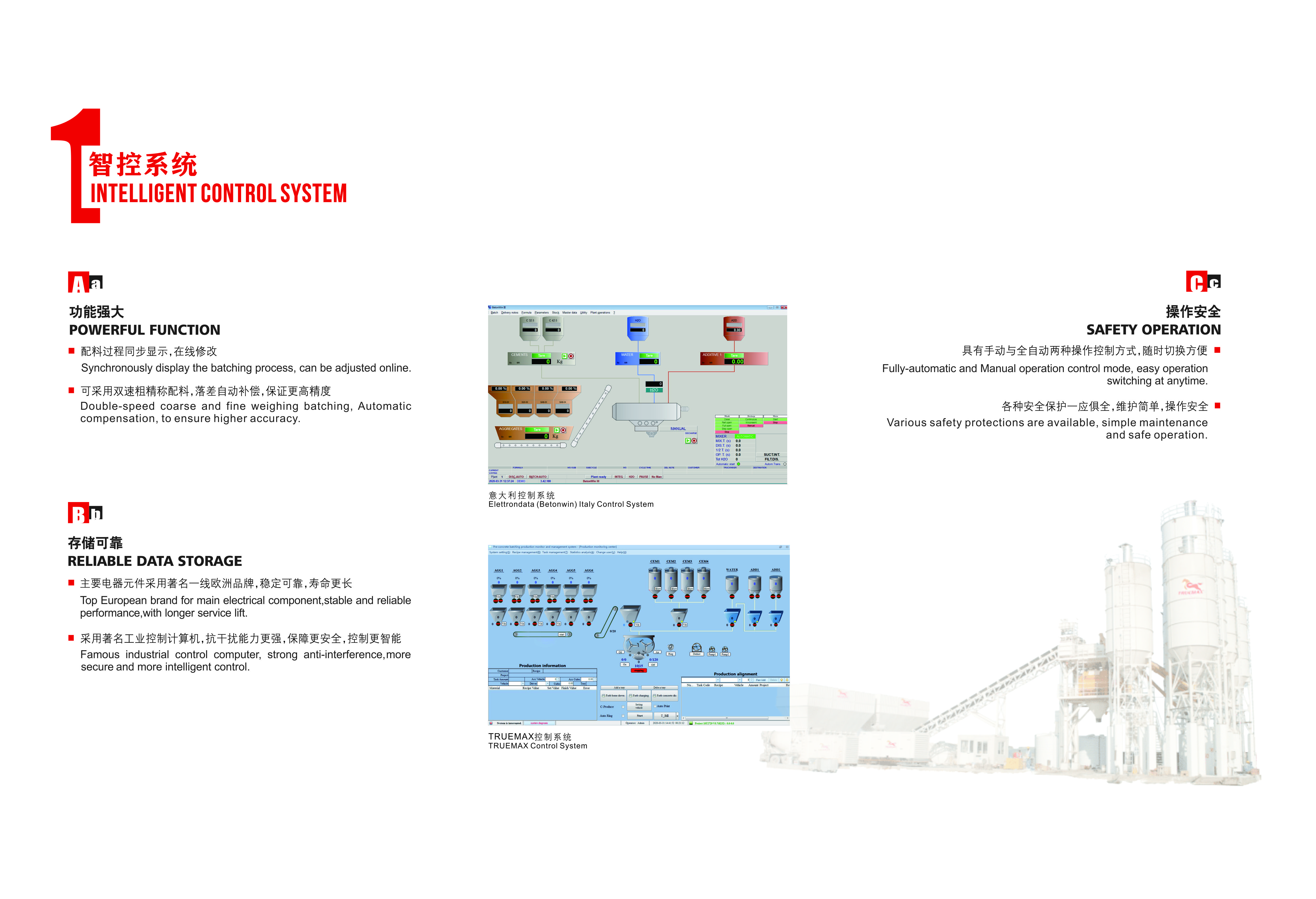

Control System
Control System Features
- Synchronous display of batching process
- Double-speed coarse and fine weighing
- Automatic drop compensation for higher accuracy
- Fully-automatic and manual operation modes
- Industrial control computer with strong anti-interference
- Remote intelligent diagnostic and upgrade capabilities
Conveyor System
Screw Conveyor Options
| Model | Capacity (t/h) | Reduction Ratio |
|---|---|---|
| Φ219 | 40 | 1:07 |
| Φ273 | 80 | 1:07 |
| Φ323 | 110 | 1:10 |

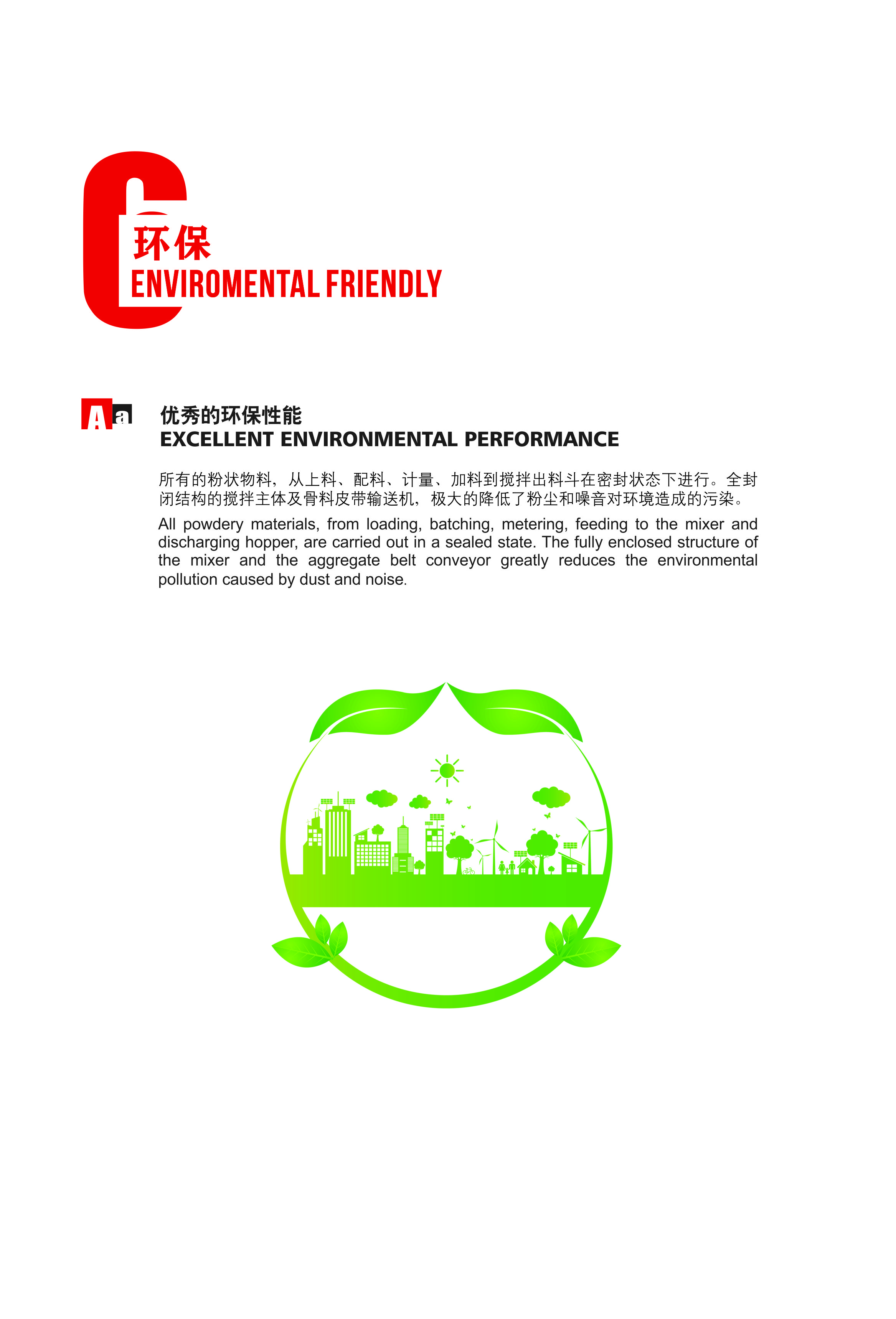

Environmental Performance
- Environmental Features
- Fully Enclosed StructureDust ReductionNoise ReductionSealed Material Handling
Compliance
Quality Certifications
ISO 9001:2015CE CertifiedISO 14000OHSMS 18000
