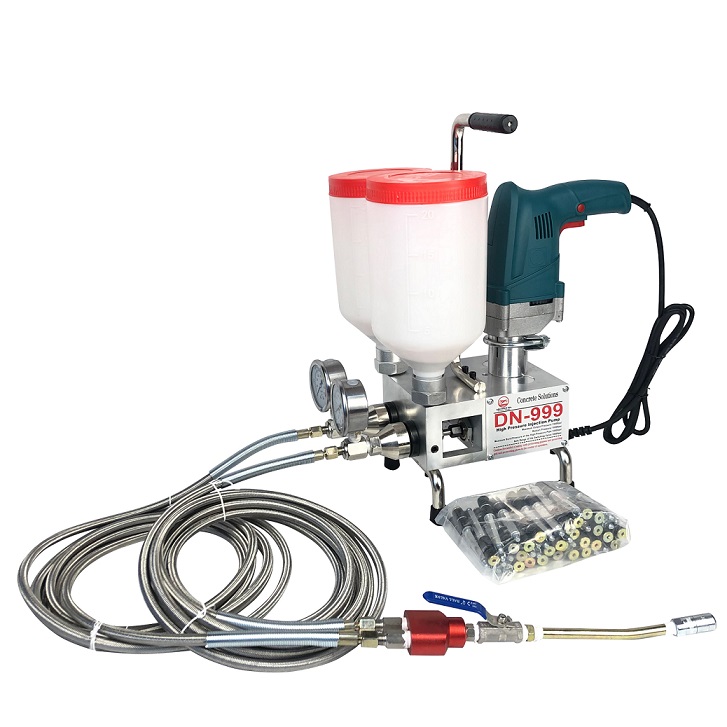

Concrete Repair Injection Pump
This injection pump is designed for concrete repair using polyurethane and epoxy resins. It features dual material reservoirs and precision pressure gauges for controlled and accurate injection into cracks and voids.
Technical Specifications
Product Overview
High-Performance Injection System
This versatile injection pump is engineered for professional concrete repair applications, including polyurethane and epoxy resin injection. Featuring a robust 1400W power system, it supports both single-component and two-component (1:1 ratio) operations. The unit is designed for durability, ease of maintenance, and precise control, making it an essential tool for sealing cracks, voids, and joints in structural concrete.
Technical Specifications
- Power Output
- 1400 W
- Maximum Burst Pressure
- 10000 psi
- Practical Injection Range
- 8000 psi
- Maximum Output
- 0.7 L/min
- Voltage Compatibility
- 110V - 240V, 50/60Hz
Features & Capabilities
System Configuration
1:1 RatioSingle ComponentDual Reservoir
Included Components
- Pressure gauges
- Hoppers
- Hose set (mechanical packer version)
- Variable speed power drill
- Supported Materials
- PolyurethaneEpoxy
Design & Build
Design Highlights
- Compact & sturdy design
- Lightweight construction
- Stainless steel braided hoses
- Easy to clean and maintain
