Static Var Generator SVG 100-400Kvar FCL Modular Three Phase 50Hz 400V
This static var generator provides reactive power compensation and harmonic control. The three-phase unit also features unbalance control and a modular design for flexible use in low or high voltage systems.
Technical Specifications
Overview

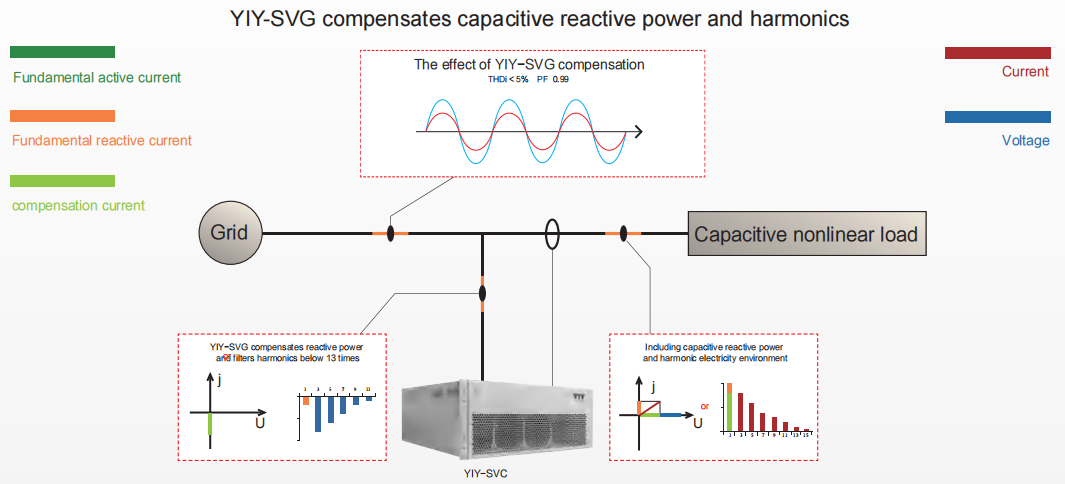

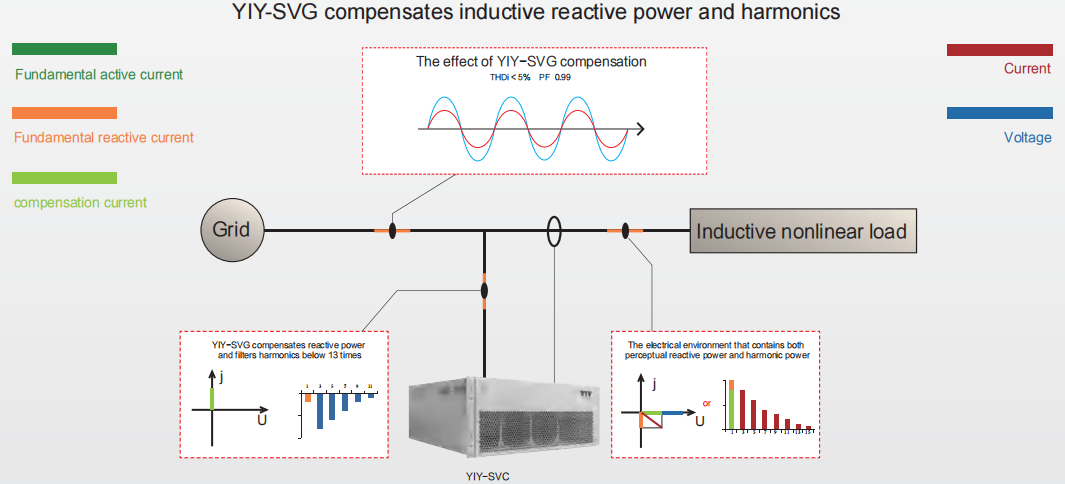

Advanced Reactive Power & Harmonic Control

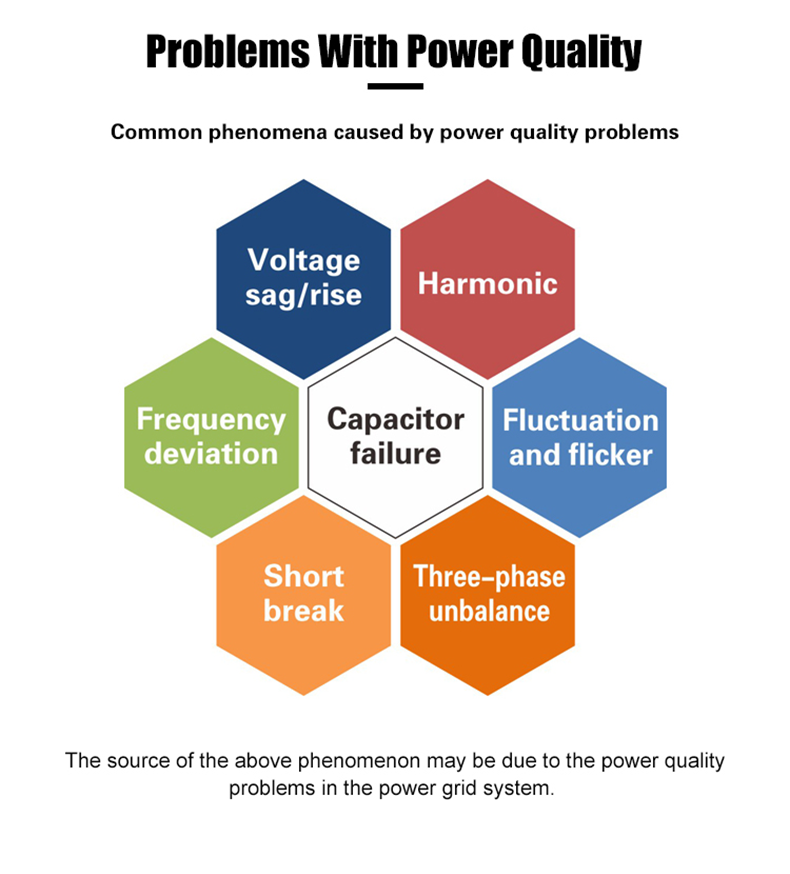

The Static Var Generator (SVG) is a high-performance, modular solution designed to address power quality issues in low and high voltage systems. It provides instantaneous reactive power compensation, harmonic control, and three-phase unbalance correction to ensure grid stability. By implementing this technology, facilities can achieve longer equipment lifetimes, reduced energy losses, and full compliance with demanding grid codes.
Core Performance
Performance Metrics

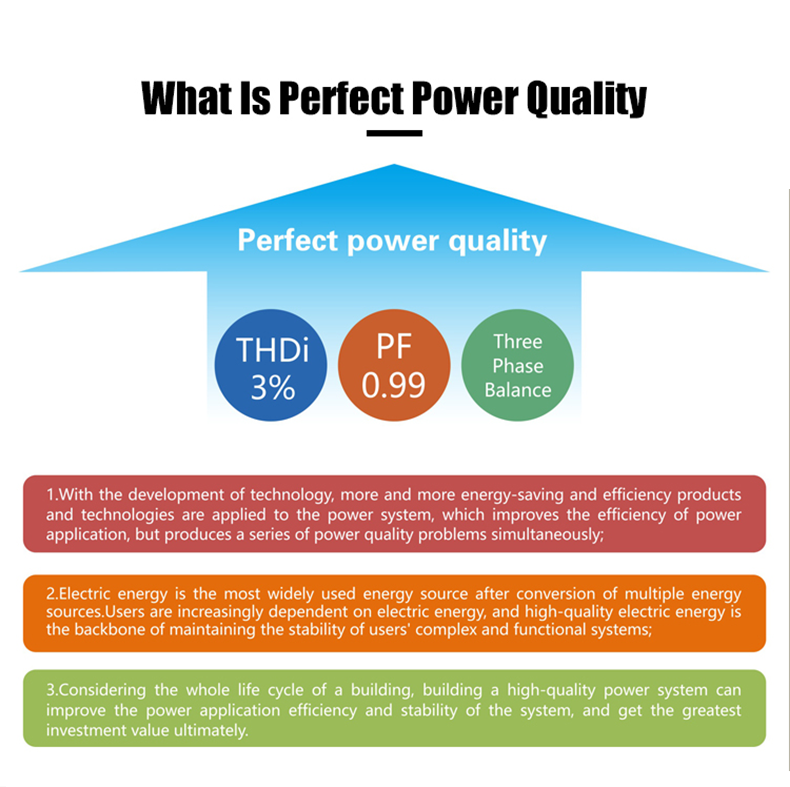

0.99
Target Power Factor
3 %
Target THDi
50 Hz
System Frequency
400 V
Rated Voltage
Technical Specifications
Compensation Capacity
- Modular: 30kVar, 50kVar, 75kVar, 100kVar
- FCL Cabinet: 100kVar, 200kVar, 250kVar, 300kVar, 400kVar
- Cooling Method
- Forced air cooling
- Response Type
- Instantaneous stepless reactive power compensation
- Harmonic Filtering Range
- Filters harmonics below the 13th order
Design & Interface
Control Interface

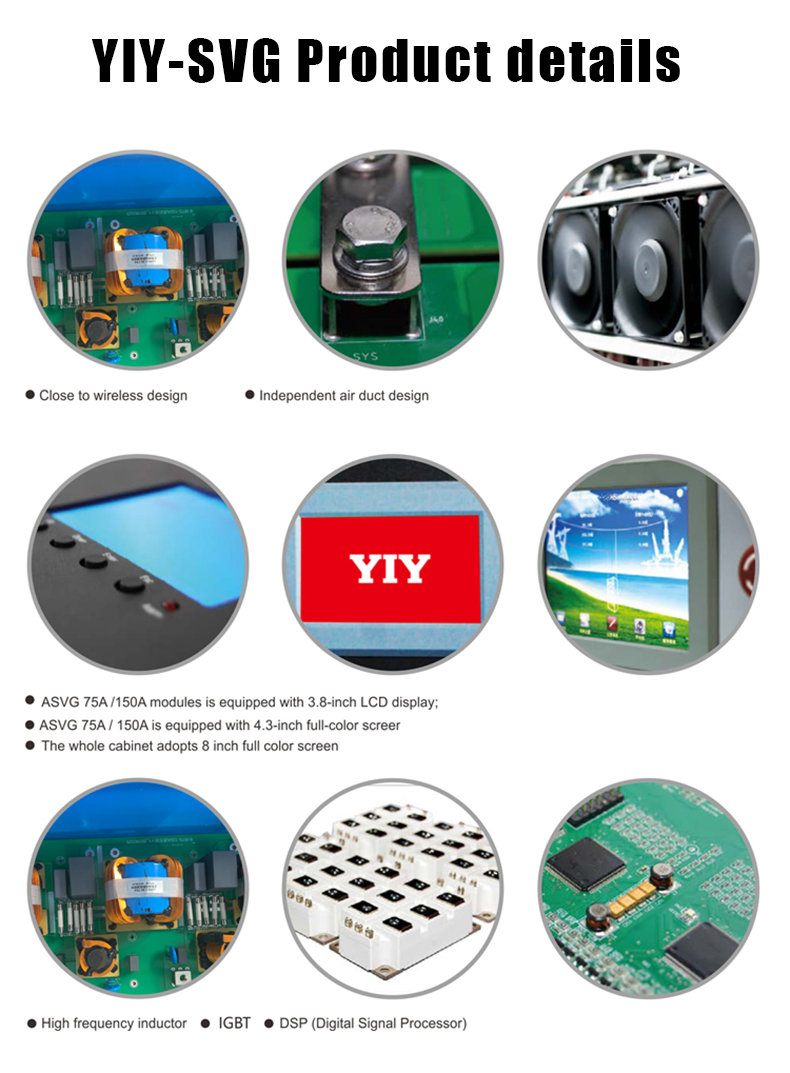

- 75A/150A Modules: 3.8-inch LCD or 4.3-inch full-color screen
- Full Cabinet: 8-inch full-color screen
- Hardware Architecture
- IGBT TechnologyDSP (Digital Signal Processor)High-frequency InductorsIndependent Air DuctModular Design
Model Range

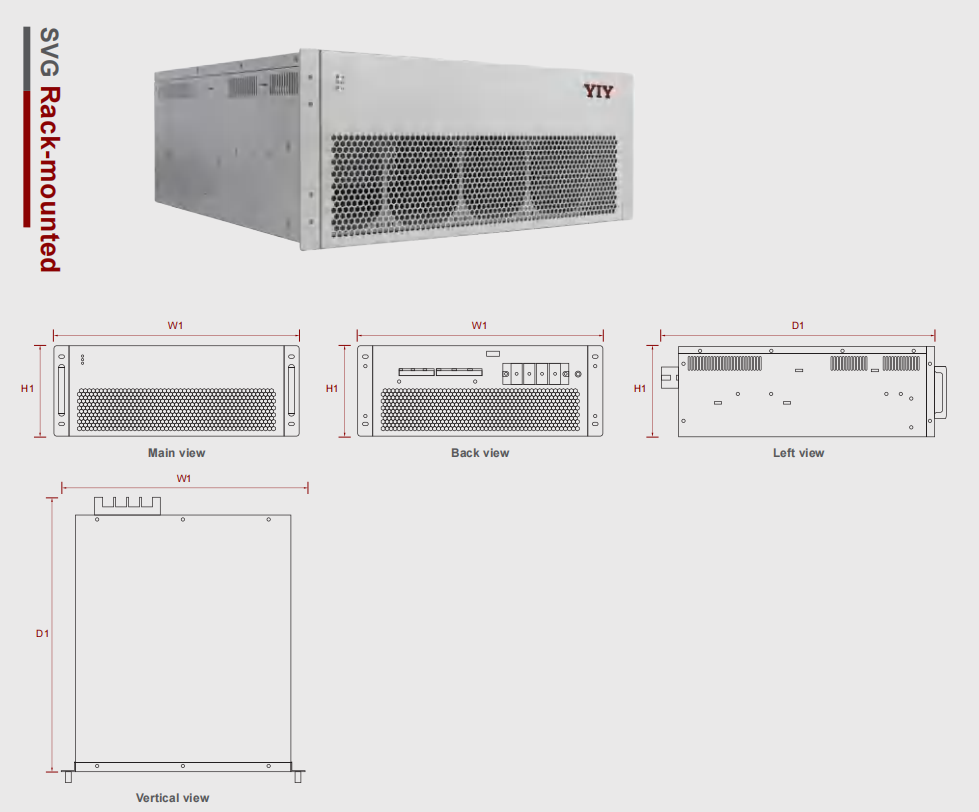

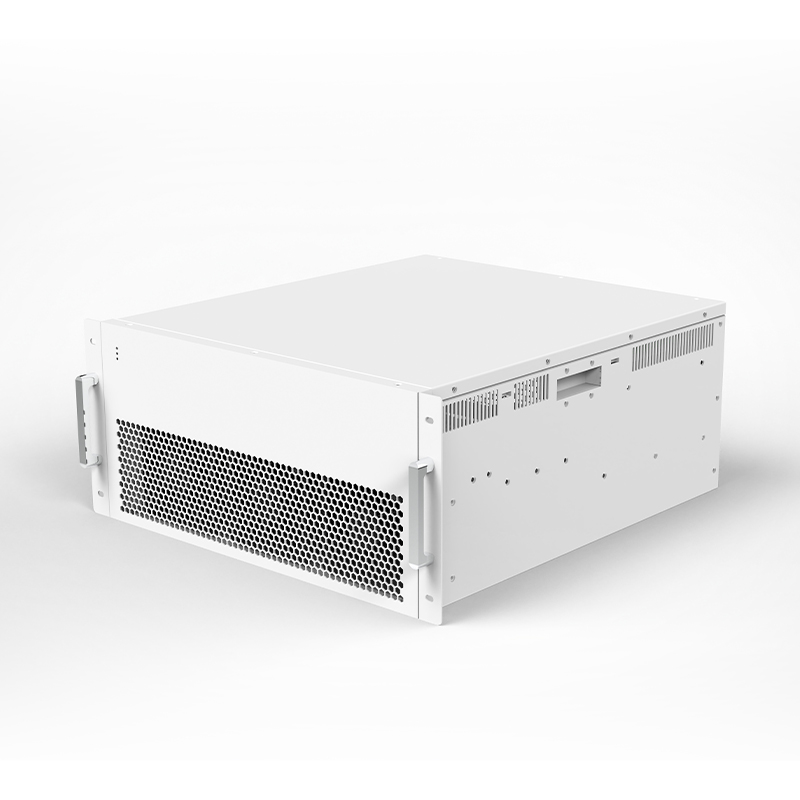

Rack-Mounted Module Specifications
| Capacity (kVar) | Voltage (V) | Dimensions (DxWxH mm) |
|---|---|---|
| 35 | 400 | 486×530×95 |
| 50 | 400 | 599×513×190 |
| 75 | 400 | 549×470×230 |
| 100 | 400 | 609×550×215 |

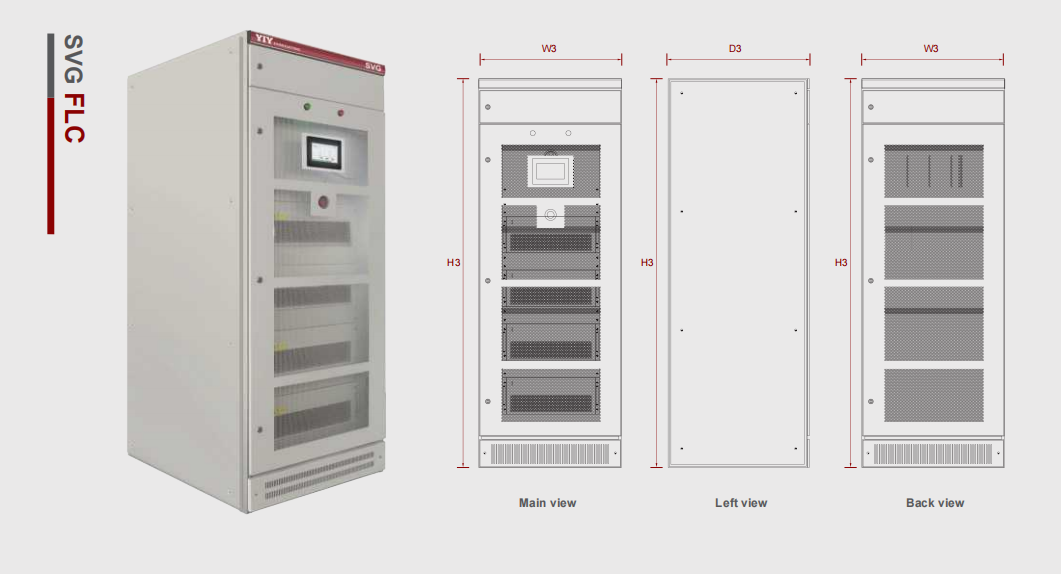

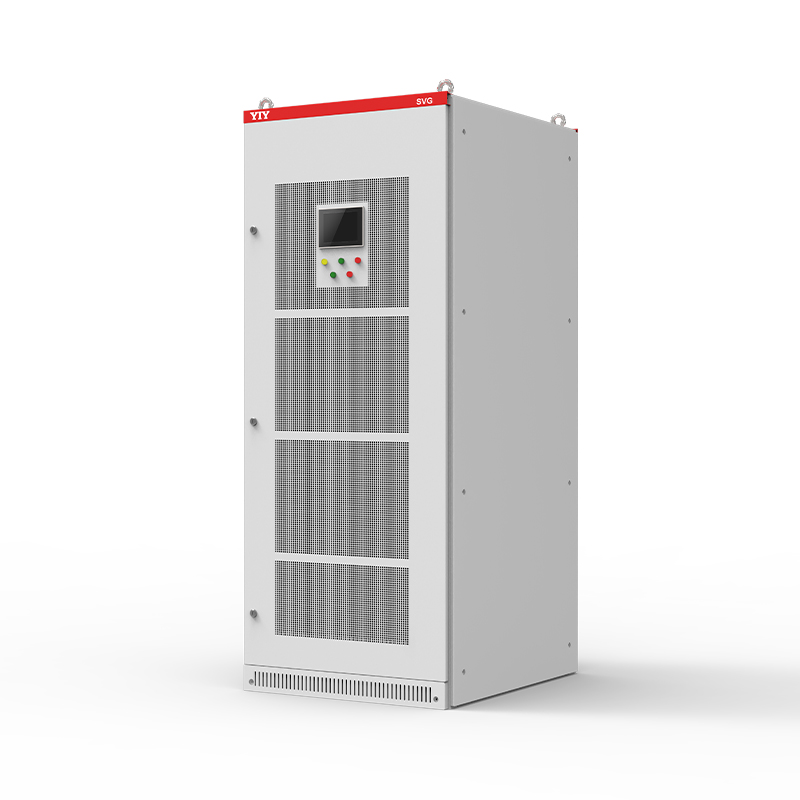

Cabinet System Specifications
| Capacity (kVar) | Voltage (V) | Dimensions (DxWxH mm) |
|---|---|---|
| 100 | 400 | 800x1000x2200 |
| 200 | 400 | 800x1000x2200 |
| 300 | 400 | 800x1000x2200 |
| 400 | 400 | 800x1000x2200 |
Compliance & Safety
Standards & Certifications
ISO 9000ISO 14001CEROHSULTUVFCC
