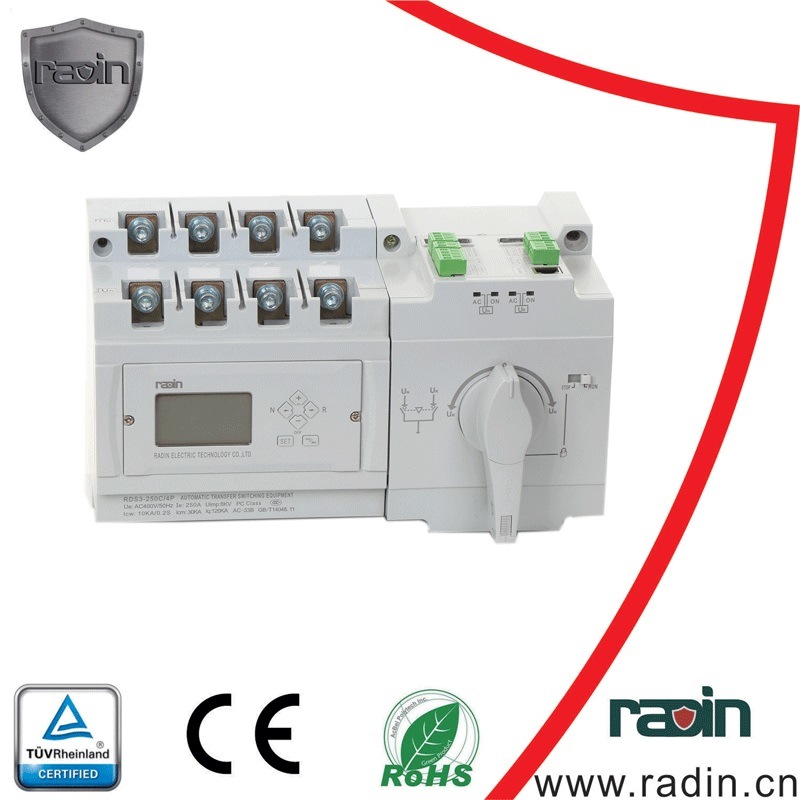

Automatic Transfer Switch with Intelligent Controller and LCD Display
This automatic transfer switch is equipped with an intelligent controller and LCD display for easy monitoring and configuration. It ensures a smooth transition between primary and backup power sources, minimizing downtime and protecting connected equipment.
Technical Specifications
Product Overview
Intelligent Automatic Transfer Switching Equipment
This Automatic Transfer Switch (ATS) is engineered for seamless power source management in critical systems. Featuring an integrated intelligent controller and an intuitive LCD display, it provides real-time monitoring and advanced control logic for efficient, reliable operation. Designed for durability and precision, this equipment ensures a smooth transition between primary and backup power, minimizing downtime and protecting sensitive connected infrastructure.
Technical Specifications
Rated Current (In)
250 A
Model RDS3-250C
630 A
Model RDS3-630C
- Rated Voltage (Ue)
- 400 V
- Rated Frequency
- 50 Hz
- Insulation Voltage (Ui)
- 500 V
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
Performance & Standards
Device Classification
PC Class
Short-Circuit Performance
| Metric | Value |
|---|---|
| Short-circuit withstand current (Icw) | 10kA/0.25s |
| Short-time withstand current (km) | 30kA |
| Short-circuit breaking capacity | 120kA |
- Standards
- GB/T14048.11AC-33BCERoHS
Features
Core Features
- Intelligent controller with LCD display
- Real-time system monitoring
- Adjustable configuration parameters
- Seamless power source switching
- Comprehensive system diagnostics
