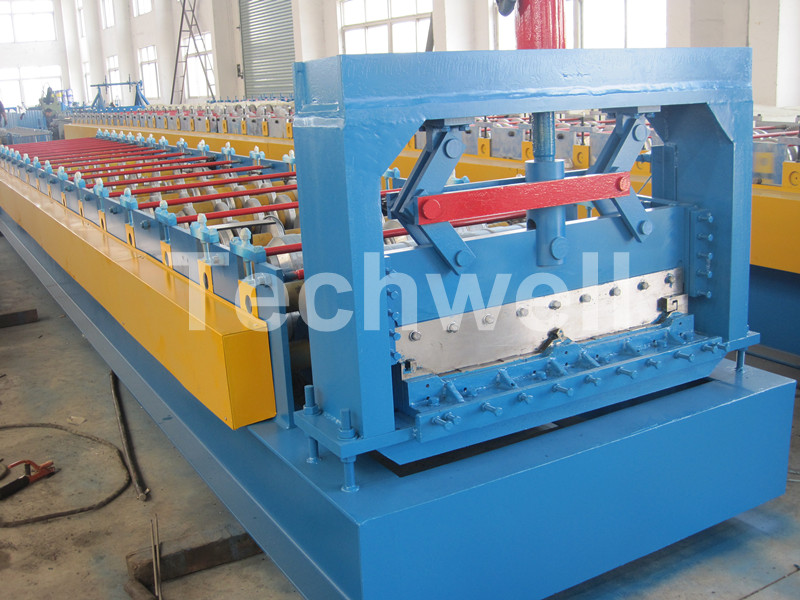

Standing Seam Roof Panel Roll Forming Machine
This machine is designed for manufacturing standing seam roof panels. It utilizes precision rollers and a cutting mechanism to produce panels of desired lengths for durable and weather-resistant roofing systems.
Technical Specifications
Overview
High-Efficiency Standing Seam Production
This standing seam roof panel roll forming machine is engineered for the high-volume production of durable roofing components. Featuring 16 forming stations and a powerful 5.5KW motor, it ensures precise shaping and consistent quality for metal thicknesses between 0.3mm and 0.8mm. The integrated hydraulic cutting system, equipped with high-durability Cr12Mov blades, allows for clean and accurate panel lengths to meet demanding project requirements.
Technical Specifications
Forming Speed
15 m/min
Maximum Speed
- Forming Stations
- 16
- Material Thickness Range
- 0.3 - 0.8 mm
- Motor Power
- 5.5 KW
- Drive System
- Chain transmission
Control & Cutting
Control System
Panasonic PLC
- Cutter Material
- Cr12Mov, quenched HRC58-62
- Cutting Method
- Hydraulic
Equipment Capacity
- Machine Weight
- 6 Ton
- Decoiler Weight Capacity
- 5 Ton
- Decoiler Type
- Manual
