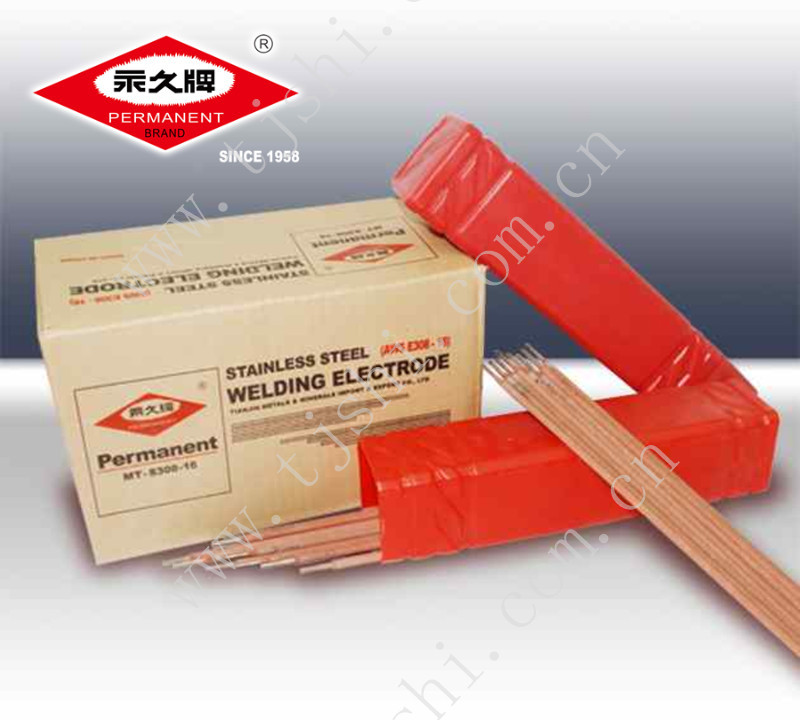

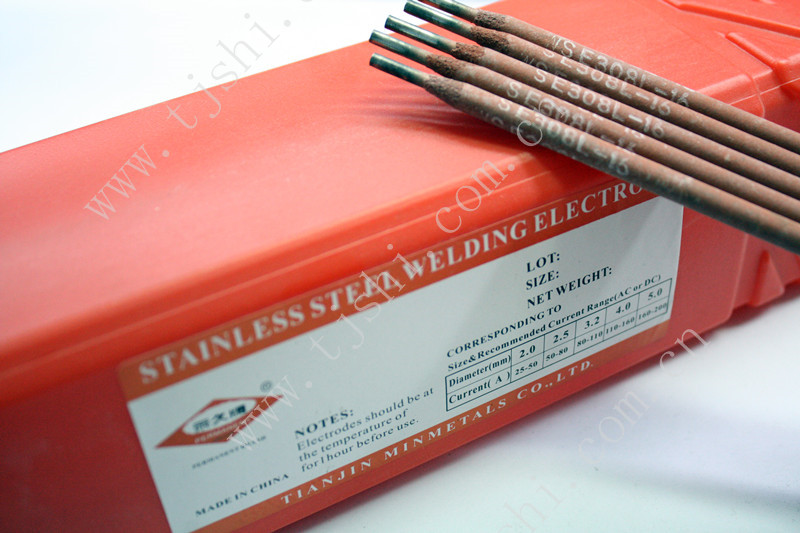

Stainless Steel Welding Electrode
This stainless steel welding electrode conforms to AWS standards E308-16, E309-16, and E316-16. It is suitable for welding in various positions with AC or DC current.

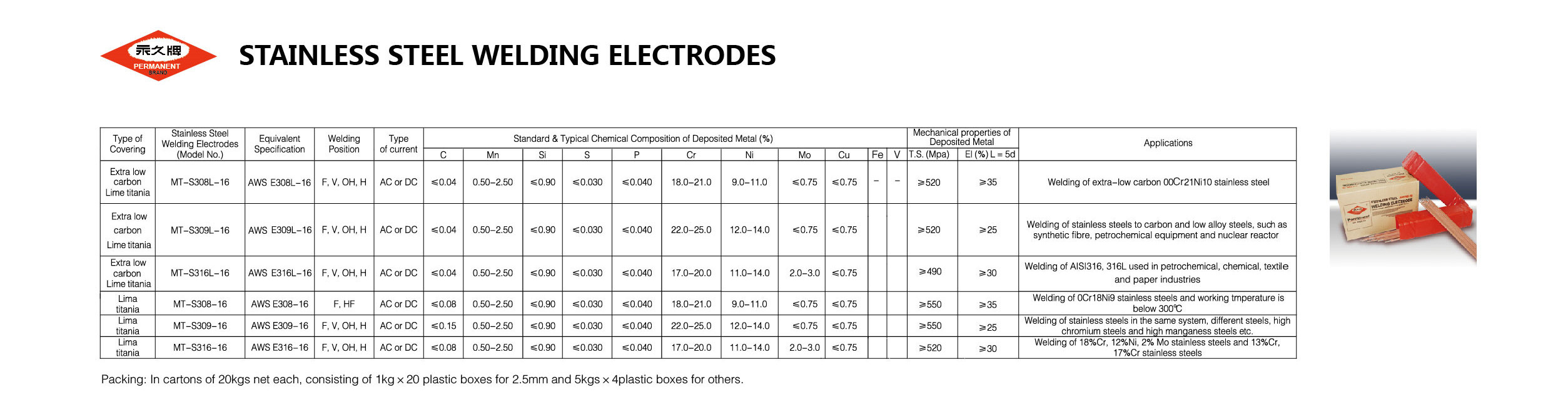

Technical Specifications
Overview
High-Performance Stainless Steel Welding Electrodes
These stainless steel welding electrodes are engineered for high-quality, durable welds across a wide range of industrial applications. Designed for versatility, they support both AC and DC welding currents and are compatible with various welding positions, including flat, vertical, overhead, and horizontal. With excellent corrosion resistance and precise chemical composition, these electrodes are ideal for critical industries such as petrochemical, chemical, textile, and paper manufacturing.
Standards & Compatibility
Welding Positions
Flat (F)Vertical (V)Overhead (OH)Horizontal (H)Horizontal-Flat (HF)
- AWS Standards
- E308-16E309-16E316-16E308L-16E309L-16E316L-16
Technical Specifications
Available Diameters
- 2.0mm
- 2.5mm
- 3.2mm
- 4.0mm
- 5.0mm
Recommended Current Range
| Diameter (mm) | Current Range (A) |
|---|---|
| 2.0 | 25-50 |
| 2.5 | 50-80 |
| 3.2 | 80-110 |
| 4.0 | 110-160 |
| 5.0 | 160-200 |
Electrode Covering
- Extra low carbon lime titania
- Lime titania
Logistics
- Packaging Details
- Cartons of 20kg net weight, consisting of 1kg x 20 plastic boxes for 2.5mm size and 5kg x 4 plastic boxes for other sizes.
- Pre-use Requirement
- Electrodes should be preheated to working temperature for one hour before use to ensure optimal performance.
