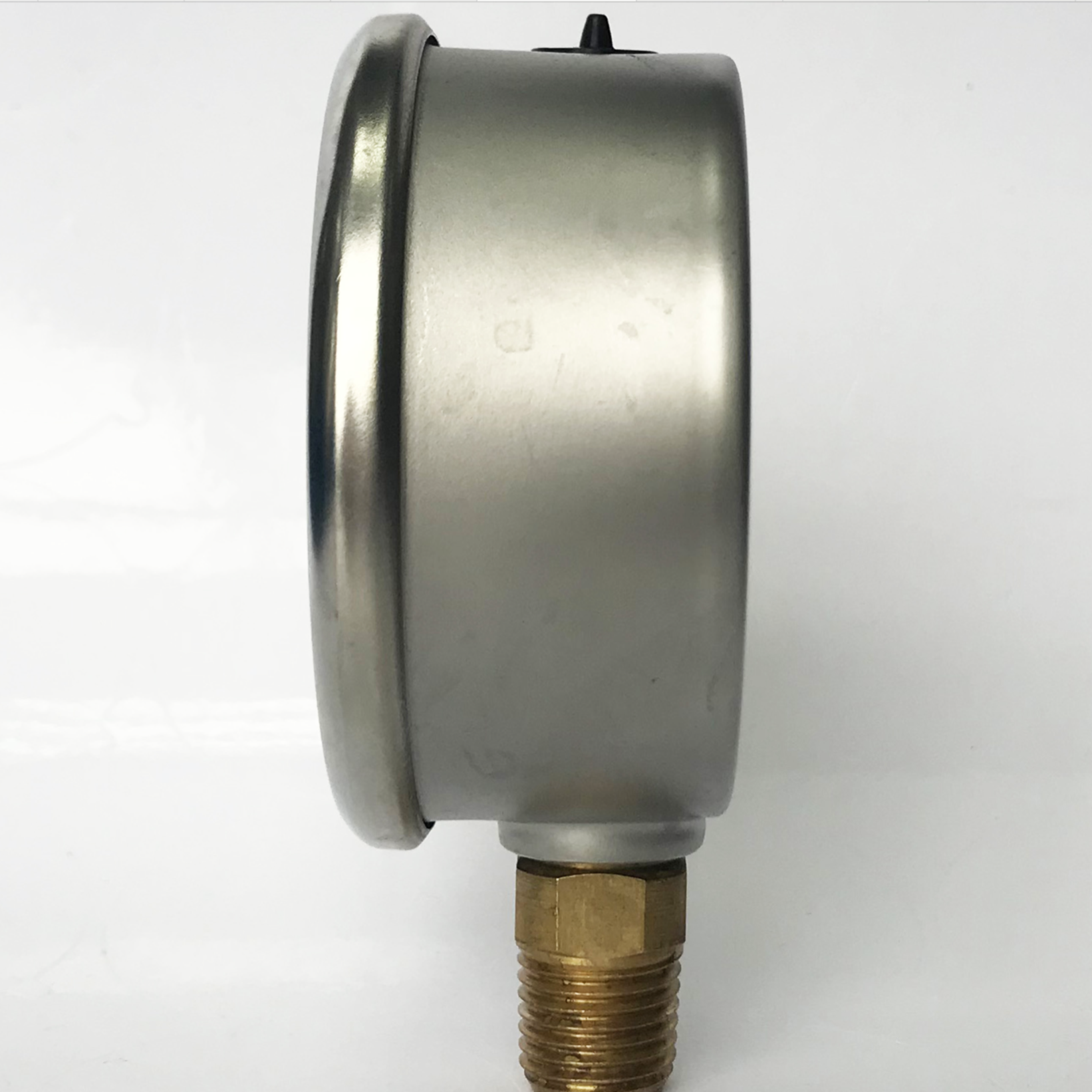

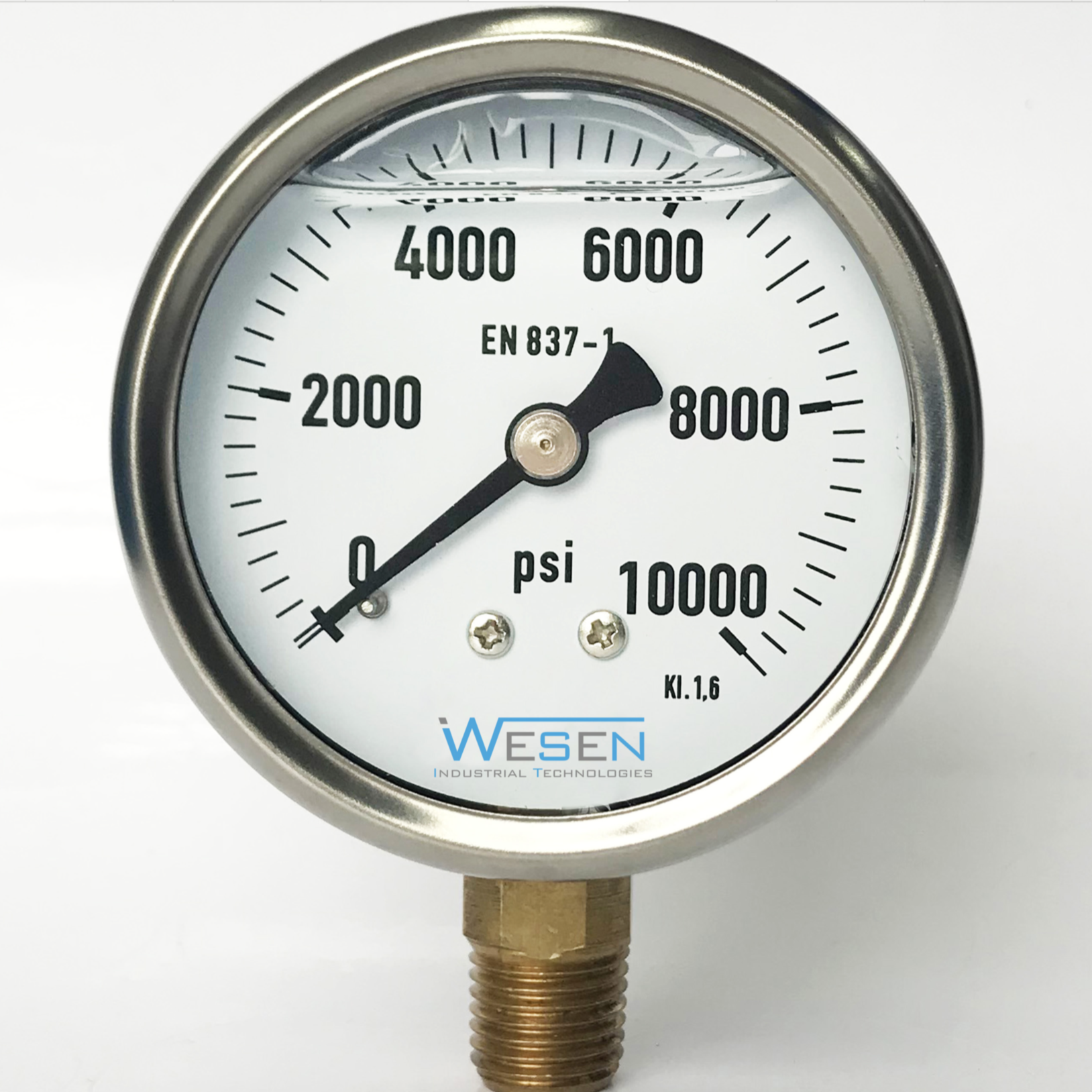

Stainless Steel Pressure Gauge with Brass Connection
This pressure gauge features a stainless steel construction for durability and corrosion resistance. It is designed for accurate pressure measurement in various industrial applications.
Technical Specifications
Overview
Industrial Pressure Monitoring
This stainless steel pressure gauge is engineered for reliable performance in demanding industrial environments. Featuring a durable SS304 or SS316 casing paired with a brass connection, it provides excellent corrosion resistance and secure installation. The versatile design supports multiple mounting options and dial sizes, making it an ideal solution for precise pressure measurement across a wide range of applications.
Technical Specifications
Case Material
SS304SS316
Window Options
- Glass
- Tempered glass
- Safety glass
- PC glass
- Acrylic
- Available Dial Sizes
- 1.5"2"2.5"3.5"4"5"6"8"10"
- Pressure Range
- -1 to 1000 bar
Construction & Design
Mounting Type
- Bottom
- Back
- Lower Back
- Connection Material
- Brass
- Thread Standards
- PTNPTG
Performance
Internal Components
| Component | Material |
|---|---|
| Movement | Brass |
| Bourdon Tube | Phosphor Bronze |
Filling Liquid
- Glycerin
- Silicone Oil
- Gauge Type
- Liquid filled / Dry
