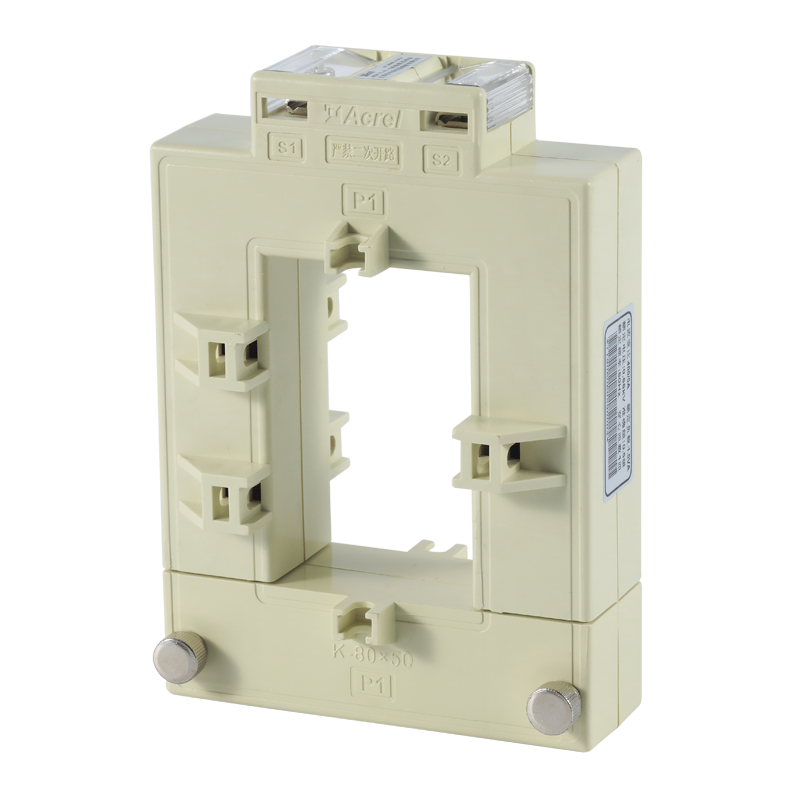

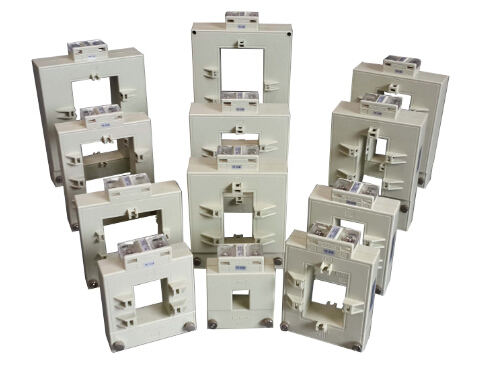

Split Core Current Transformer
This split core current transformer is designed for easy installation on existing electrical systems without disconnecting conductors. It provides accurate current measurement for monitoring and protection applications.
Technical Specifications
Overview
Efficiency in Retrofitting
The AKH-0.66/K series split core current transformer is engineered for seamless integration into urban and rural power grid reconstruction projects. Its innovative split-core design allows for installation without the need to disconnect primary busbars, enabling live operation and significantly reducing downtime. This solution optimizes resource allocation by eliminating the need for complex shutdowns during installation.
Technical Specifications
Rated Secondary Current
- 1
- 5
Electrical Strength
3,000 V
Voltage
50 Hz
Frequency
- Rated Operating Voltage
- 0.66 kV
- Rated Primary Current Range
- 20-6300A
Applications & Compatibility
- Primary Applications
- Power Grid ReconstructionRelay ProtectionMeasuring EquipmentMetering EquipmentRetrofitting
Installation Features
Key Installation Benefits
Live InstallationNon-IntrusiveNo Busbar RemovalCost-Effective
