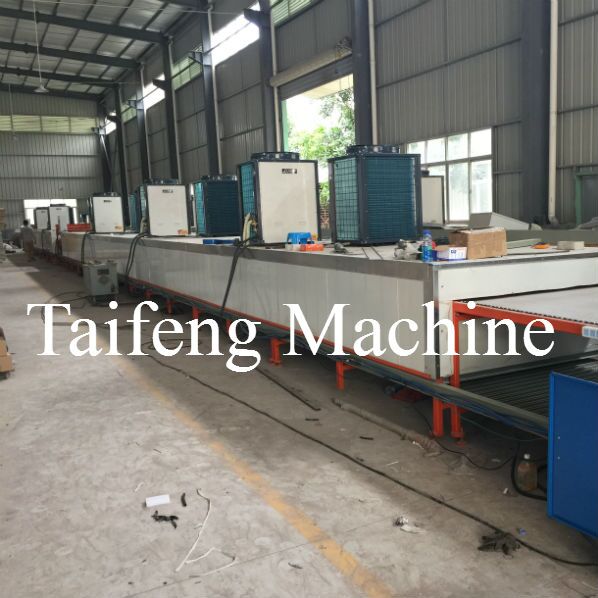

Soft Ceramic Tile Production Line
This equipment produces diverse soft ceramic tiles with continuous operation, increasing production efficiency over traditional methods. The production line can be customized to split, rewind, cut different specifications and shapes, and automatically package tiles.
Technical Specifications
Overview
Advanced Soft Ceramic Tile Production
This automated production line is designed for the continuous, high-efficiency manufacturing of soft ceramic tiles and brick building materials. By moving away from traditional batch processes, this system enables mass production with customizable options for splitting, rewinding, and cutting into various shapes. The facility is engineered to handle the complete manufacturing cycle, from raw material stirring to final packaging, ensuring consistent output for large-scale construction needs.
Technical Specifications
- Total Power Consumption
- 150 kw
- Daily Production Capacity
- 2200 m²/24hours
- Labor Requirements
- 6-8 people per shift
- Facility Flow Length
- 47m70m80m
Process Workflow
Manufacturing Process Flow
- Stir system
- Stone-like coating / Multi-color paint coating
- Three-dimensional drying system
- Rewinding system
- Cutting dedicated device
Technological Process Stages
| Stage | Action |
|---|---|
| Initial | Press coating |
| Intermediate | Dehydration |
| Finishing | Cutting & Packaging |
