Smart Keyed Padlock with Task Management
This smart passive lock has the appearance of a mechanical lock but contains a standard smart lock cylinder. It is a high-security lock with information task management capabilities.
Technical Specifications
Overview
Smart Passive Lock Solution
This smart passive padlock combines the familiar form factor of a traditional mechanical lock with an advanced embedded smart cylinder. Designed for high-security environments, it features robust task management capabilities, allowing for scheduling, tracking, and detailed audit trails. The system operates without wiring, offering a maintenance-free security solution that integrates seamlessly into existing logistics and facility management workflows.

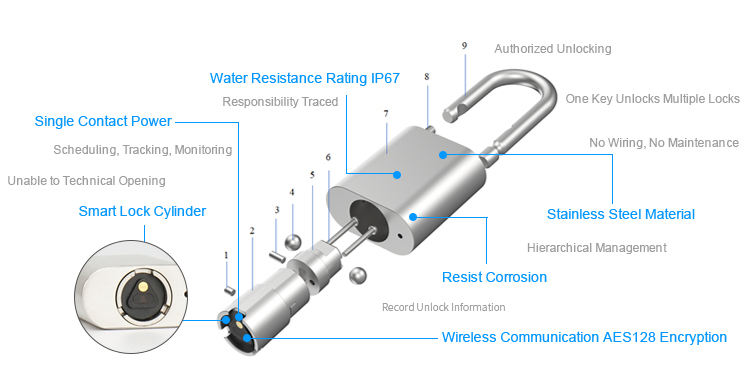

Technical Specifications
Water Resistance Rating
IP67
- Construction Material
- Stainless Steel
- Security Encryption
- AES128
- Power System
- Single Contact Power
Dimensions

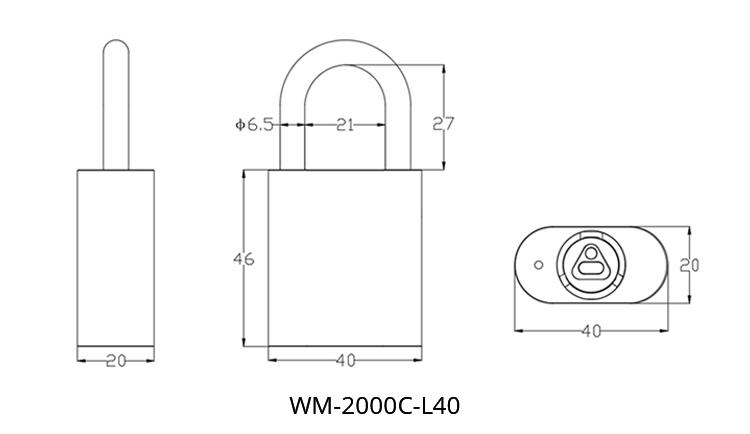

Lock Dimensions (Model WM-2000C-L40)
| Component | Dimension |
|---|---|
| Body Width | 40mm |
| Body Depth | 20mm |
| Body Height | 46mm |
| Shackle Diameter | 6.5mm |
| Shackle Internal Width | 21mm |
| Shackle Height (from body) | 27mm |
Features
Key Capabilities
- Authorized Unlocking
- One Key Unlocks Multiple Locks
- Hierarchical Management
- Responsibility Tracing
- Tamper Resistance (Anti-Technical Opening)
- Audit Trail Recording
- No Wiring Required
Applications
- Common Use Cases
- Logistics SupervisionRailway ContainersAirport LogisticsPower CabinetsIndustrial CabinetsCommunication NetworksVending MachinesATM MachinesEmergency Exits
