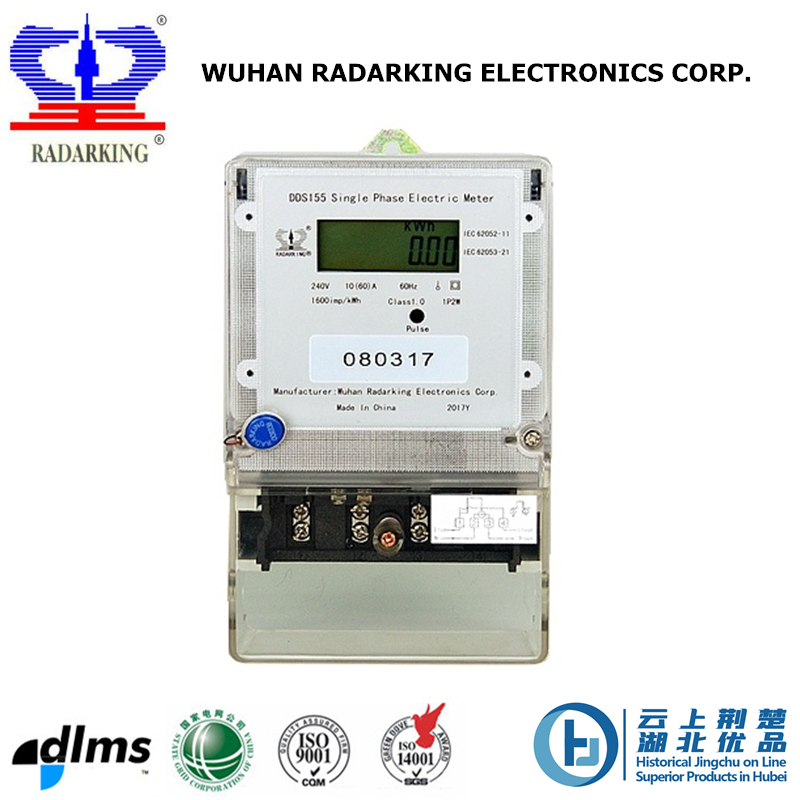

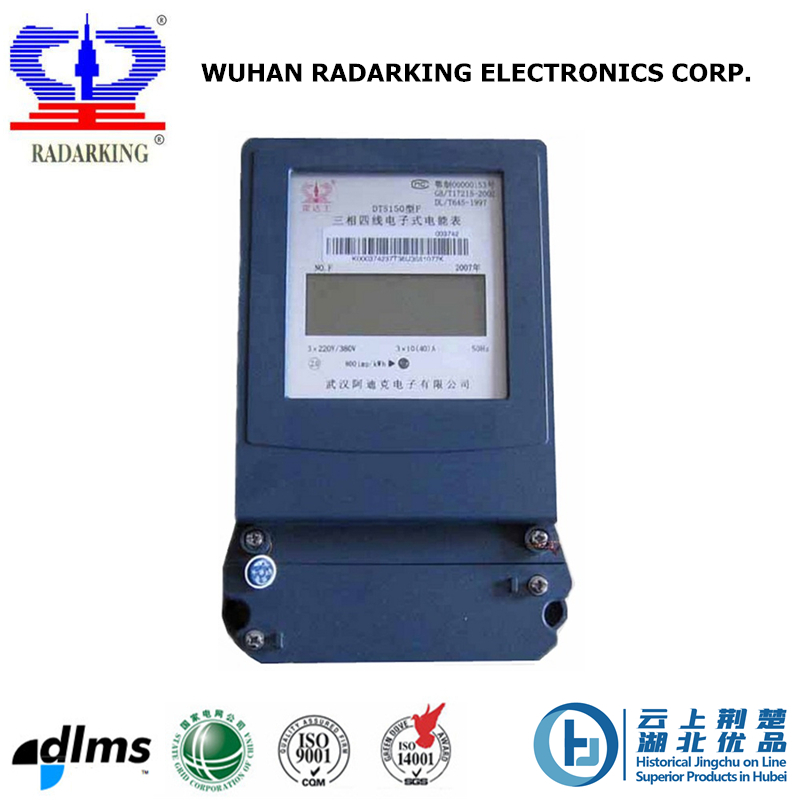

Single/Three Phase Electricity Meter
These electricity meters are designed to measure electrical energy consumption in both single and three-phase systems. They provide accurate readings and comply with industry standards for reliable energy monitoring.
Technical Specifications
Product Overview
Intelligent Digital Metering
This advanced digital electric meter is designed for precise energy management in residential, commercial, and enterprise settings. Engineered for reliability, it features high-accuracy measurement of active power with robust protection against electricity theft and electromagnetic disturbances. Its sealed, flame-retardant design ensures long-term durability and performance even in fluctuating power conditions.
Technical Specifications
Accuracy Class
0.5S1.02.0
Performance Metrics
0.8 W/phase
Power Consumption
0.5 s/Day
Clock Accuracy
10 Years
Data Storage
Supported Current Ranges
- 1.5(6)A
- 5(20)A
- 5(30)A
- 5(40)A
- 5(60)A
- 10(40)A
- 10(60)A
- 15(60)A
- 20(80)A
- Compliance Standards
- IEC 62053-21:2003DL/T645-1997DL/T645-2007
Installation & Configuration
Installation Types
- BS Mounting
- Rail Mounting
Communication Options
- Infrared
- RS485
- Carrier Communication Module
