Single Phase LoRaWAN Electric Meter

This single-phase electric meter accurately measures electrical energy consumption. It features LoRaWAN connectivity for remote data transmission and monitoring.

Request a Quote Download PDFPDF

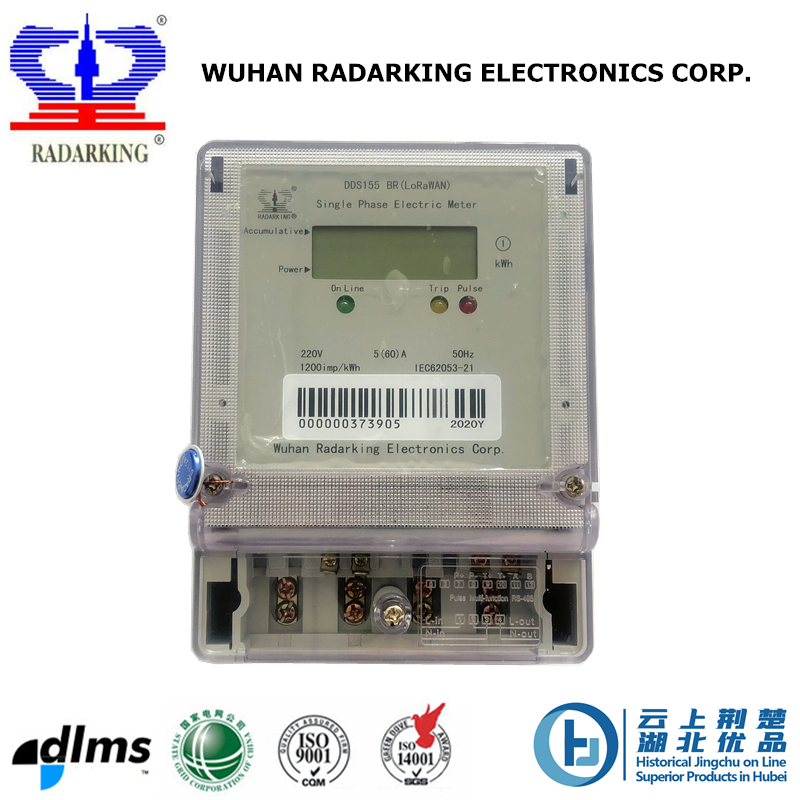

Single Phase LoRaWAN Smart Electric Meter - Image 1

Technical Specifications

Product Overview

Smart Energy Measurement

The DDS155 series is a high-accuracy, single-phase digitized energy meter utilizing advanced SOC technology. It provides comprehensive energy management through LoRaWAN wireless connectivity, allowing for remote meter reading and load control. Designed for stability and low power consumption, it is an ideal solution for monitoring electrical usage in residential, rural, and industrial environments.

Technical Specifications

Rated Voltage: 220 V
Current Rating: 5(60)A
Accuracy Class: Class 1.0
Frequency: 50/60 Hz
Pulse Constant: 1200 imp/kWh
Overall Power Consumption: 1 W

Physical & Environmental

Dimensions: 154mm × 110mm × 60mm
Operating Temperature: -25°C to +55°C
Weight: 0.5 kg

Key Features

Protocol Compliance

DL/T645-2007
GB/T17215.321-2008
IEC62053-21

Advanced Capabilities: LoRaWAN EnabledRemote ON/OFF ControlAnti-TamperOverload ControlRemote Meter Reading
