Single Phase Energy Meter 10(40)A 230V
This single-phase energy meter accurately measures electrical energy consumption. It operates at 230V with a rated current of 10A (40A maximum) and has an impulse constant of 1600imp/kWh.
Technical Specifications
Product Overview
Professional Single-Phase Energy Monitoring

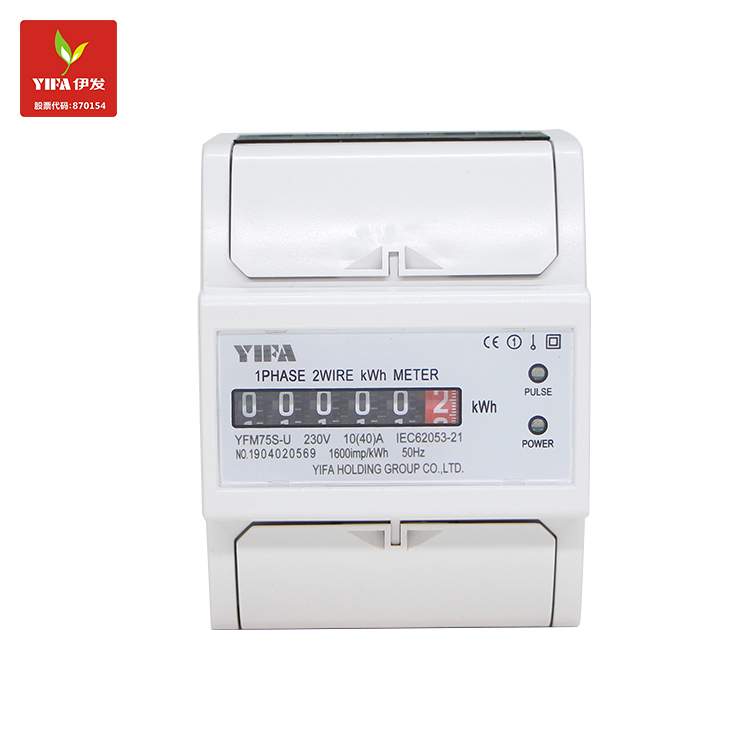

The YFM75S-U series is a robust single-phase, two-wire electronic energy meter engineered for precise consumption tracking in residential and light commercial environments. It features a reliable 1600imp/kWh pulse output for accurate data logging and adheres to strict international standards for power measurement. Designed for durability and ease of integration, it serves as a dependable solution for electrical energy monitoring applications.
Technical Specifications
Key Performance Indicators
230 V
Rated Voltage
1,600 imp/kWh
Pulse Constant
50 Hz
Frequency
System Specifications
| Property | Specification |
|---|---|
| Phase | Single Phase |
| Wiring | Two Wire |
| Mounting | DIN Rail |
- Current Range
- 10(40)A
- Standards
- IEC62053-21
