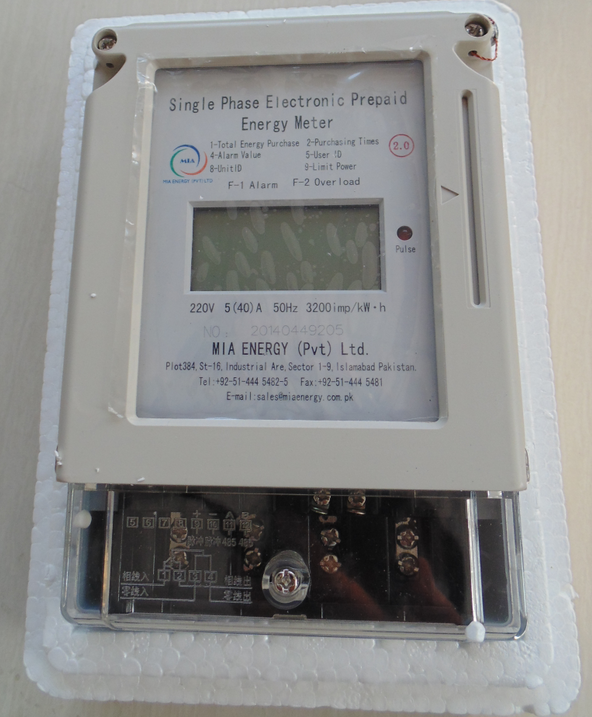

Single Phase Electronic Energy Meter
This single phase electronic energy meter is designed for residential and light commercial applications. It accurately measures electrical energy consumption with overload and alarm indicators.
Technical Specifications
Product Overview
Smart Prepayment Metering Solution
This single-phase electronic energy meter is designed for precise electricity consumption measurement in residential and light commercial environments. It features an advanced prepayment system that allows users to purchase energy upfront, ensuring effective power management and consumption control. With integrated security encryption and automatic overload protection, this device offers both reliability and operational efficiency for modern utility management.
Technical Specifications
Accuracy Class
1.02.0
- Phase
- Single Phase
- Measuring Range
- 80 A
- Output Voltage
- 150-250V AC
- Operating Temperature
- -25 to 55 °C
Dimensions
Dimensions
115 mm
Width
174 mm
Height
66 mm
Depth
Key Features
Core Functionalities
- Prepayment-based energy consumption
- Automatic power cutoff upon energy depletion
- Dual display: Digital nixie tube for remaining credit and mechanical counter for total consumption
- Configurable low-energy alarm (default 10kW.h)
- Overload monitoring with automatic power supply resumption
- Advanced encryption algorithm for data security
- High-reliability magnetic latching relay
- IC Card Read Cycles
- 1000000
