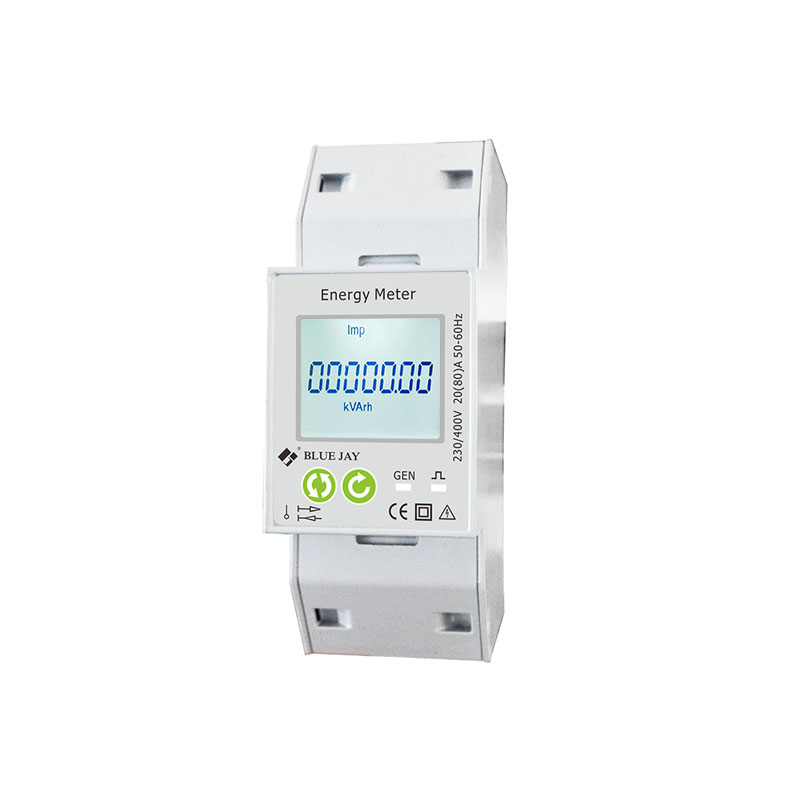

Single Phase DIN Rail Modbus Electric Meter with LCD
This single-phase energy meter mounts on a DIN rail for easy installation. It features an LCD display for clear readings and Modbus communication for data transfer.
Technical Specifications
Product Overview
Advanced Single-Phase Energy Monitoring
The 19D series is a versatile DIN-rail mounted energy meter designed for high-precision residential and industrial energy management. It features bi-directional metering, making it an ideal solution for solar energy applications and smart energy projects. With integrated Modbus-RTU communication and a tamper-proof design, this meter ensures reliable data acquisition and revenue-grade accuracy.
Key Features
Performance Highlights
80 A
Max Direct Current
0.5 %
Accuracy Class
1,600 imp/kWh
Pulse Constant
Measurement & Input
- Rated Voltage
- 230 V
- Input Voltage Range
- 10-400Vac direct input
- System Frequency
- 50Hz / 60Hz compatible
- Current Range
- 0.04A (start) to 80A (max)
Communication & Integration
Communication Protocol
Modbus-RTURS-485DL/T645-2007
- Wireless Transmission
- 4G5GLoRa
Physical & Installation
- Mounting Type
- 35mm DIN-rail
- Module Width
- 2 modules (35mm)
- Net Weight
- 130 g
Environmental Conditions
- Operating Temperature
- -25°C to 55°C
- Operating Humidity
- 0-90% RH (non-condensing)
Compliance & Standards
International Standards
- IEC 62053-21 Class 1.0
- IEC 62053-22 Class 0.5
- CE Certified
Applications
- Target Applications
- Residential MeteringSolar EnergyPublic FacilitiesIndustrial Monitoring
Technical Specifications
Isolation & Safety
| Test Parameter | Rating |
|---|---|
| Withstand Voltage | AC 2KV for 1 minute |
| Surge Test | 6KV (1.2us waveform) |
| Isolation Resistance | >5MΩ |
