Overview
Advanced Energy Metering Solutions
The N8DM series offers advanced single and three-phase multifunction DIN rail meters designed for precise energy measurement in diverse electrical environments. These meters support comprehensive monitoring of voltage, current, power, and active or reactive energy, providing essential data for both imported and exported energy. With a user-friendly industrial design featuring large LCD displays and touch-sensitive controls, they ensure ease of operation while maintaining secure configuration through password protection.
Technical Specifications
- Supported Configurations
- 1P2W3P3W3P4W
- Maximum Current
- 100 A
- Communication Interfaces
- Pulse OutputRS485 Modbus RTU
- Max Demand Integration Period
- 60 min
Standards and Certification
Compliance
EU Directive 2014/32/EUEN50470-1/33K6
- Traceable Number
- 0120/SGS0430
Device Models
Model Specifications
| Model Type | Voltage | Current Range |
|---|---|---|

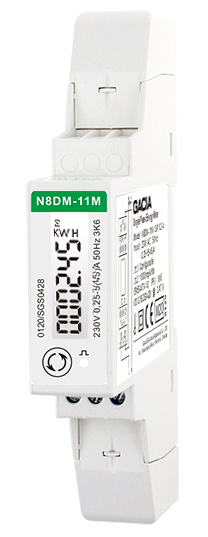

| Single-Phase (Low) | 230V | 0.25-3(45)A |

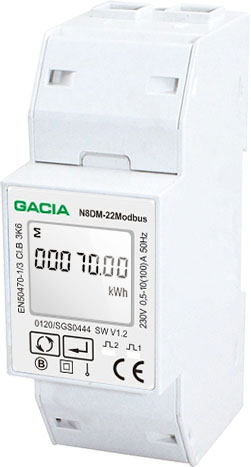

| Single-Phase (High) | 230V | 0.5-10(100)A |
| Three-Phase | 3x230/400V | 0.5-10(100)A |
