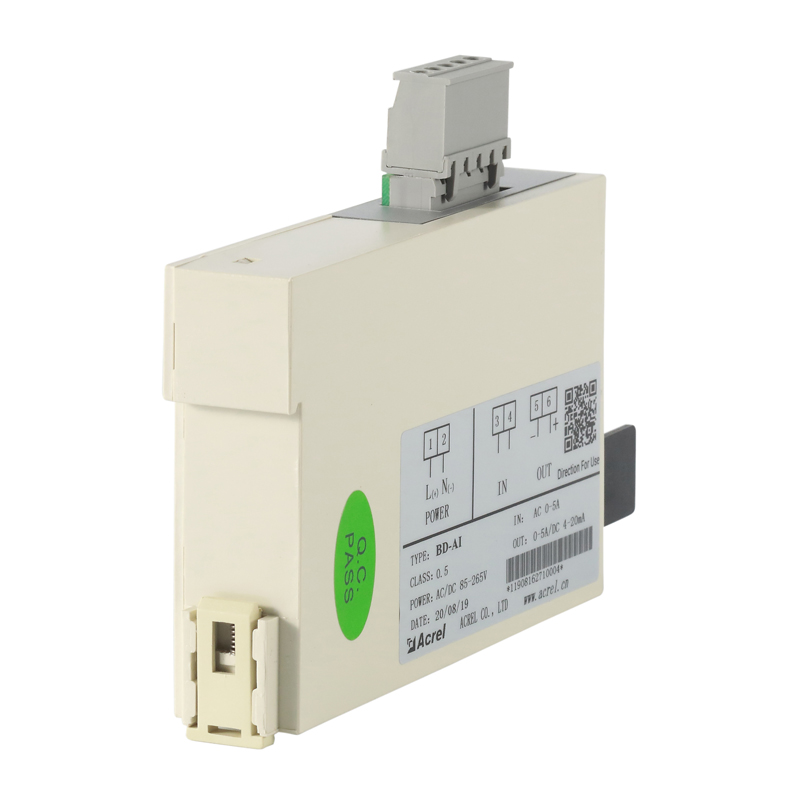

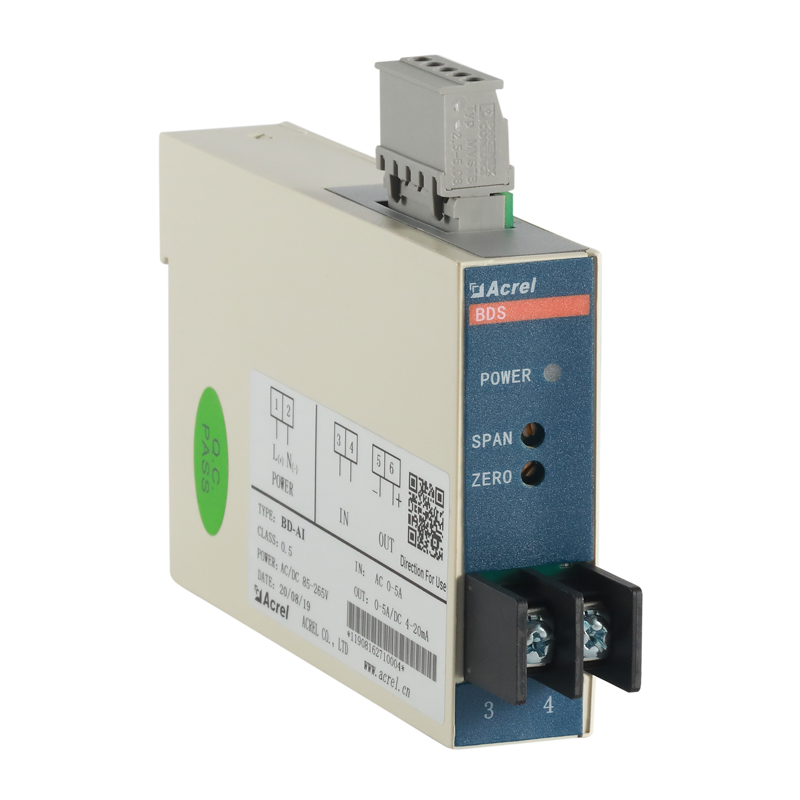

Single-Phase AC Current Transducer
This single-phase AC current transducer converts AC current signals into standard analog signals. It provides reliable current measurement for industrial applications, featuring high isolation and low power consumption.
Technical Specifications
Overview
BD Series Current Transducer
The BD series current transducer is engineered to isolate and convert electrical parameters such as current, voltage, frequency, power, and power factor within power grid systems into precise DC analog or digital signals. Designed for reliability and accuracy, it features a class 0.5 rating and supports a wide range of power inputs. This device is ideal for monitoring and controlling electrical systems, including motor control and power distribution applications.
Technical Specifications
Accuracy Class
Class 0.5
Analog Output Options
- 0-5V
- 0-10V
- 0-20mA
- 4-20mA
- Input Signal
- AC Current
- Overload Capacity
- 1.2 x rated
Compliance & Standards
- Compliance Standards
- GB/T13850-1998IEC-688
Device Features
Key Features
- High isolation
- Low power consumption
- Span and zero adjustment for calibration
- Easy installation
