Technical Specifications

Overview

Industrial Roll Forming Solution

This fully automatic roll forming machine is engineered for the high-precision production of shutter door profiles. It features a robust, industrial-grade construction designed for consistent output, minimal material waste, and long-term reliability. With an intuitive computer-controlled interface supporting multiple languages, it offers both manual and automatic operation modes to streamline manufacturing workflows.

Shutter door roll forming machine in factory setting

Technical Specifications

Suitable Processing Materials: Color steel plateGalvanized sheetAluminum coils
Feeding Material Thickness: 0.8 mm
Feeding Material Width: 100-160mm
Roller Stations: 10-18 rows

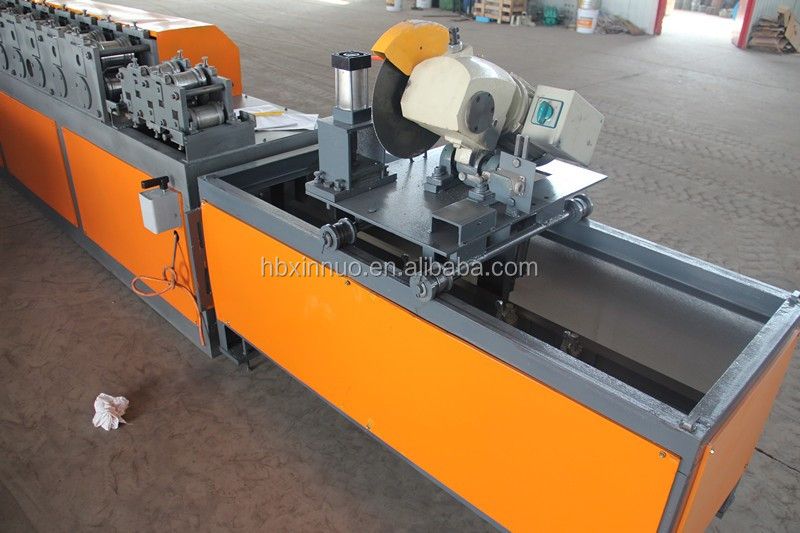

Detailed view of the roll forming machine components

Performance Metrics

Productivity

20 m/min

Maximum Speed

Power Supply: 380V, 3-Phase, 50Hz
Hydraulic System Power: 22 kW

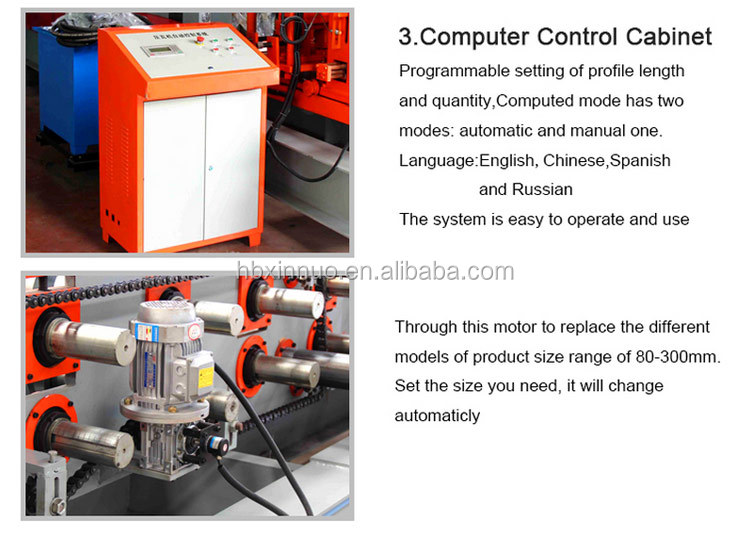

Control System

Supported Languages

English
Chinese
Spanish
Russian

Operation Modes

AutomaticManual

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

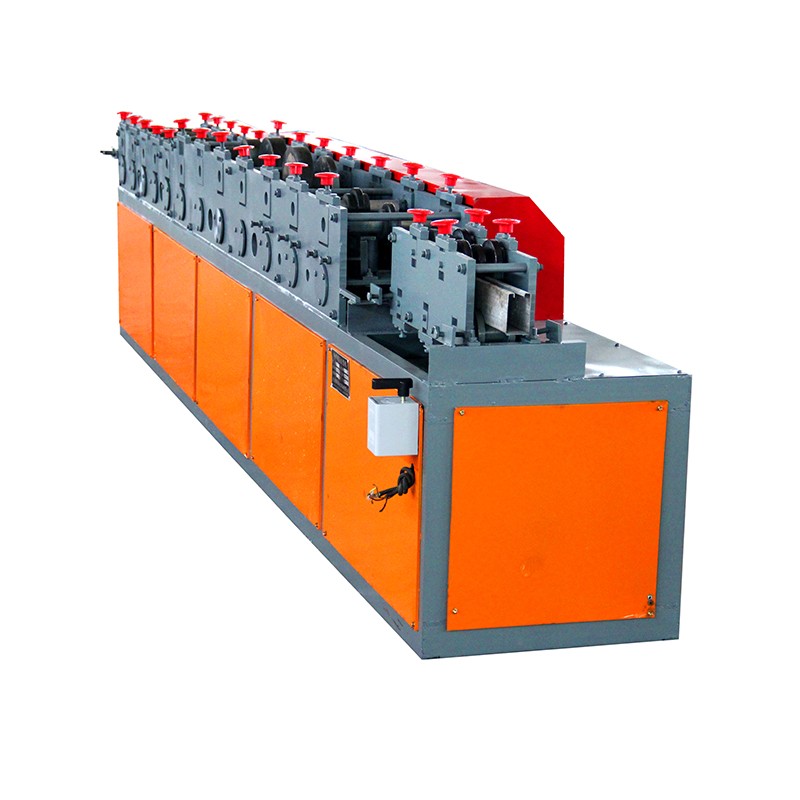

Shutter Door Roll Forming Machine

This shutter door roll forming machine shapes metal strips into the profiles required for shutter doors. It uses multiple rollers to gradually form the metal into the desired shape.

Request a Quote Download PDFPDF
